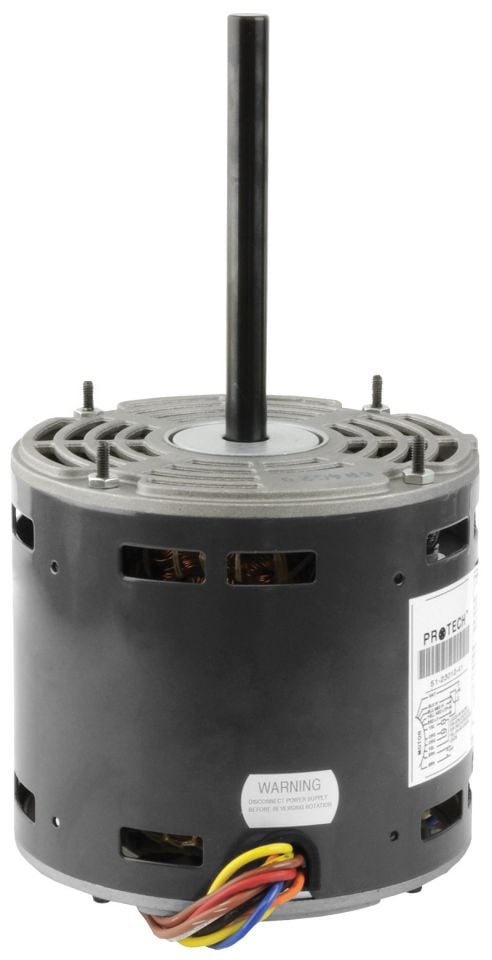

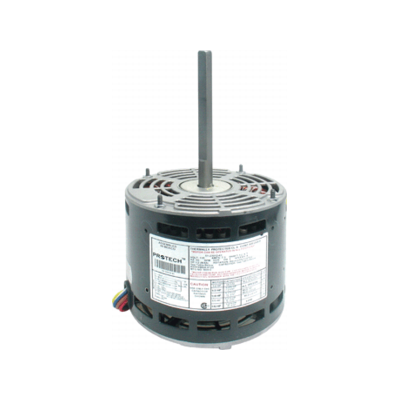

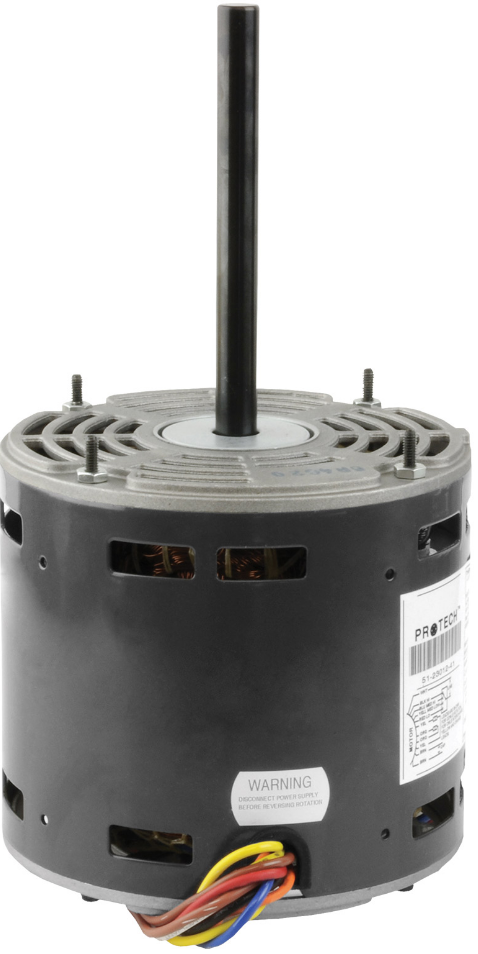

RUUD 51-23012-41 TripSaver Indoor Blower Motor 1/6 - 1/2 HP

Product Description

The RUUD 51-23012-41 is a reliable direct drive blower motor suitable for indoor applications. It functions at one hundred twenty volts and sixty hertz, delivering between one-sixth to one-half horsepower. This motor provides four speed settings and has reversible rotation capabilities.

• Direct drive blower motor.
• Operates at 120V with four speed settings.
• Features reversible rotation.

Product Highlights

This blower motor is ideal for various indoor applications, ensuring efficient air movement and consistent performance.

Product Information

Standard Information

• MPN: 51-23012-41
• Brand: RUUD

Technical Specifications

• Product Type: Furnace Motor
• Drive Type: Direct
• Input Voltage: 120V
• Frequency: 60Hz
• Power: 1/6 - 1/2 hp
• Speed: 4
• RPM: 1075
• RPM-Range: 901 to 1200
• Rotation: Reversible
• Diameter: 5-5/8 inches
• Bearings: Sleeve
• Capacitor: 10mfd/370V
• Phase: Single
• Amperage: 7.3A
• Series-Brand: TRIPSAVER
• Height (Approximate): 7.20 inches
• Length (Approximate): 13.20 inches
• Weight (Approximate): 14.60 pounds
• Width (Approximate): 7.25 inches
