Product Description

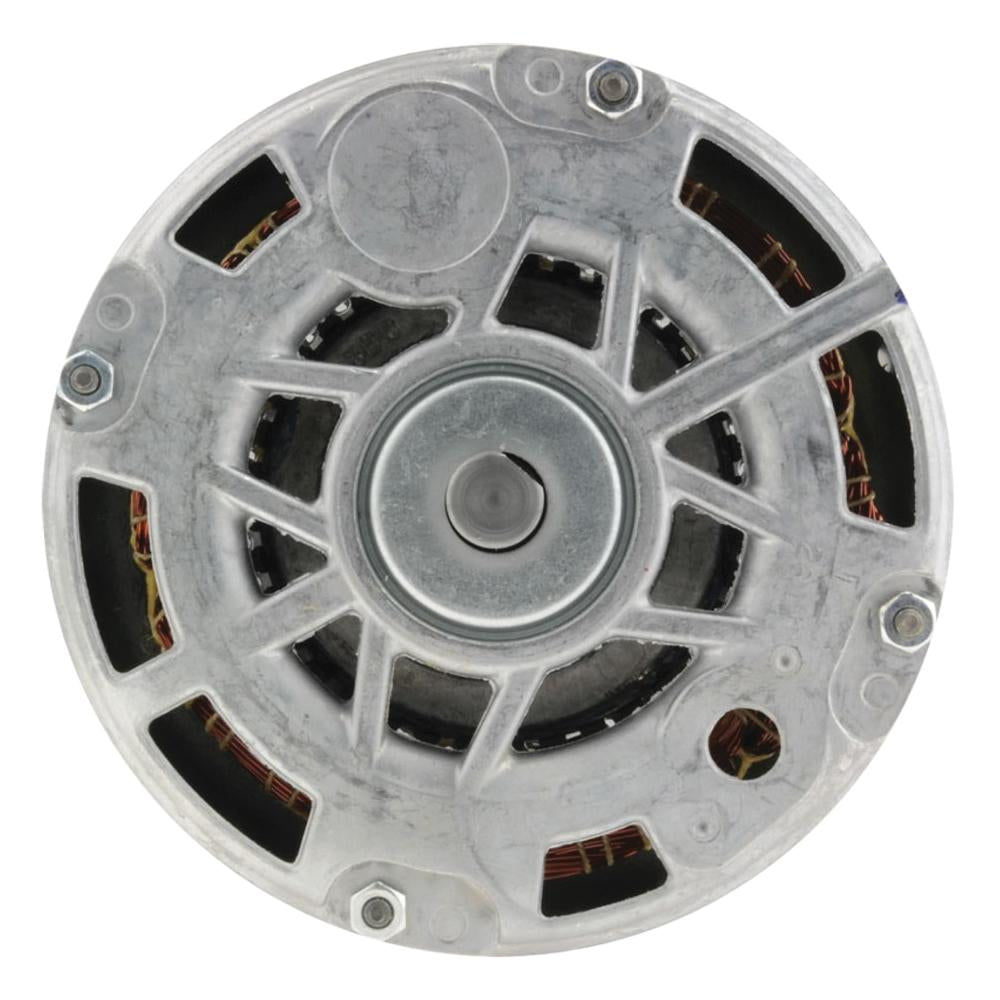

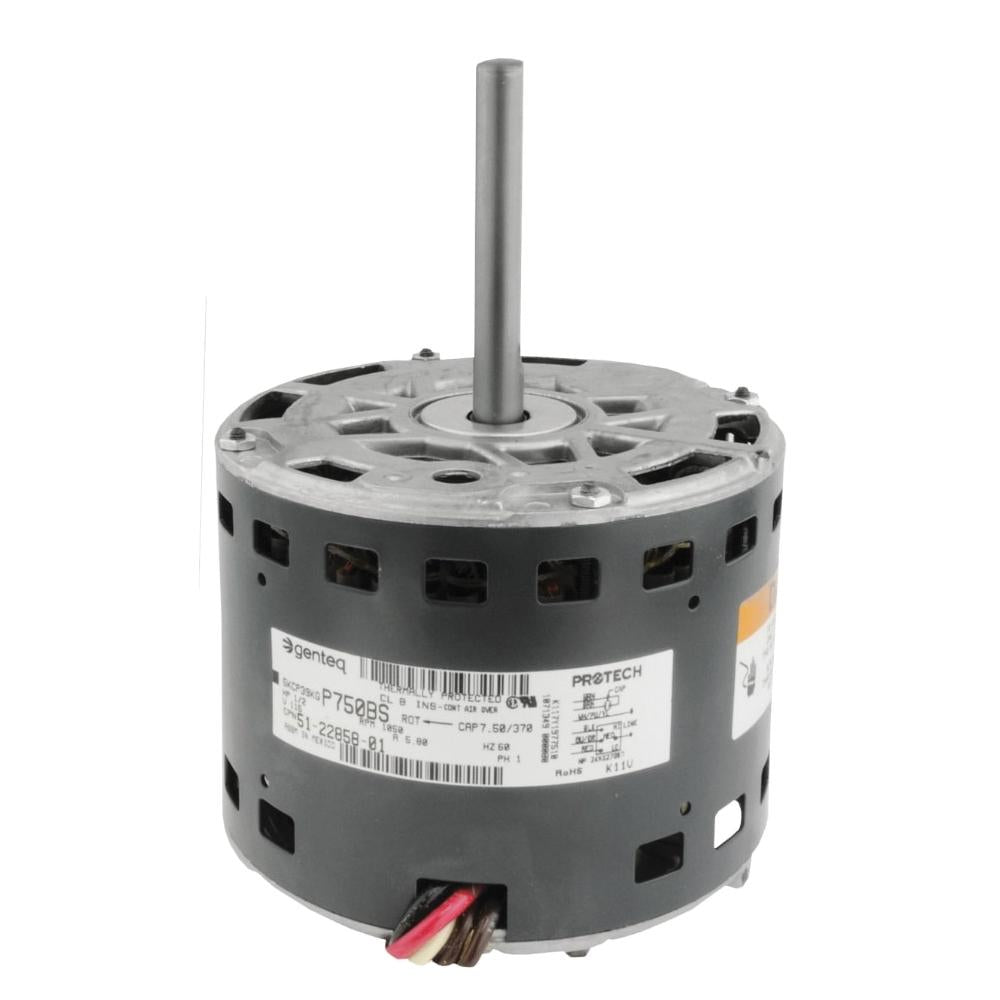

The RUUD 51-22858-01 is a blower motor designed for HVAC applications. This motor operates at one hundred twenty volts and sixty hertz with a single-phase power supply. It incorporates a forty-eight frame and has a half-inch diameter shaft. The motor operates with a direct drive and offers three-speed operation, reaching a maximum of one thousand seventy-five RPM. The motor's rotation is counter-clockwise as viewed from the shaft end.
- Operates at 120V, 60Hz, single-phase
- Features 3-speed operation up to 1075 RPM
- Direct drive with counter-clockwise rotation
Product Highlights
This blower motor is suitable for various HVAC systems and is built for reliability and efficiency. It is essential for air circulation in heating and cooling systems, ensuring optimal performance in residential and commercial environments.
Product Information
Standard Information
-
Brand: RUUD
-
MPN: 51-22858-01
Technical Specifications
-
Application: Blower
-
Bearing Type: Sleeve
-
Drive Type: Direct Drive
-
Full Load Amperage at 120V: 5.80 A
-
Locked Rotor Amperage at 120V: 12.40 A
-
Frame Size: 48
-
Frequency: 60 Hz
-
High Speed: 1075 RPM
-
Horsepower: 1/2 hp
-
Input Voltage: 120 V
-
Shaft Length: 3 in
-
Motor Body Diameter: 5-5/8 in
-
Motor Body Length: 4-3/4 in
-
Mounting Type: Shell-band | Shell-screw
-
Number of Phases: 1
-
Number of Speeds: 3
-
Overall Motor Length: 8-1/4 in
-
Overall Shaft Length: 3-1/2 in
-
Rotation Direction (OSE): CCW
-
Run Capacitor: 7.5mfd/370V
-
Shaft Diameter: 1/2 in
-
Phase: Single
-
Speed Rating: 1075 RPM
-
Amperage Rating: 12.4 A
-
Overall Height: 8-1/4 in
-
Overall Width: 5-5/8 in
-
Shaft Size: 1/2 in Dia x 3-1/2 in L
-
Approximate Height (inches): 6.95
-
Approximate Length (inches): 14.55
-
Approximate Weight (pounds): 12.85
-
Approximate Width (inches): 7.20
