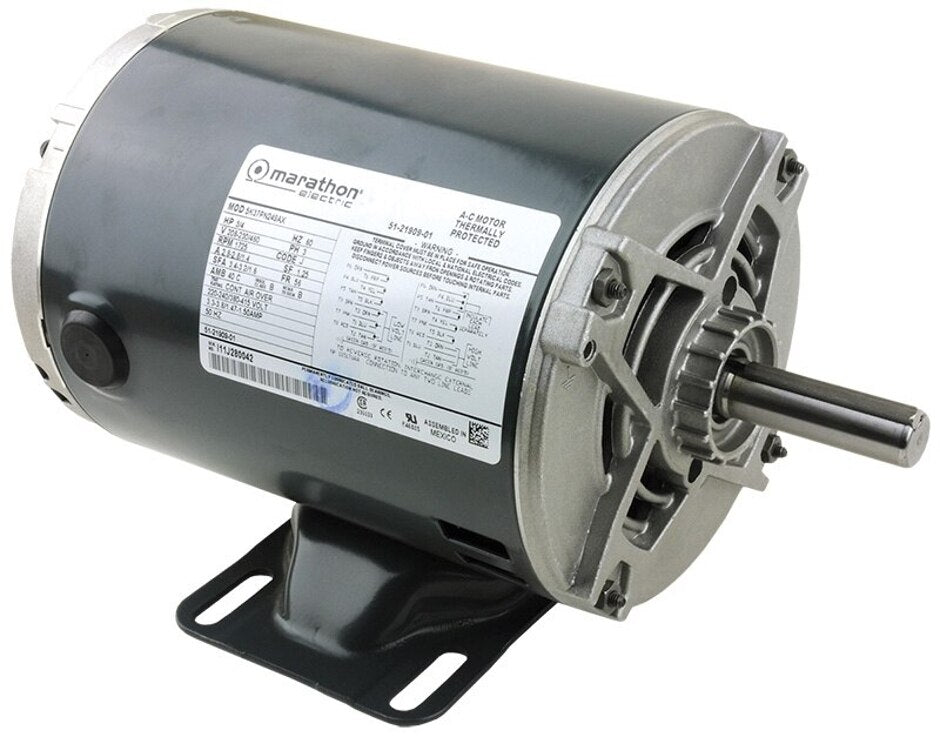

RUUD 51-21909-01 Blower Motor 3/4 hp 208/230/460 VAC

Product Description

The RUUD 51-21909-01 is a blower motor that works with 208/230/460 VAC power. It delivers 3/4 horsepower and operates at a speed of 1725 RPM. This motor is designed for platform mounting and is compatible with belt drive systems.

• Operates at 1725 RPM
• Designed for platform mounting
• Compatible with 208/230/460 VAC power systems

Product Highlights

This motor is suitable for various applications where reliable airflow is necessary. It can handle multiple electrical phases, making it versatile for different setups.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-21909-01

Technical Specifications

• Type: Blower
• Horsepower: 3/4 hp
• Input Voltage: 208/230/460 VAC
• Frequency: 60 Hz
• Phase: 3 ph
• Speed: 1725 RPM
• Rotation Direction: Counter-clockwise
• Frame Size: 56
• Mounting Type: Platform
• Shaft Diameter: 5/8 in
• Shaft Length: 1-7/8 in
• Overall Motor Length: 10-3/4 in
• FLA at 208V: 3.40 A
• FLA at 230V: 3.20 A
• FLA at 460V: 1.60 A
• LRA at 230V: 14.60 A
• LRA at 460V: 7.30 A
