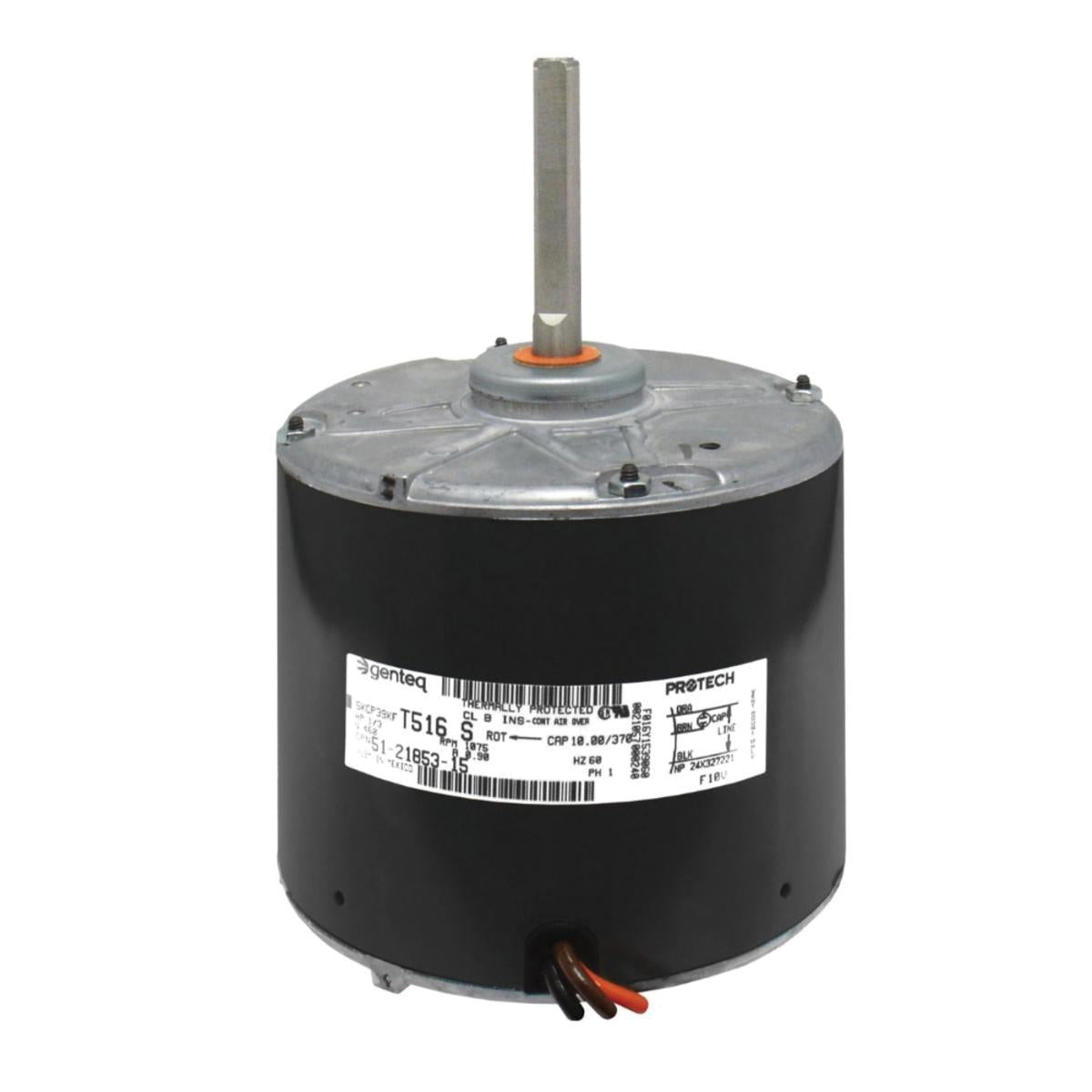

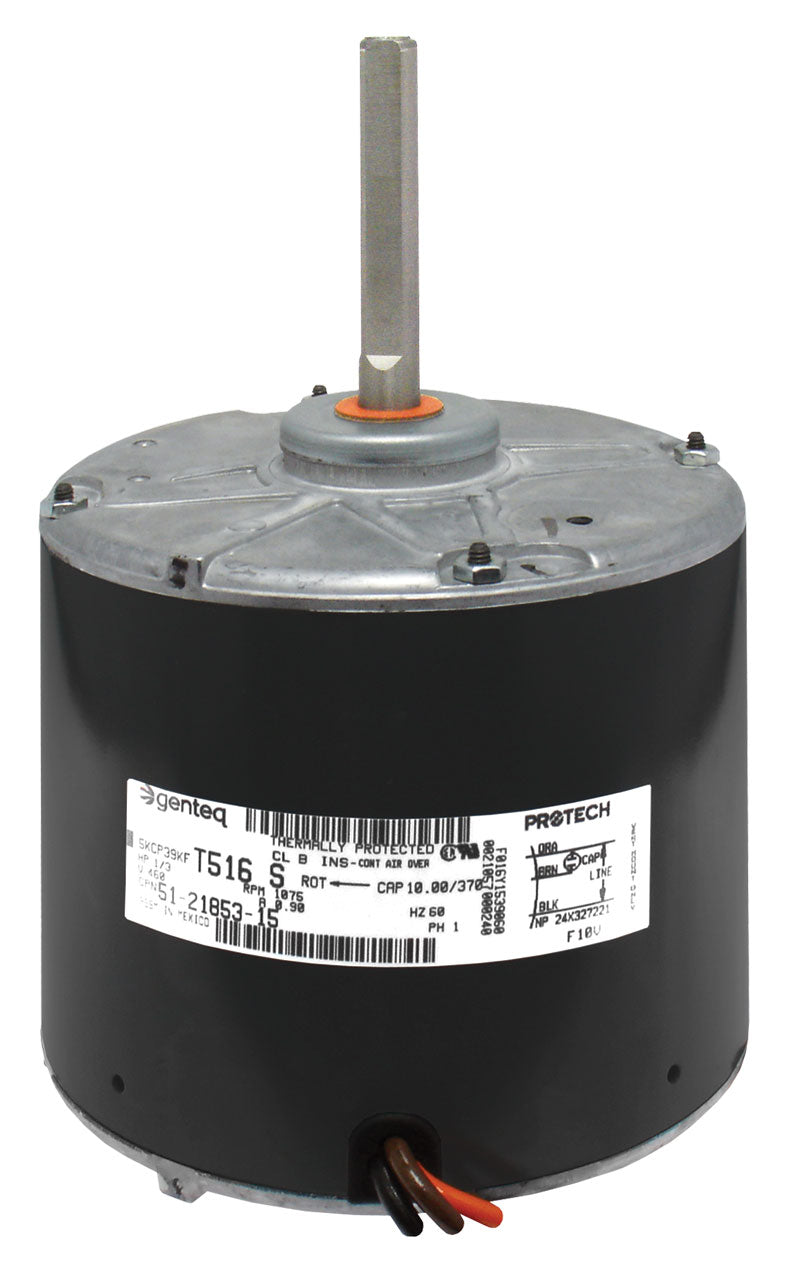

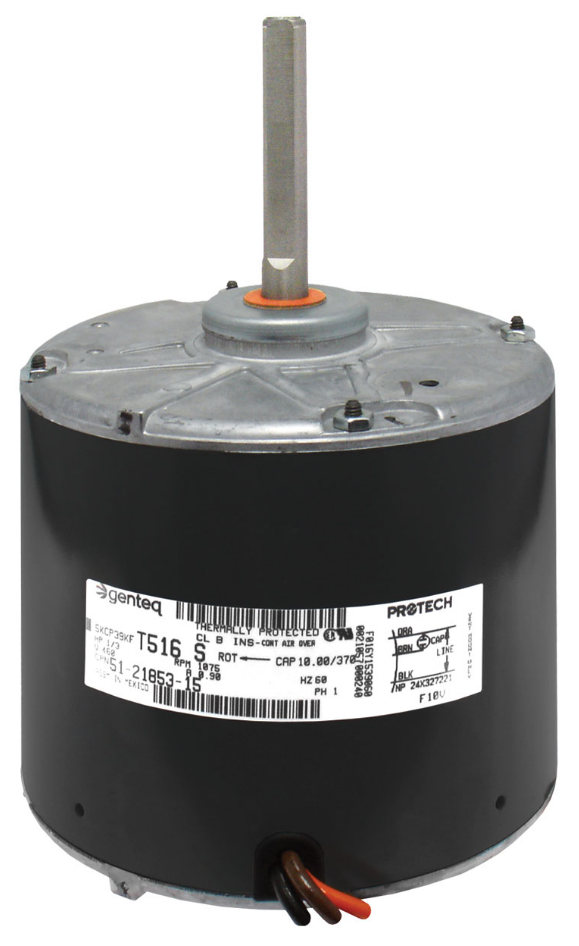

RUUD 51-21853-15 Condenser Motor 460 VAC 1/3 hp 1075 RPM

Product Description

The RUUD 51-21853-15 is a condenser motor suitable for direct drive blower applications. This motor operates at a voltage of 460 VAC and provides a power output of 1/3 horsepower at a speed of 1075 RPM. It is a single-phase motor featuring frame size 48 and has counter-clockwise rotation. The motor includes a half inch diameter shaft and is designed for both shell-band and shell-screw mounting.

• Operates at 460 VAC, 60 Hz
• Delivers 1/3 horsepower at 1075 RPM
• Features sleeve bearings and direct drive blower

Product Highlights

This motor is suitable for HVAC applications and provides reliable operation for various systems.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-21853-15

Technical Specifications

• Voltage Rating: 460 VAC
• Frequency Rating: 60 Hz
• Horsepower: 1/3 hp
• Speed: 1075 RPM
• Phase: 1 ph
• Frame Size: 48
• Shaft Size: 1/2 in diameter x 3-11/16 in length
• Rotation Type: Counter-clockwise
• Number of Speeds: 1
• Blower Type: Direct Drive
• Bearing Type: Sleeve
• Mounting Type: Shell-Band, Shell Screw
• Dimensions: 5-5/8 in diameter x 8-11/16 in length
• Output Current: 0.9 A
• Capacitor: 10mfd/370V
