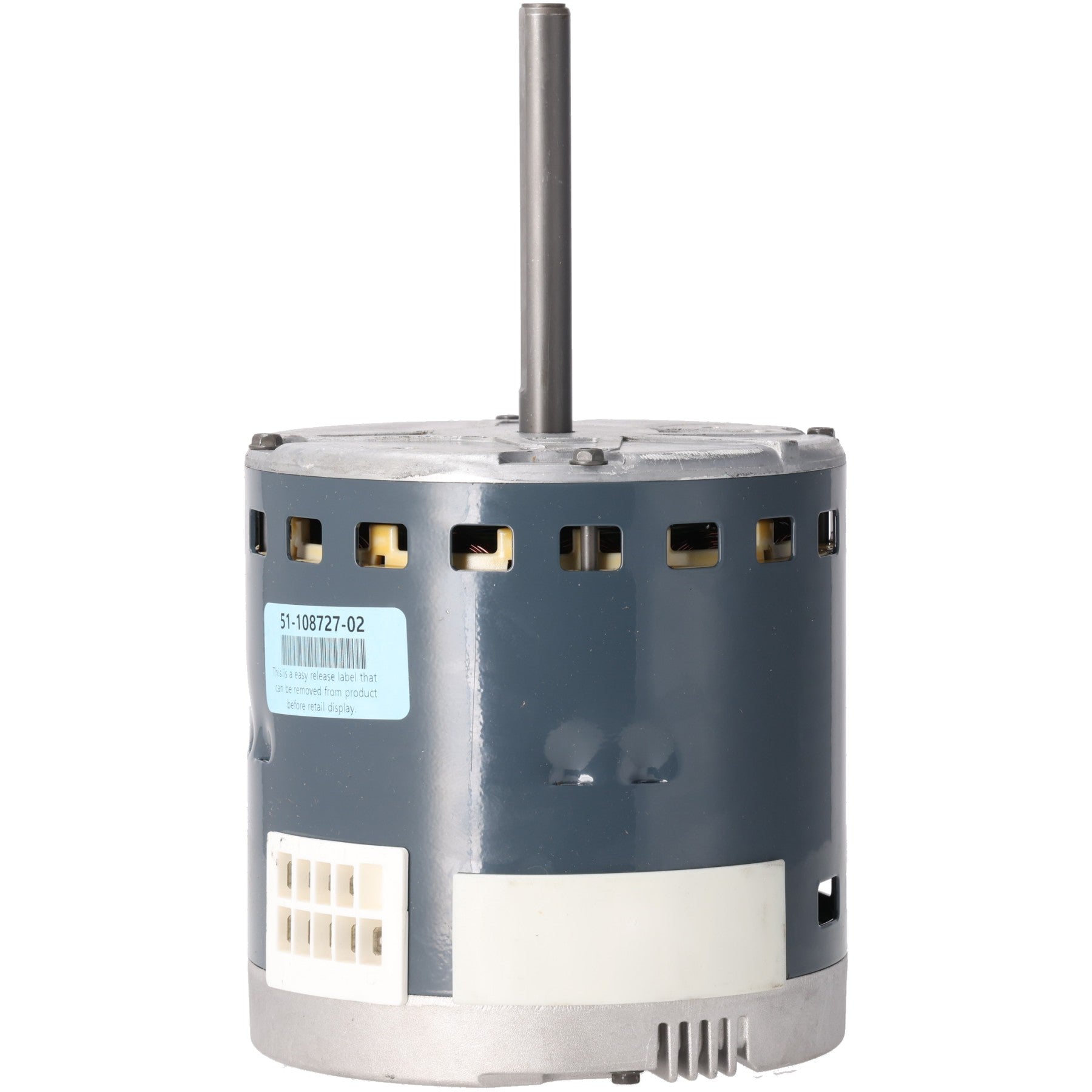

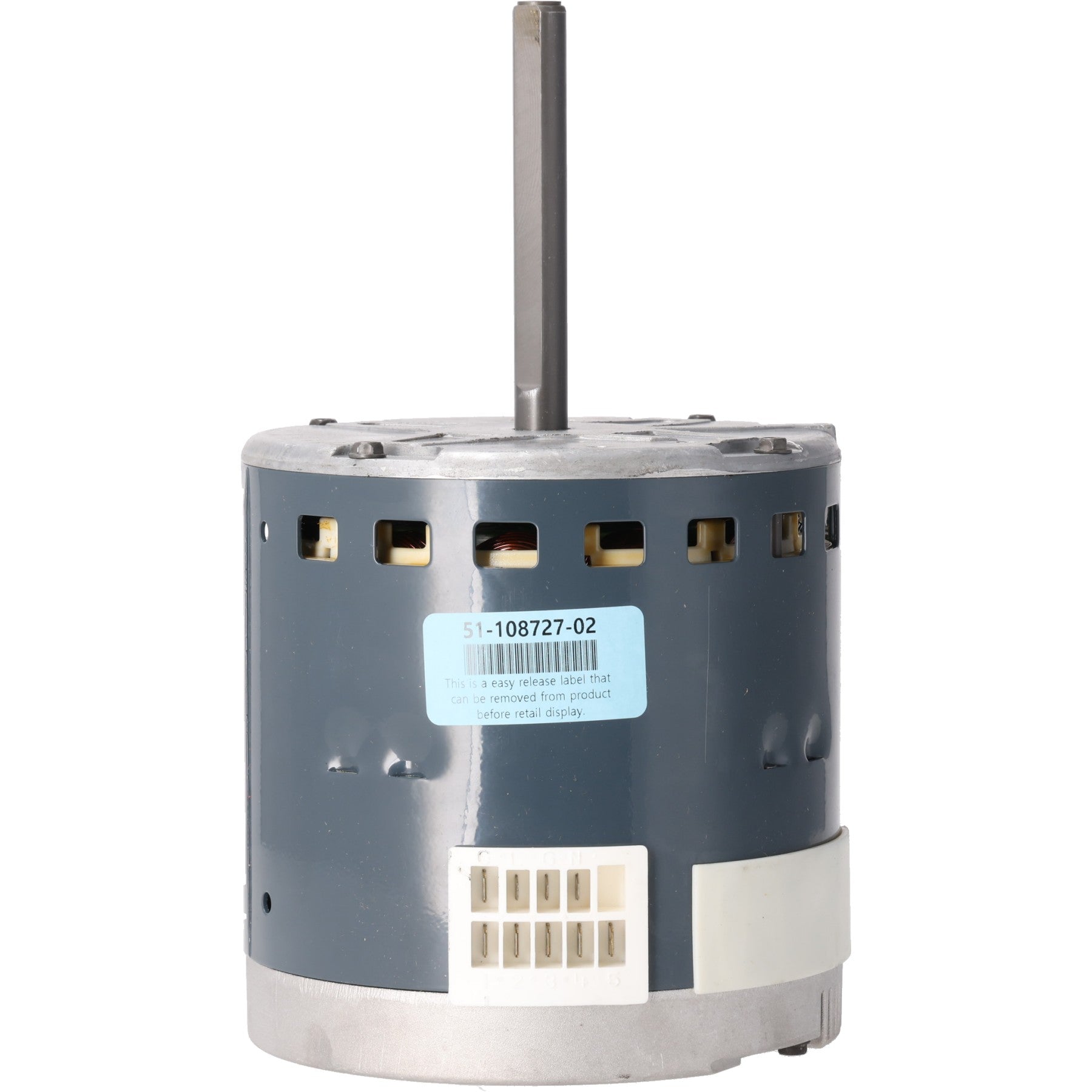

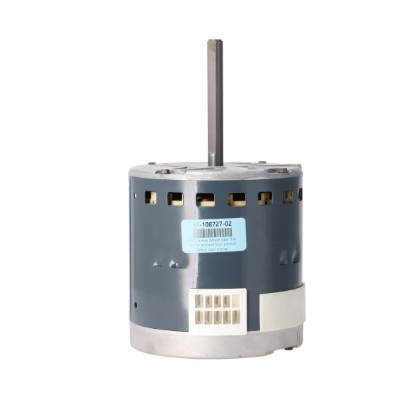

RUUD 51-108727-02 ENSITE Air Motor 1/3 hp 230 V

Product Description

The RUUD 51-108727-02 is an ENSITE Air Motor, suitable for blower applications. This motor operates at two hundred thirty volts and delivers one third horsepower. Built with a 48 frame, it features ball bearings for reliable operation and is suitable for shell band mounting.

• Designed for blower applications.
• Operates at 230V with a frequency of 50/60 Hz.
• Direct drive configuration.

Product Highlights

This motor is perfect for HVAC and cooling systems requiring a reliable air motor for optimized airflow.

Product Information

Standard Information

• Horsepower: 1/3 hp
• Input Voltage: 230 V

Technical Specifications

• Frequency: 50/60 Hz
• Frame Size: 48 Frame
• Shaft Length: 3-15/16 inches
• Bearing Type: Ball Bearing
• Mounting Type: Shell Band Mount
• Application: Blower
• Drive Type: Direct
• Voltage: 208/230 Single Phase
• Approximate Height: 5.52 inches
• Approximate Length: 9.71 inches
• Approximate Weight: 10.00 pounds
• Approximate Width: 5.57 inches
