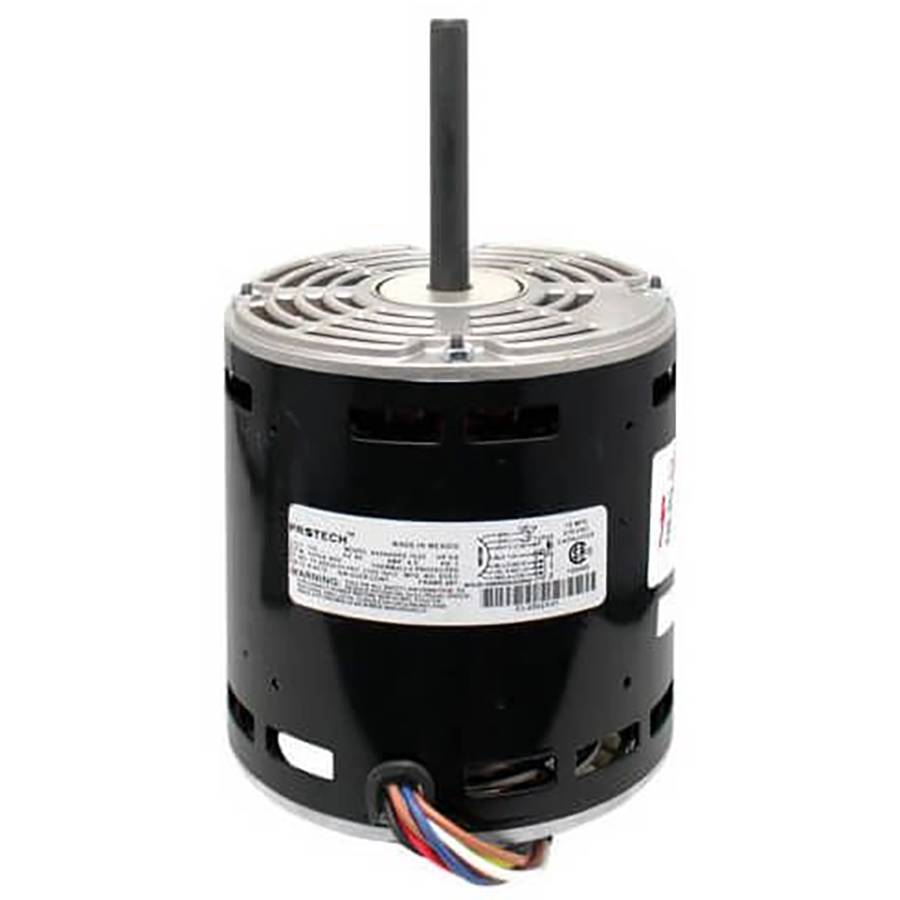

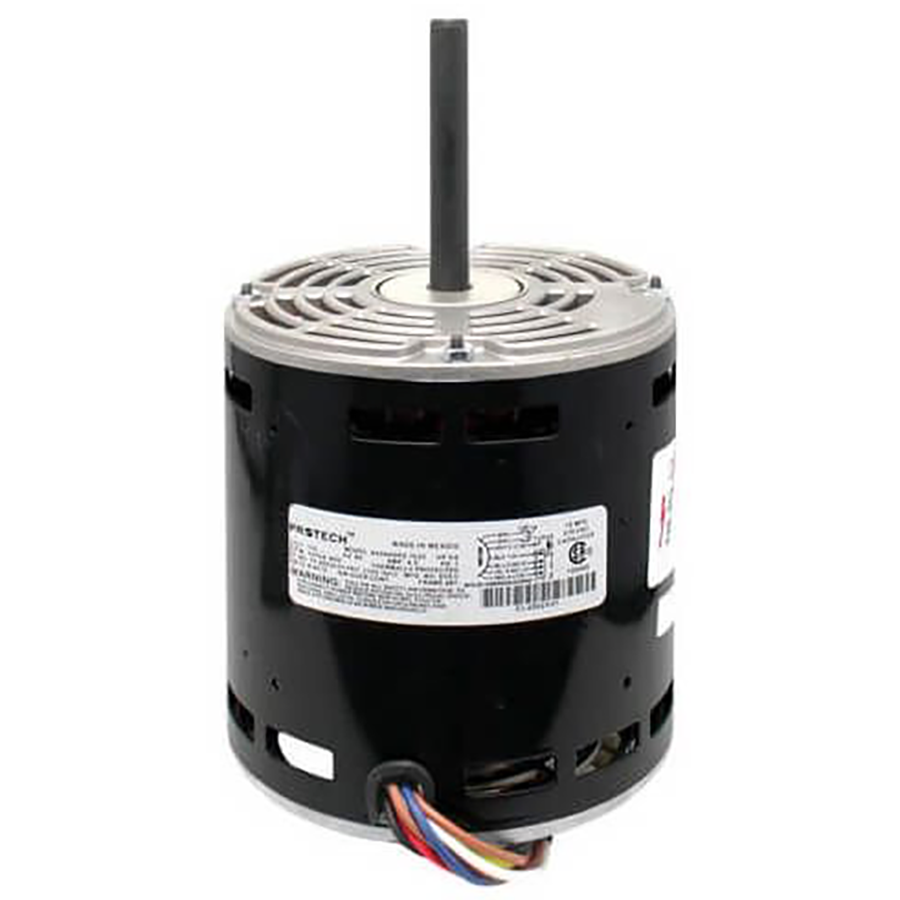

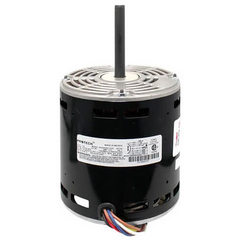

Ruud 51-106546-01 Selectech Gen 3 Blower Motor 3/4 Hp

Product Description

The RUUD 51-106546-01 is a SelecTech Gen 3 variable-speed ECM blower motor designed as a direct-drive replacement for residential and light-commercial HVAC systems. Rated at 3/4 horsepower and compatible with 208 or 230-volt, 60 Hz single-phase power, this motor uses a shell-band mounting configuration and a 48Y frame. The 1/2-inch shaft diameter accommodates standard blower wheel hubs, and the ball bearing construction supports reliable long-term operation in forced-air applications. Licensed HVAC technicians handling furnace or air handler blower motor replacements will find this unit dimensionally and electrically matched to original equipment specifications.

This motor is suited for residential furnace blower assemblies and air handler fan decks where a SelecTech Gen 3 variable-speed motor is specified. The direct-drive design eliminates belt and pulley components, reducing maintenance points. It is appropriate for use in forced-air heating and cooling systems that require a 48Y frame, shell-band mounted blower motor. Installations involving Rheem and Ruud equipment are the primary application for this OEM replacement part.

Key Features

• SelecTech Gen 3 variable-speed motor technology for efficient airflow control
• Rated 3/4 HP with 208/230-volt, 60 Hz input compatibility
• 48Y frame size with shell-band mounting for OEM fitment
• 1/2-inch shaft diameter with direct-drive configuration
• Ball bearing construction for extended service life
• Overall motor length of 12-9/16 inches fits standard blower compartment envelopes

Compatibility

Designed as an OEM replacement motor for select Rheem and Ruud furnace and air handler units requiring a SelecTech Gen 3, 3/4 HP, 48Y frame, shell-band mounted blower motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing motor or accessing the blower compartment. Verify that the replacement motor shaft diameter, frame size, and mounting style match the original unit before installation. Follow all applicable local mechanical and electrical codes during installation and reconnection.

Technical Specifications

• Motor Type: SelecTech Gen 3 Variable Speed
• Horsepower: 3/4 HP
• Input Voltage: 208/230 volts
• Frequency: 60 Hz
• Drive Type: Direct Drive
• Frame Size: 48Y
• Mounting: Shell-band
• Bearing Type: Ball
• Shaft Diameter: 0.5 inches
• Keyed/Flat Shaft Length: 4 inches
• Overall Shaft Length: 5.5 inches
• Motor Body Diameter: 5-39/64 inches
• Motor Body Length: 7-1/16 inches
• Overall Motor Length: 12-9/16 inches
• Application: Blower

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 51-106546-01
