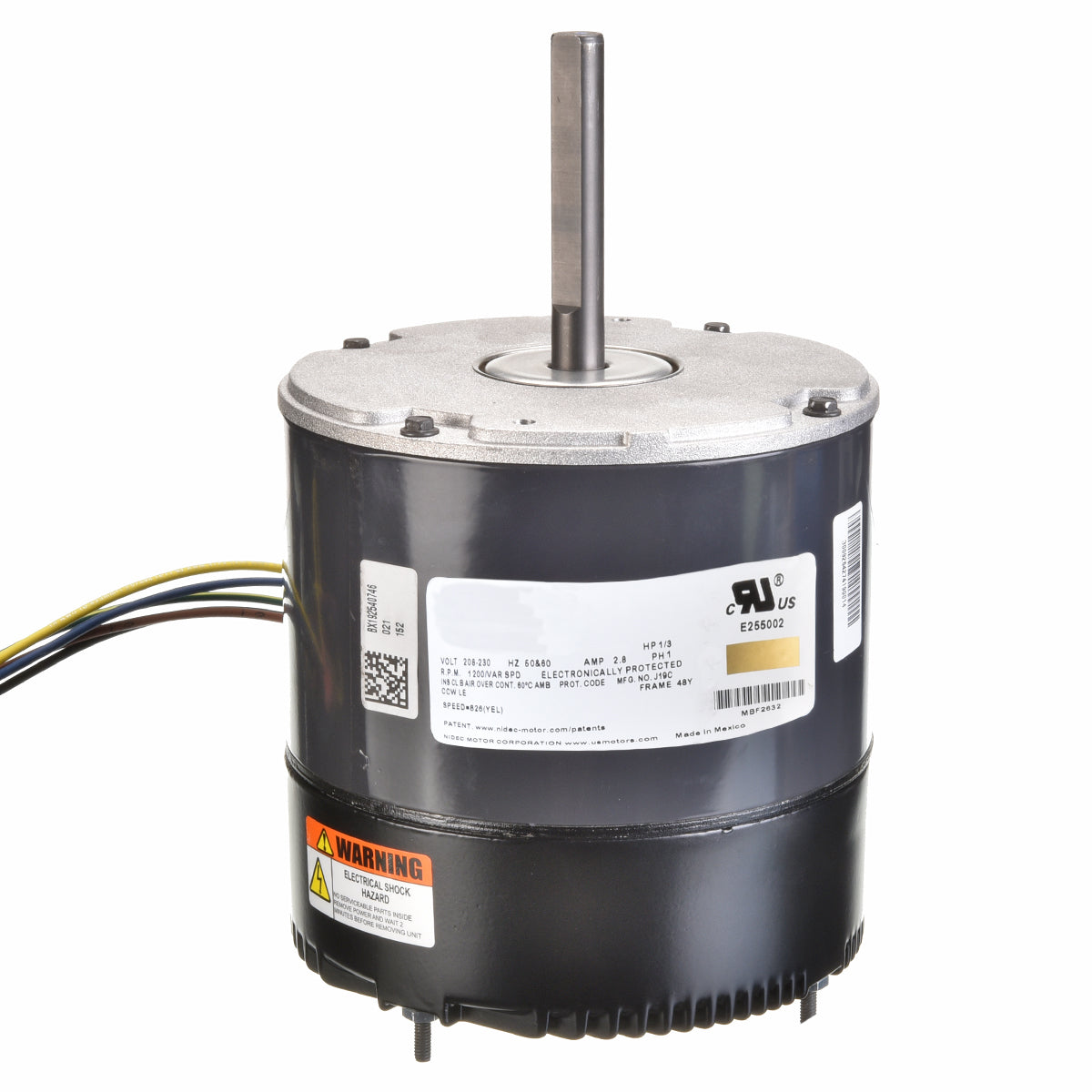

RUUD 51-106394-03 Condenser Motor 1/3 HP

Product Description

The RUUD 51-106394-03 is a condenser motor specifically designed for HVAC applications. It operates efficiently on 208 or 230 volts with a frequency of 50 or 60 hertz. This ECM motor features a single-phase design and a frame size of 48Y. It supports thru-bolt mounting for easy installation.

• Application: Condenser
• Motor Type: ECM
• Mounting Type: Thru-bolt

Product Highlights

This motor is built to provide reliable performance in heating and cooling systems. The variable speed operation allows for adaptability in various conditions, ensuring optimal airflow.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-106394-03

Technical Specifications

• Application: Condenser
• Bearing Type: Ball
• Drive Type: Direct Drive
• FLA at 208V (A): 2.80
• FLA at 230V (A): 2.80
• Frame Size: 48Y
• Frequency (Hz): 50 | 60
• Horsepower: 1/3
• Input Voltage: 208 | 230
• Shaft Length (in.): 2-29/32
• Motor Body Diameter (in.): 5-39/64
• Motor Body Length (in.): 5-19/32
• Motor Type: ECM
• Mounting: Thru-bolt
• Number of Phases: 1
• Number of Speeds: Variable
• Overall Motor Length (in.): 9-1/16
• Overall Shaft Length (in.): 3-1/16
• Rotation Direction (OSE): CCW
• Shaft Diameter (in.): 1/2
