RUUD 51-104940-02 RUUD Blower Motor 1/2 HP

Product Description

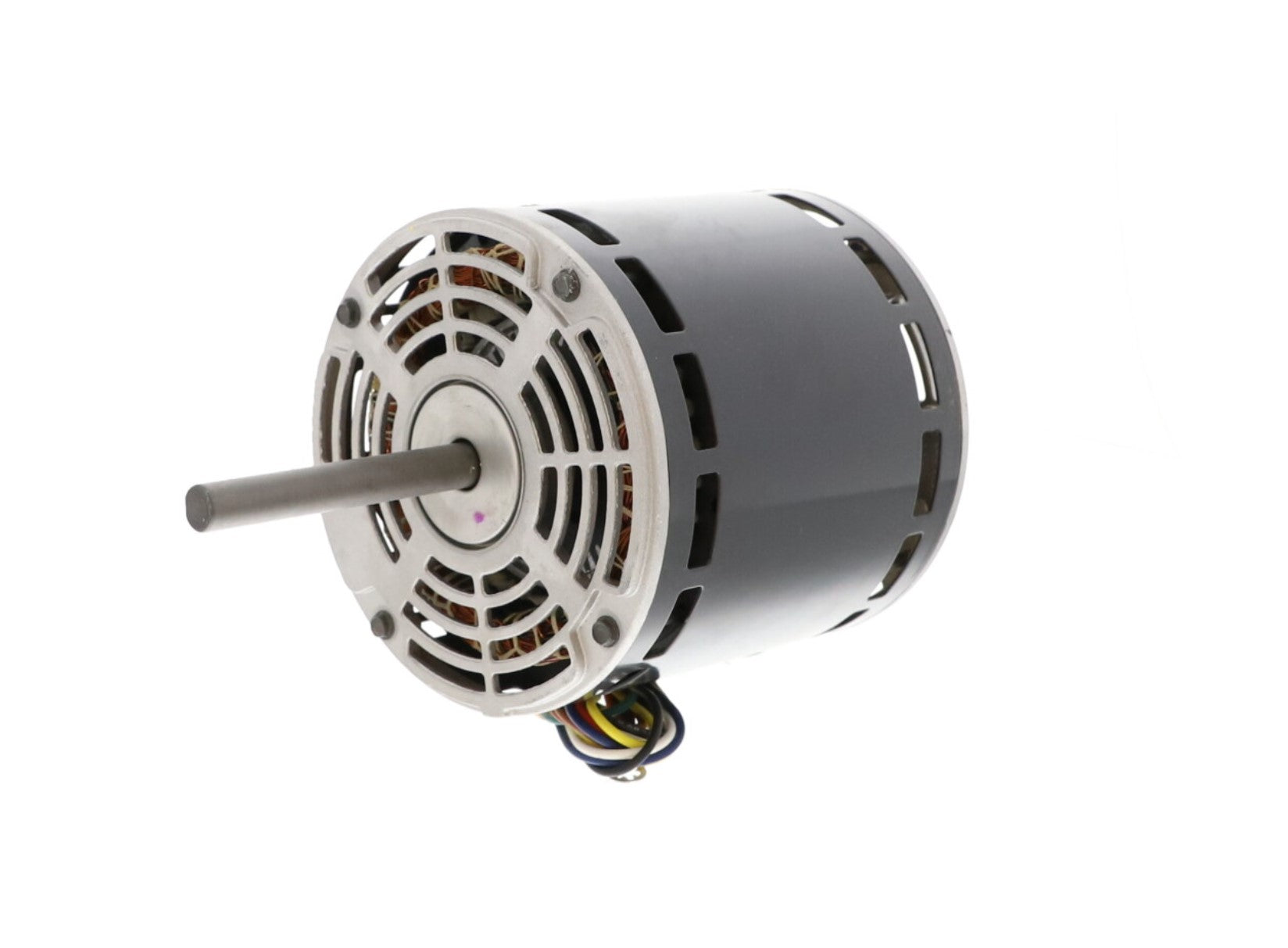

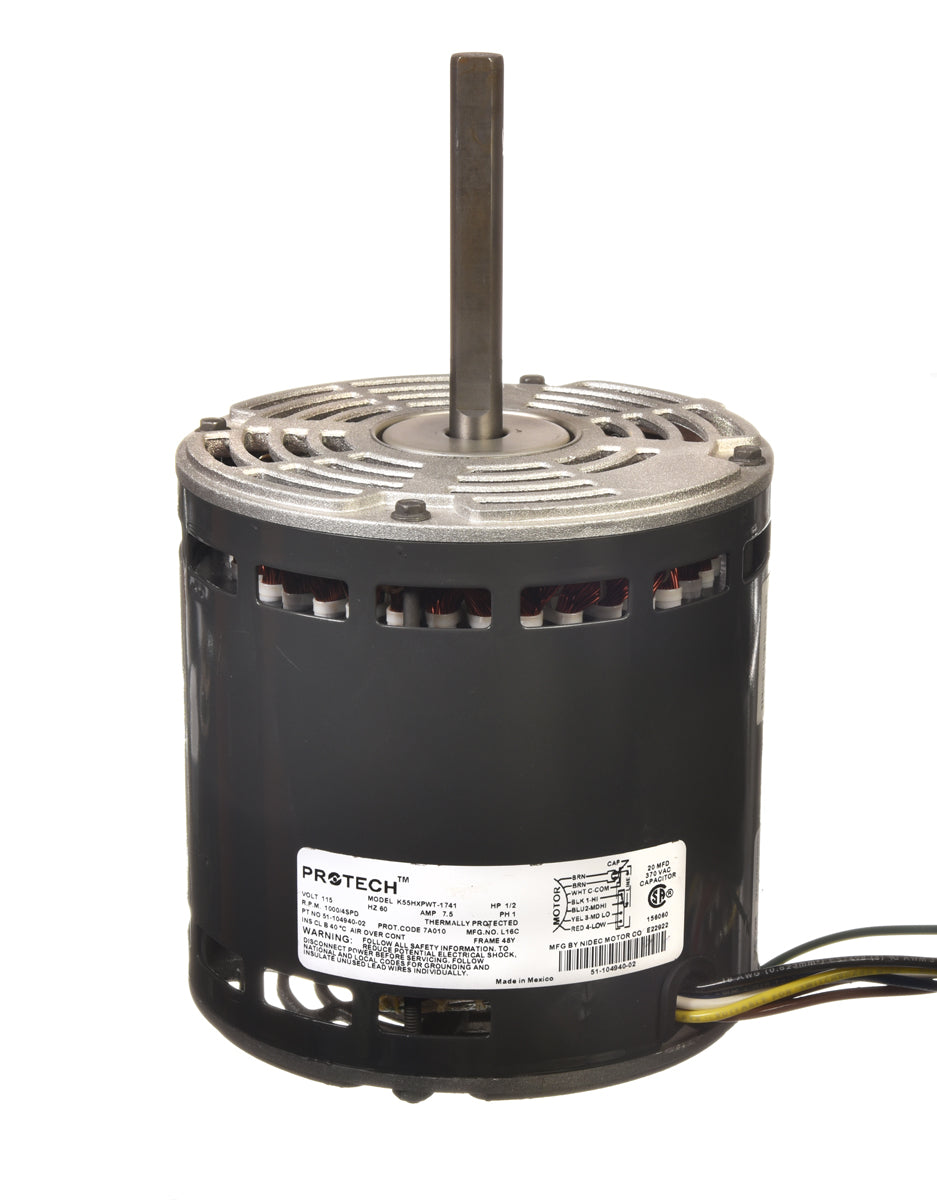

The RUUD 51-104940-02 is a reliable blower motor suitable for HVAC systems. It operates on 120V single-phase power and provides a power output of half a horsepower. This direct drive motor functions with four selectable speeds, achieving a maximum of 1075 RPM. Built with robust ball bearings and designed for shell-band mounting, it ensures durability and efficiency. The motor rotates counter-clockwise and requires a capacitor rated at 20/370 uF/V.

• Direct drive design for efficient airflow.
• Operates on 120V single-phase electricity.
• Maximum speed of 1075 RPM with four speed options.

Product Highlights

The RUUD blower motor is ideal for enhancing HVAC system performance. Its compact design allows for easy installation in various settings.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-104940-02

Technical Specifications

• Application: Blower
• Bearing Type: Ball
• Drive Type: Direct Drive
• Full Load Amperage at 120V: 7.50
• Frame Size: 48
• Frequency: 60 Hz
• High Speed (RPM): 1075
• Horsepower: 1/2 HP
• Input Voltage: 120 V
• Keyed/Flat Shaft Length: 3 inches
• Locked Rotor Amperage at 120V: 14.40
• Motor Body Diameter: 5-5/8 inches
• Motor Body Length: 5-9/16 inches
• Mounting Type: Shell-band
• Number of Phases: 1
• Number of Speeds: 4
• Overall Motor Length: 9-1/16 inches
• Overall Shaft Length: 3-1/2 inches
• Rotation Direction (OSE): CCW
• Run Capacitor: 20/370 uF/V
• Shaft Diameter: 1/2 inches
• Approximate Height: 7.15 inches
• Approximate Length: 12.95 inches
• Approximate Weight: 17.81 lbs.
• Approximate Width: 7.40 inches
• Shipping Weight: 17.81 lbs.
