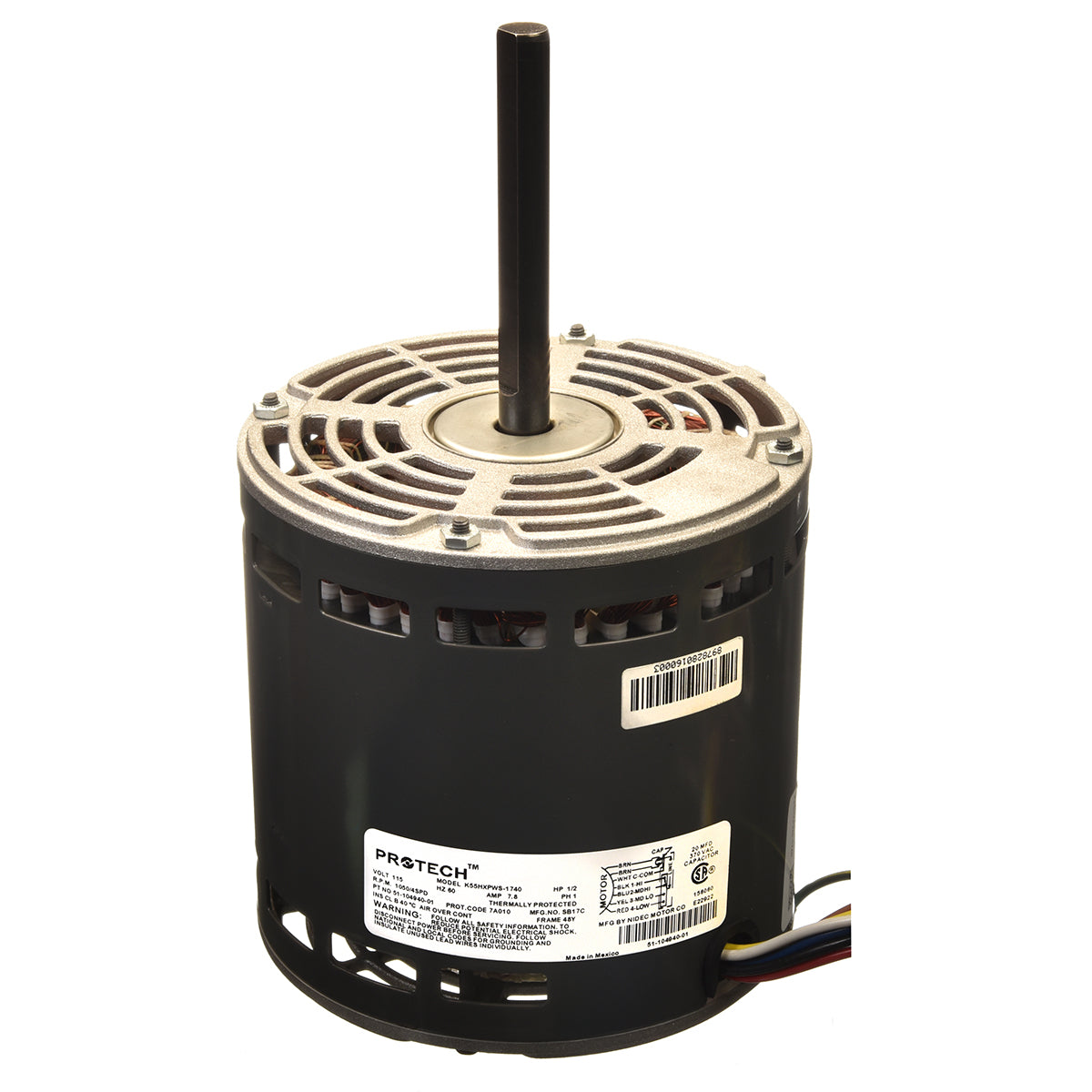

RUUD 51-104940-01 Blower Motor 1/2 HP 120V 60Hz Replacement MPN 51-104940-01

Product Description

The RUUD 51-104940-01 is a blower motor crafted for HVAC applications. It operates efficiently at 120 volts and 60 hertz with a power output of 1/2 horsepower. Designed with four speeds, this motor can reach a maximum speed of 1075 RPM, offering flexibility for different heating and cooling needs. The counter-clockwise rotation is suitable for many HVAC systems. Ball bearings are included to ensure smooth performance and durability, making it a reliable choice for direct drive systems.

• Operates at 120V, 60Hz
• Four speed settings with a maximum of 1075 RPM
• Engineered with ball bearings for smooth operation

Product Highlights

This blower motor serves as an OEM replacement for Rheem, Ruud, and Weatherking models.

Product Information

Standard Information

• Application: Blower
• Bearing Type: Ball

Technical Specifications

• MPN: 51-104940-01
• Drive Type: Direct Drive
• Input Voltage: 120V
• Frequency: 60 Hz
• Horse Power: 1/2 hp
• High Speed (RPM): 1075
• Number of Speeds: 4
• Rotation Direction: Counter-Clockwise
• Run Capacitor: 20/370
• FLA at 120V: 7.8A
• LRA at 120V: 16.10A
• Shaft Diameter: 1/2 inches
• Keyed Shaft Length: 3-15/32 inches
• Overall Shaft Length: 4 inches
• Motor Body Diameter: 5-5/8 inches
• Motor Body Length: 5-9/16 inches
• Overall Motor Length: 9-1/2 inches
• Mounting: Shell-band
• Frame Size: 48
• Number of Phases: 1
