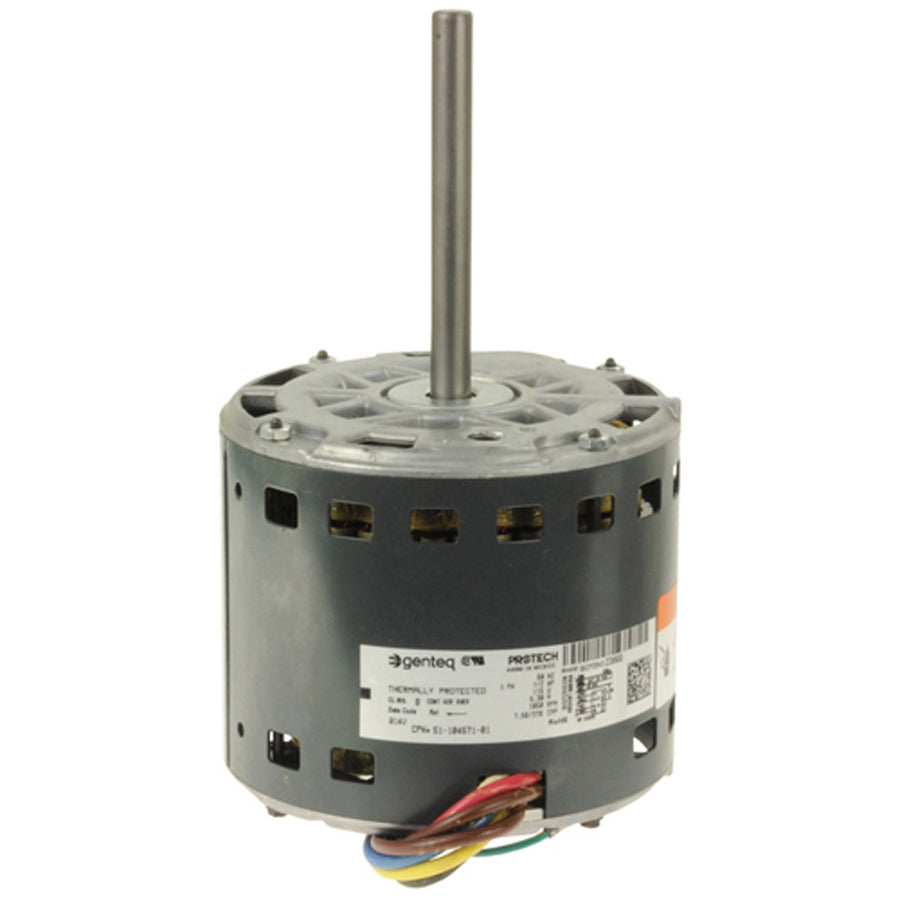

Ruud 51-104671-01 Furnace Blower Motor 1/2 Hp Direct Drive

Product Description

The RUUD 51-104671-01 is a direct-drive blower motor designed for residential gas furnace applications. Rated at 1/2 HP and 1075 RPM, this 4-speed motor operates on 120 VAC, 60 Hz, single-phase power with a full load amperage of 6.3 A and a locked rotor amperage of 12.9 A. It uses a 48 frame construction and supports both shell-band and shell-screw mounting configurations. Rotation is counter-clockwise (CCW). Licensed HVAC technicians install this motor as part of blower assembly service or motor replacement on gas furnace systems.

This motor is rated for indoor use and is specified for the R92PA, R95PA, and R96PA series Rheem and Ruud gas furnaces. It serves as an OEM-style replacement for Rheem, Ruud, and Weather King models. The 4-speed winding configuration allows the motor to support multi-stage airflow demands typical in residential gas furnace installations. It may also be suitable for aftermarket retrofit applications where a 48 frame, direct-drive blower motor with matching electrical characteristics is required.

Key Features

• 1/2 HP direct-drive blower motor rated at 1075 RPM
• 4-speed winding supports variable airflow configurations
• 120 VAC, 60 Hz, single-phase operation
• Counter-clockwise (CCW) rotation
• 48 frame with shell-band and shell-screw mounting options
• Rated for indoor use in residential gas furnace systems

Compatibility

Specified for use on Rheem, Ruud, and Weather King R92PA, R95PA, and R96PA series gas furnaces. May also be suitable for aftermarket retrofit in other applications requiring a 48 frame, 1/2 HP, 4-speed, direct-drive blower motor with CCW rotation and 120 VAC single-phase input.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the furnace before removing the existing motor or handling wiring. Confirm frame size, rotation direction, shaft diameter, and speed tap configuration match the original motor before installation. Follow applicable local codes and manufacturer wiring diagrams when reconnecting speed taps and capacitor leads.

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 120 VAC
• Frequency: 60 Hz
• Phase: 1-Phase
• Full Load Amperage: 6.3 A
• Locked Rotor Amperage: 12.9 A
• Speed: 1075 RPM
• Number of Speeds: 4
• Frame: 48
• Rotation: Counter-Clockwise (CCW)
• Drive Type: Direct Drive
• Mounting: Shell-Band / Shell-Screw
• Location Rating: Indoor
• Height: 7.0 inches
• Length: 14.6 inches
• Width: 7.15 inches
• Weight: 13.01 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 51-104671-01
