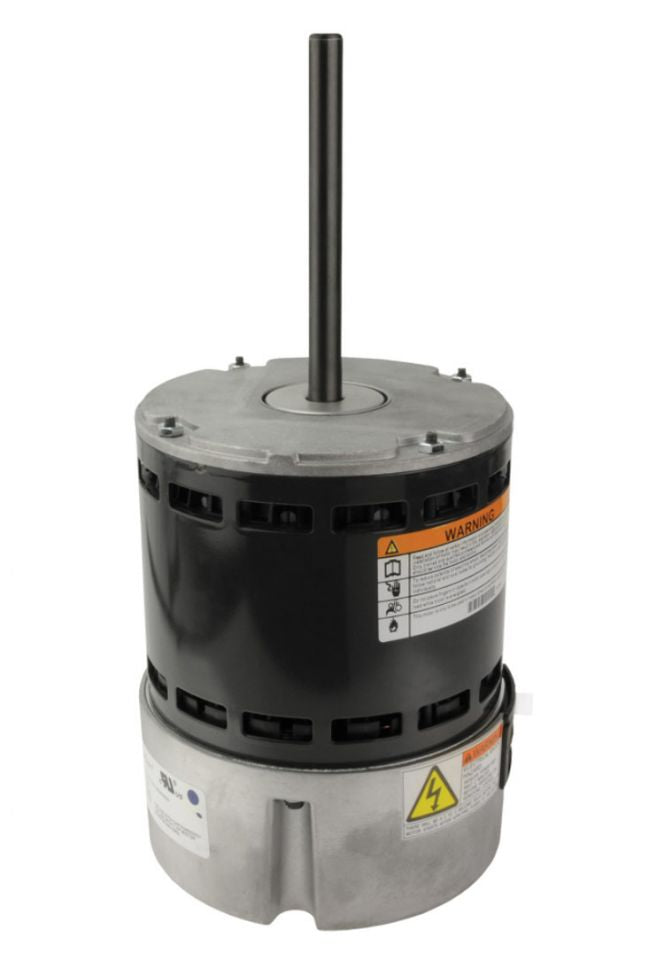

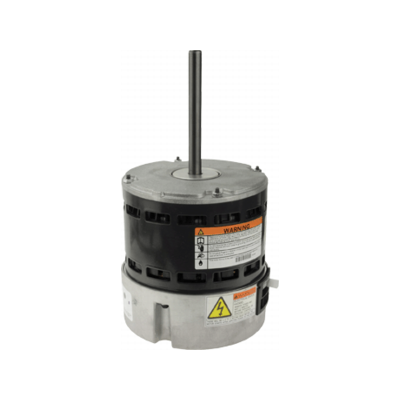

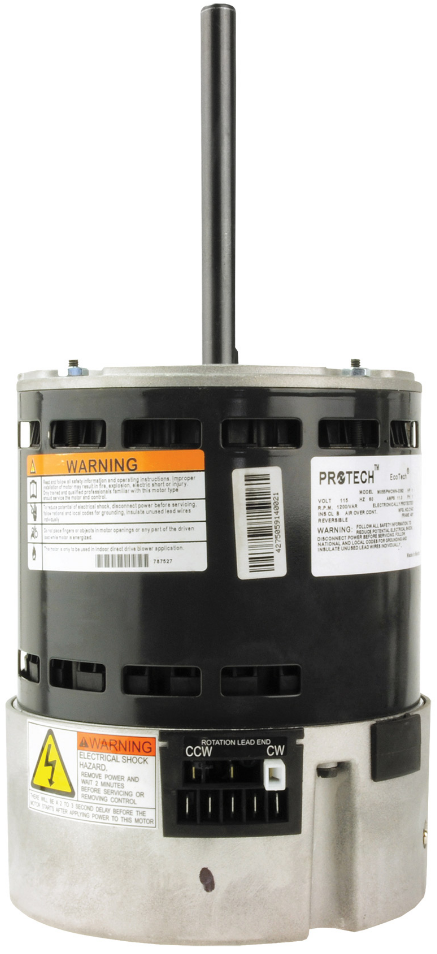

RUUD 51-104617-03 EcoTech Blower Motor 1 HP

Product Description

The RUUD 51-104617-03 is a direct drive blower motor suitable for various blower applications. This motor operates with a voltage of 120V and features variable speed functionality. Key specifications include a diameter shaft of one-half inch and a length that varies from four and one-half to five inches. It is recognized as a genuine OEM repair part for reliable performance.

• Direct drive blower motor
• Variable speed functionality
• Shell-band mounting design

Product Highlights

This RUUD EcoTech blower motor is ideal for HVAC systems requiring efficient air movement.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-104617-03

Technical Specifications

• Motor Type: ECM (Electronically Commutated Motor)
• Horsepower: 1 hp
• Input Voltage: 120V
• Frequency: 60Hz
• Phase: Single
• Drive Type: Direct
• Mounting Type: Belly Band
• Bearing Type: Ball
• Frame Size: 48
• Shaft Size: 1/2 in Dia x 5 in L
• Diameter: 5-39/64
• Height (Approximate): 6.75 in
• Length (Approximate): 15.25 in
• Width (Approximate): 6.88 in
• Weight (Approximate): 18.00 lb
