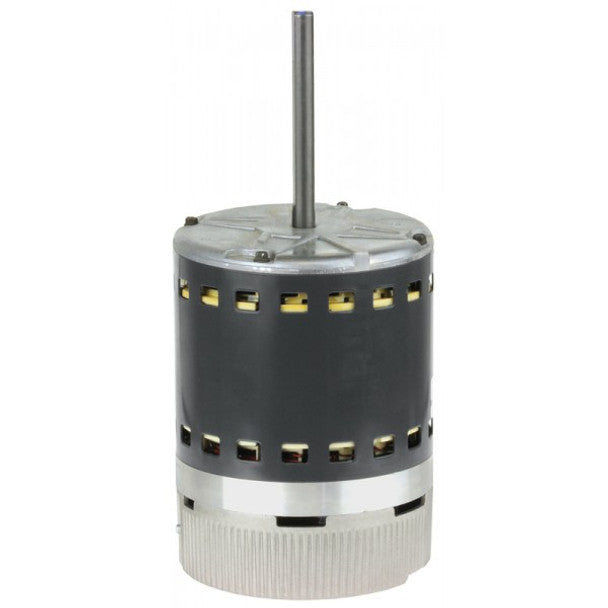

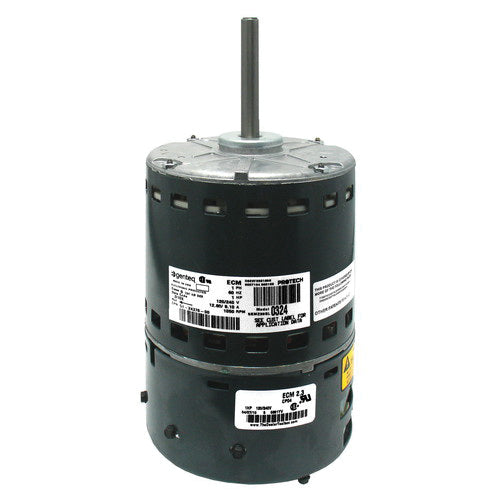

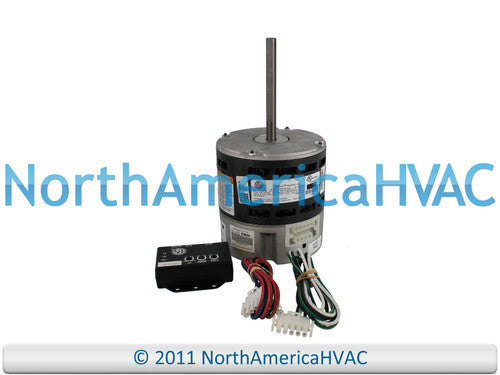

Ruud 51-104306-00 Blower Motor 120/230 VAC 1 hp 48 Frame

Product Description

The Ruud 51-104306-00 is a robust blower motor built for HVAC applications. It operates efficiently on both 120 VAC and 230 VAC power sources, providing a power output of 1 horsepower. This single-phase motor is versatile, functioning seamlessly with both 50 Hz and 60 Hz power frequency. The frame size is 48, which allows for easy installation in various setups.

• Operates on 120/230 VAC
• Features direct drive design
• Equipped with durable ball bearings

Product Highlights

This blower motor is designed for direct drive applications, ensuring reliability and performance in HVAC systems.

Product Information

Standard Information

• Brand: Ruud
• MPN: 51-104306-00

Technical Specifications

• Mounting Type: Shell Band
• Input Voltage: 120/230 VAC
• Power: 1 hp
• Phase: 1 ph
• Frequency: 50 Hz, 60 Hz
• Frame Size: 48
• Drive Type: Direct
• Bearing Type: Ball
• Dimensions: 5-5/8 inches Diameter x 11-13/16 inches Length
• Shaft Size: 1/2 inch Diameter x 4-1/2 inches Length
