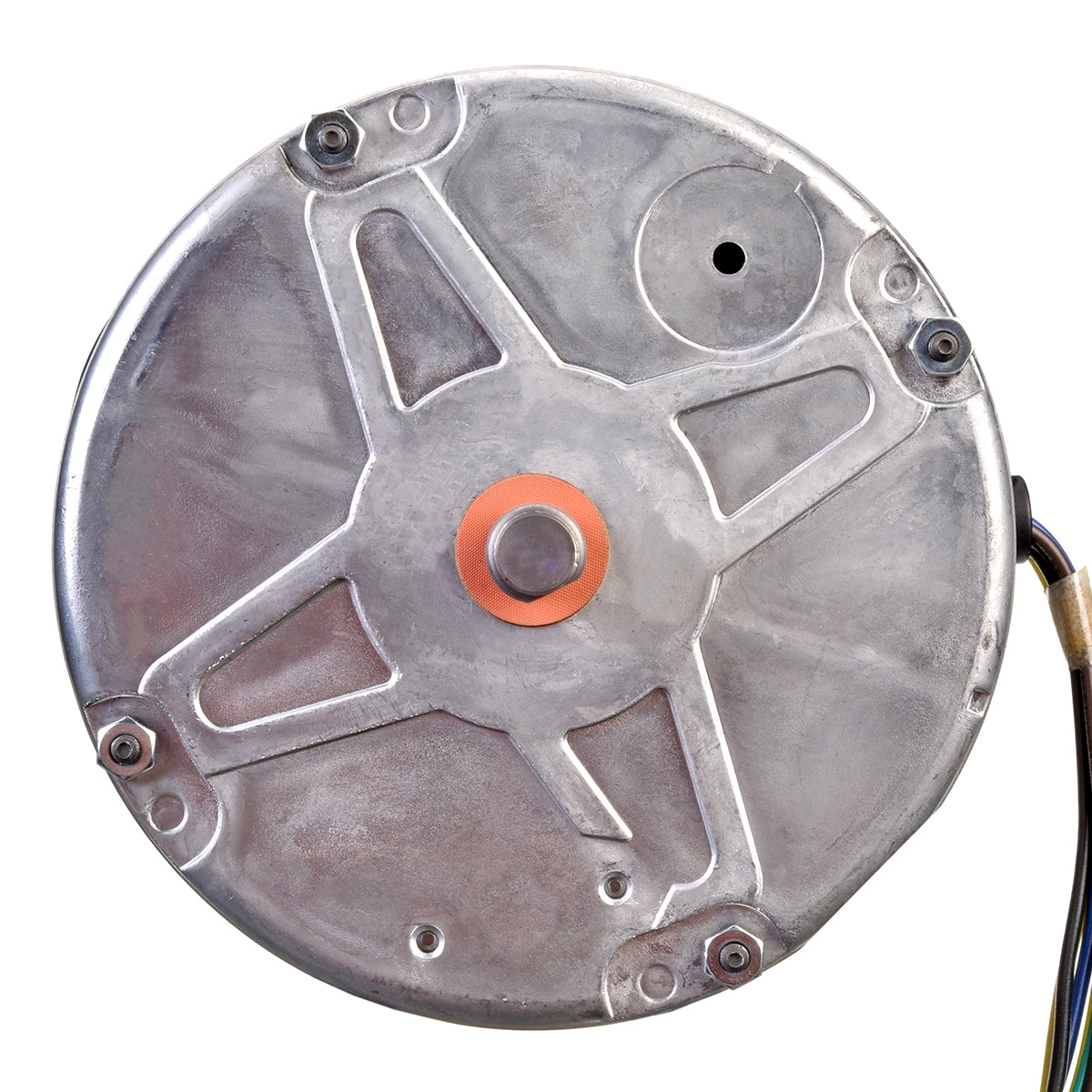

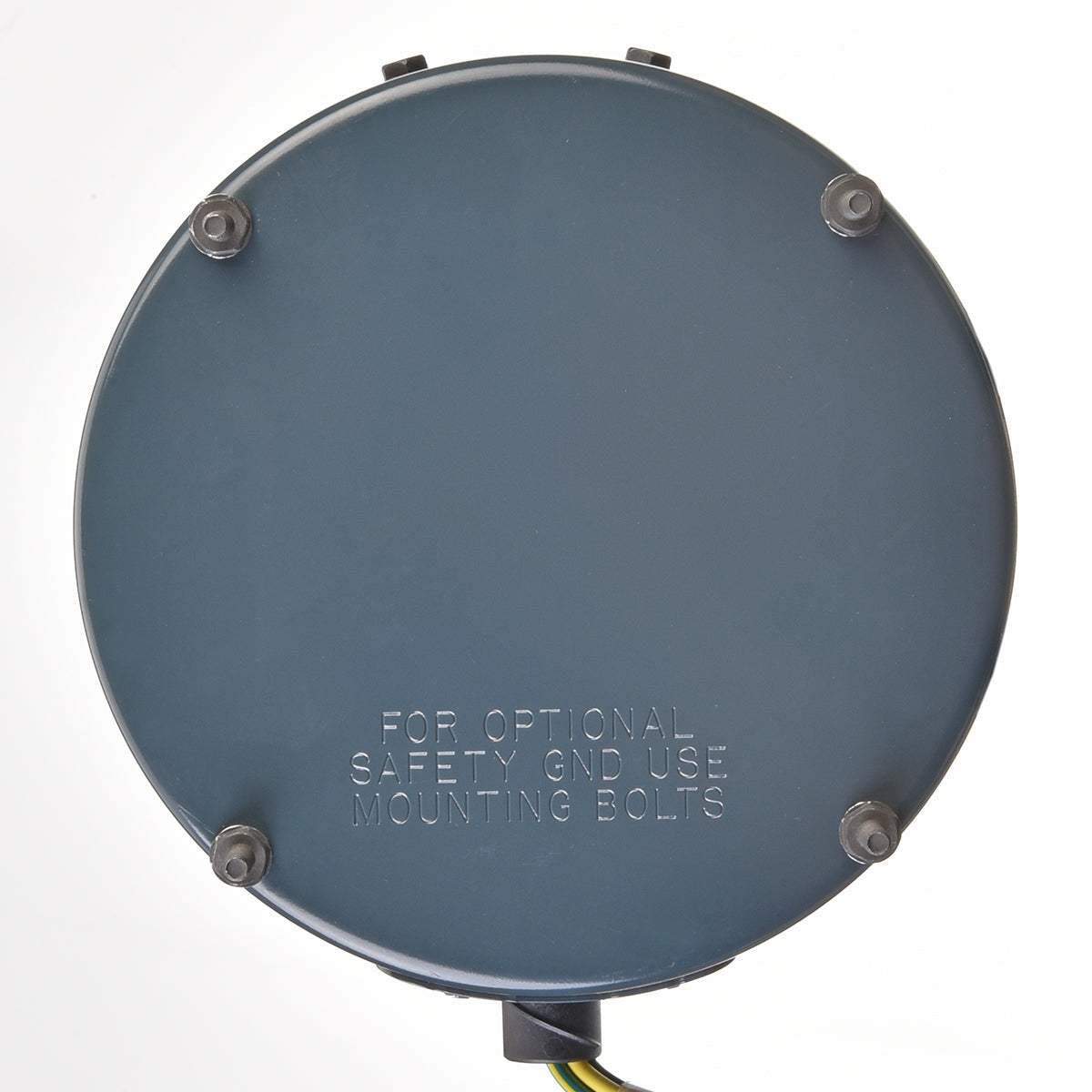

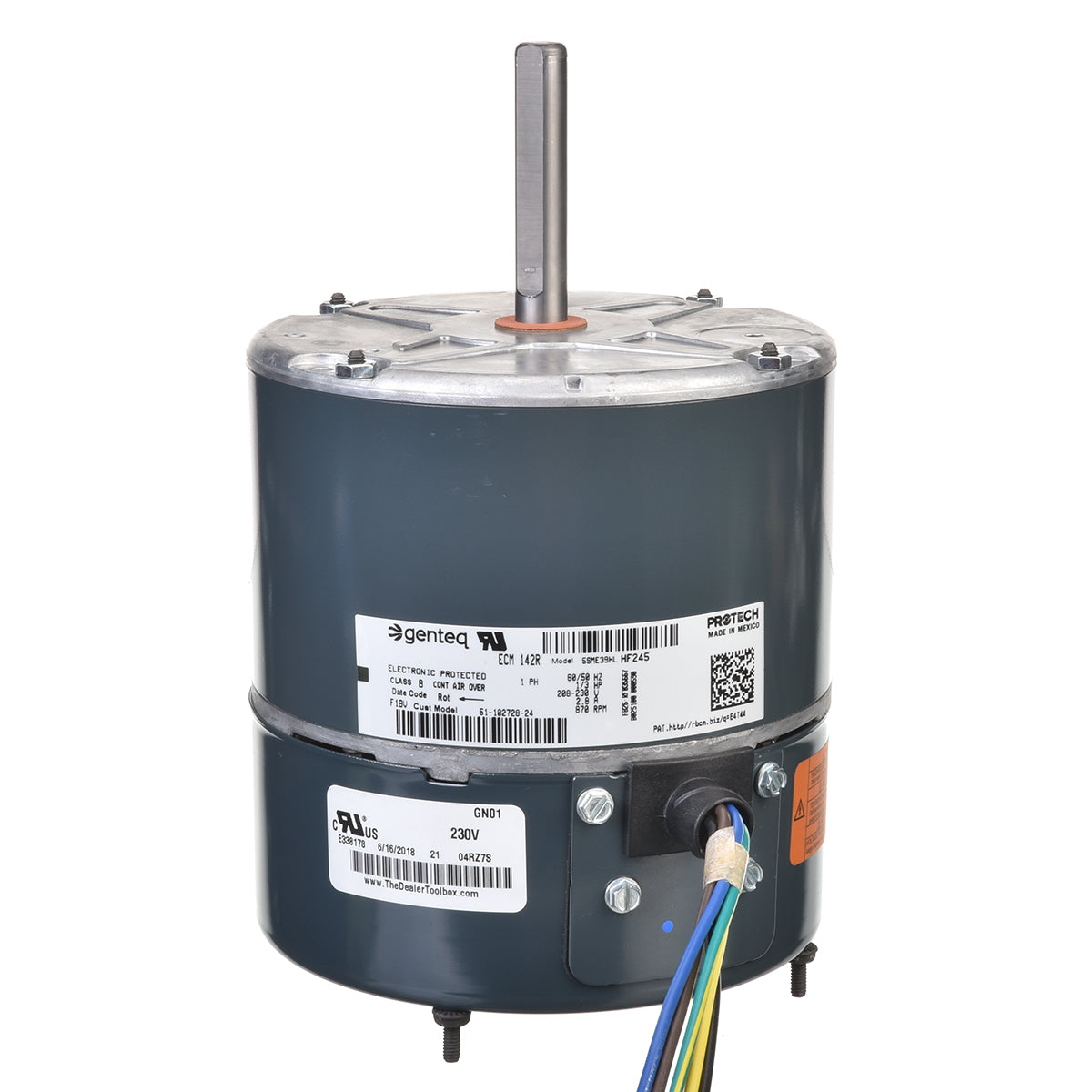

RUUD 51-102728-24 Condenser ECM Motor 1/3 HP

Product Description

The RUUD 51-102728-24 is a condenser ECM motor suitable for residential HVAC systems. This motor operates at a horsepower of 1/3 and has variable speed capabilities for efficient performance. It is designed for direct drive applications and operates on 208-230 volts single-phase power. The motor features counter-clockwise rotation and is compatible with shell-band or thru-bolt mounting options. This design enhances operational efficiency across varying speeds.

• ECM motor with variable speed functionality
• Works on 208-230V single-phase power
• Counter-clockwise (CCW) rotation

Product Highlights

Designed for efficient cooling, the RUUD 51-102728-24 motor is ideal for HVAC applications where variable speed is required.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-102728-24

Technical Specifications

• Motor Application: Condenser ECM
• Horsepower: 1/3
• Number of Speeds: Variable
• Input Voltage: 208-230/1/50-60
• Phase: 1PH
• Rotation: CCW
• Full Load Amperage (208V): 2.8
• Full Load Amperage (230V): 2.8
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Keyed/Flat Shaft Length: 2-1/4 inches
• Overall Shaft Length: 2-5/8 inches
• Motor Body Length: 6 inches
• Overall Motor Length: 9-1/16 inches
• Mounting Type: Shell-band/Thru-bolt
• Frame Size: 39
• Bearing Type: Ball
• Weight: 12.26 lbs.
• Drive Type: Direct
• Approximate Height: 6.85 inches
• Approximate Length: 14.55 inches
• Approximate Width: 7.50 inches
• Motor Type: ECM
• RPM: 870
• Amperage: 2.80 Amps
• Motor Cooling: Air Over
