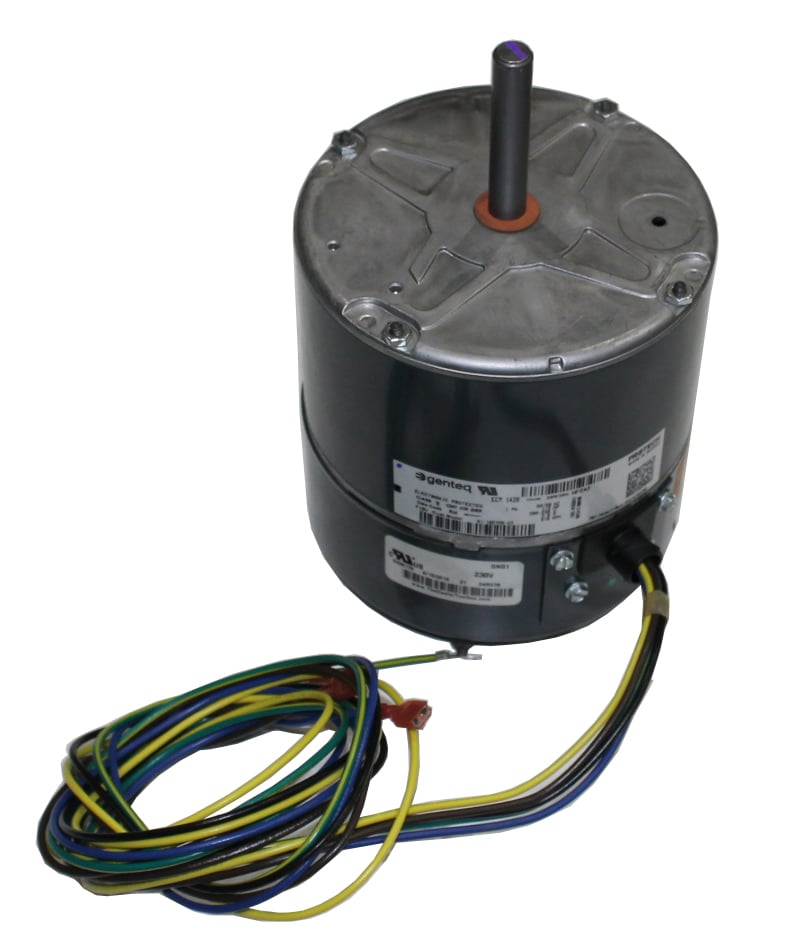

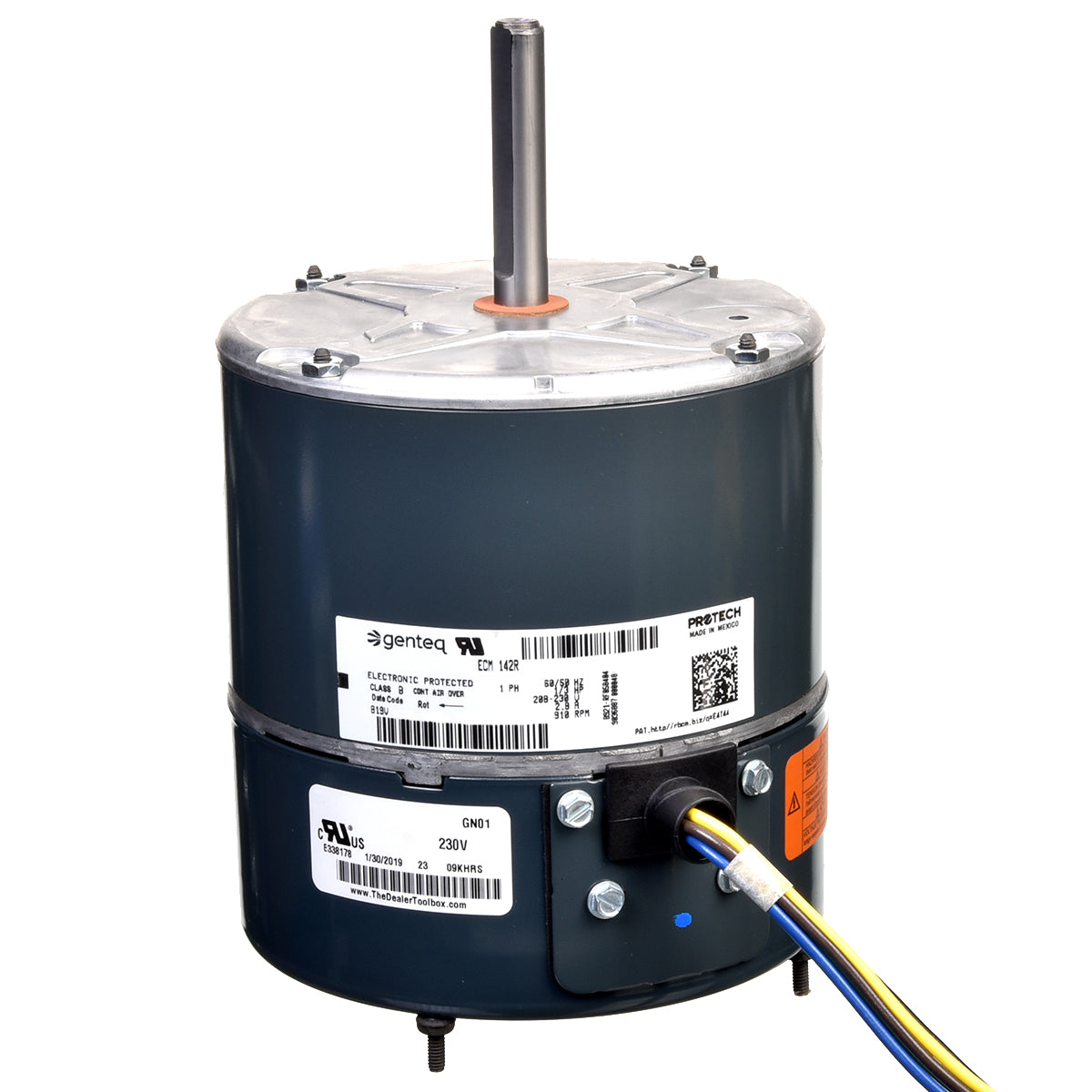

RUUD 51-102728-23 ECM Condenser Motor 1/3 HP 208-230V Variable Speed

Product Description

The RUUD 51-102728-23 is an ECM condenser motor designed specifically for outdoor applications. It operates on 208-230V single-phase power and provides reliable performance with a power output of 1/3 horsepower. This model features variable speed operation that enhances efficiency and adaptability in different conditions. It is constructed for easy installation in two-stage outdoor compressors and heat pump units.

• Operates with 208-230V single-phase power
• Features variable speed for improved energy efficiency
• Ideal for shell-band/thru-bolt mounting

Product Highlights

This motor is built for reliable operation in demanding outdoor environments, ensuring smooth performance for HVAC systems.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-102728-23

Technical Specifications

• Motor Application: Condenser ECM
• Horsepower: 1/3
• Number of Speeds: Variable
• Input Voltage: 208-230/1/50-60
• Rotation Direction: CCW
• FLA at 208V: 2.8 A
• FLA at 230V: 2.8 A
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Keyed/Flat Shaft Length: 2-1/4 inches
• Overall Shaft Length: 2-5/8 inches
• Motor Body Length: 6 inches
• Overall Motor Length: 9-1/16 inches
• Mounting Type: Shell-band/Thru-bolt
• Frame Size: 39
• Bearing Type: Ball
• Approximate Weight: 12.27 pounds
• Drive Type: Direct
• Approximate Height: 6.80 inches
• Approximate Length: 14.65 inches
• Approximate Width: 7.30 inches
