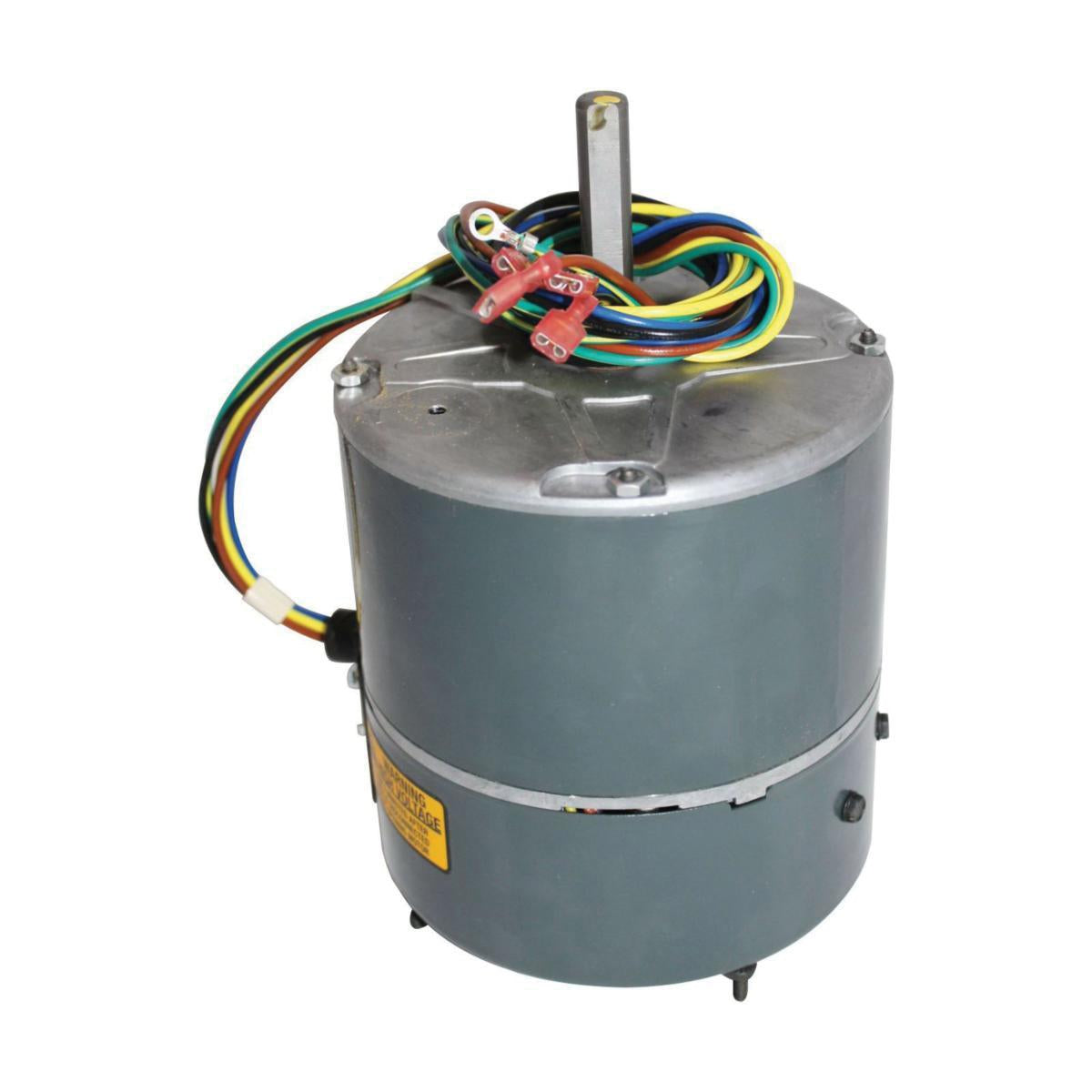

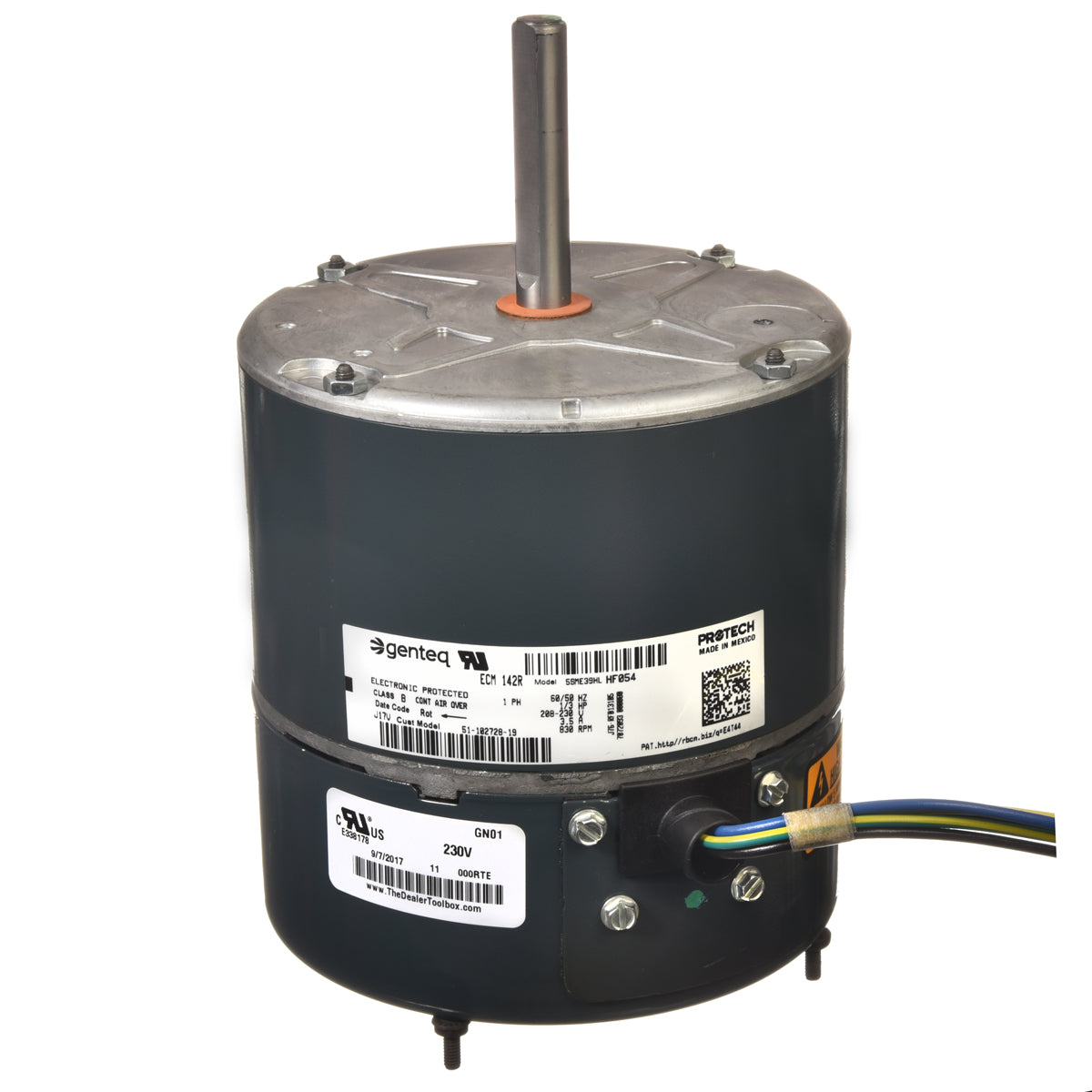

RUUD 51-102728-19 Condenser Fan Motor ECM

Product Description

The RUUD 51-102728-19 condenser fan motor is a key component for HVAC systems. This ECM (Electronically Commutated Motor) operates efficiently at voltages of two hundred eight to two hundred thirty volts and has a power rating of one-third horsepower.

• Direct drive type motor
• Counter-clockwise rotation
• Speed of eight hundred twenty-five revolutions per minute

Product Highlights

This motor is suitable for use with RA1660AC1NB and RA1660AJ1NA/B condensing units. It features variable speed operation, providing efficiency across various demands.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-102728-19

Technical Specifications

• Motor Application: Condenser ECM
• Horsepower: 1/3 HP
• Voltage Rating: 208 to 230 V
• Input Voltage: 208-230/1/50-60
• Phase: 1 ph
• Frequency Rating: 50/60 Hz
• Speed Rating: 825 rpm
• Number of Speeds: Variable
• Rotation Type: CCW
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Keyed/Flat Shaft Length: 2-1/4 inches
• Overall Shaft Length: 2-5/8 inches
• Motor Body Length: 6 inches
• Overall Motor Length: 9-1/16 inches
• Mounting: Shell-band/Thru-bolt
• Frame Size: 39
• Bearing Type: Ball
• FLA at 208V (A): 3.5
• FLA at 230V (A): 3.5
