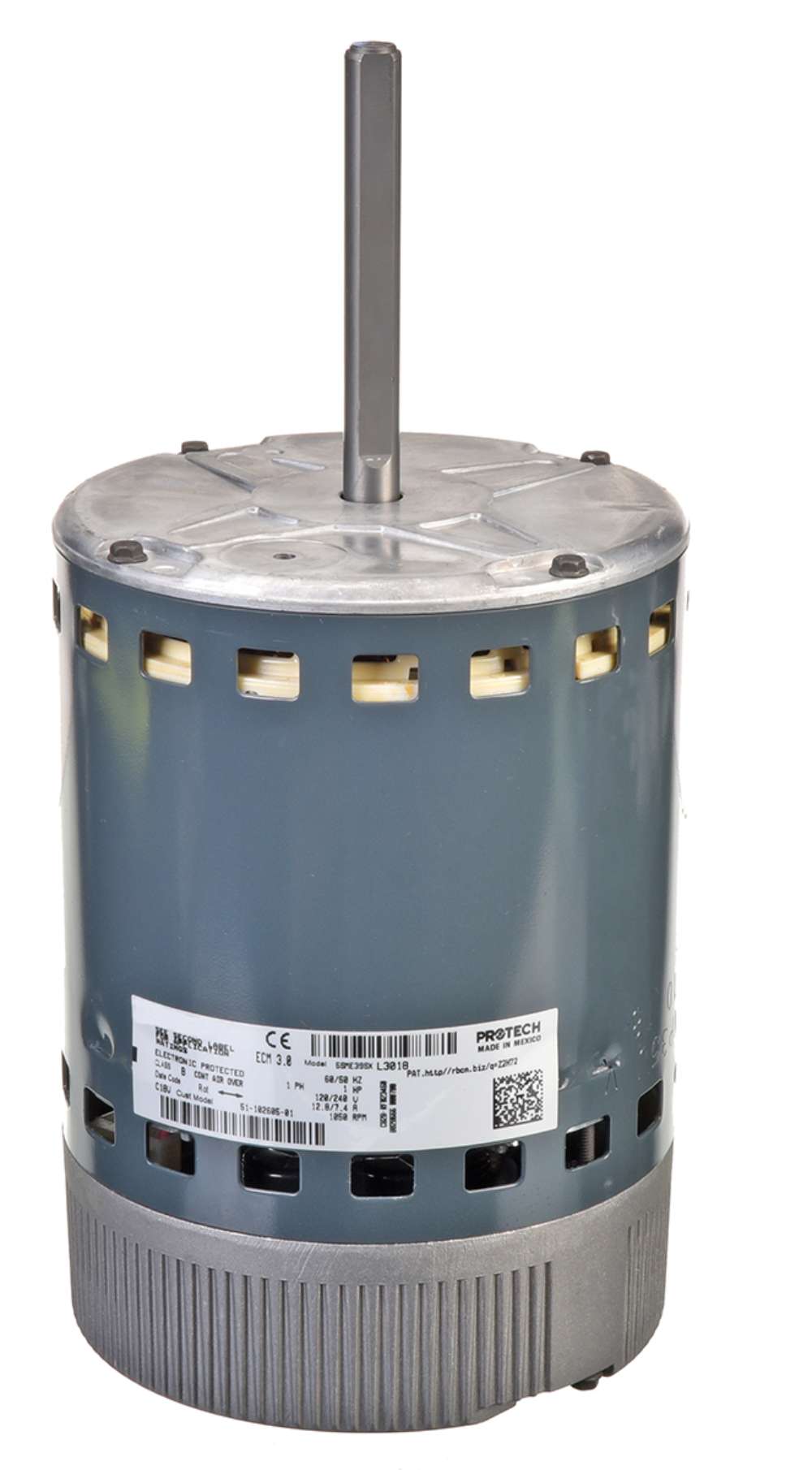

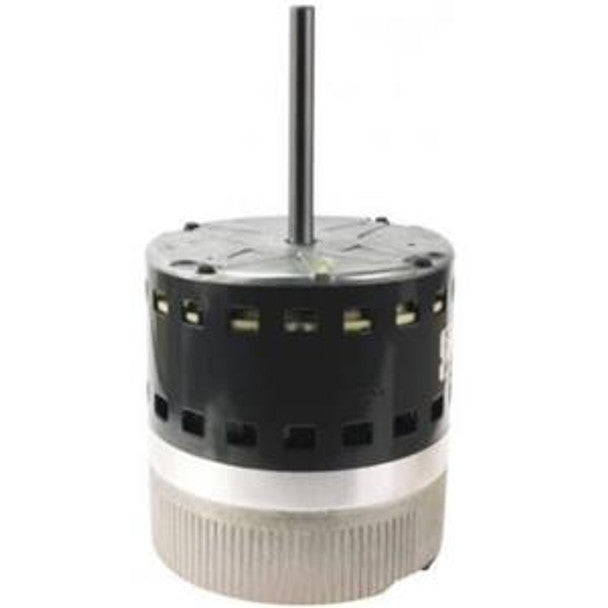

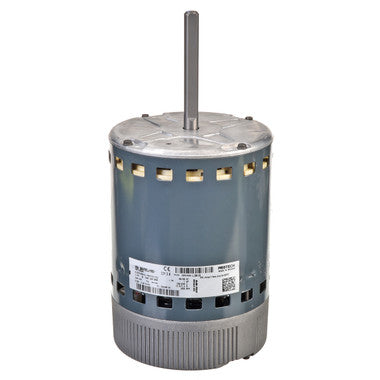

RUUD 51-102605-01 ECM 3.0 Blower Motor - 1 HP

Product Description

The RUUD 51-102605-01 is an ECM 3.0 blower motor with a one horsepower rating. This motor is suitable for direct drive blower applications. It functions at variable speeds and can be powered using either one hundred twenty volts or two hundred thirty volts in single-phase configurations. The motor includes a shell-band mounting feature and a one-half inch diameter shaft.

• Genuine OEM repair part
• Motor Type: ECM 3.0
• Application: Blower

Product Highlights

This high-efficiency motor is ideal for HVAC systems, offering reliability in various blower applications.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-102605-01

Technical Specifications

• Product Type: Blower Motor
• Motor Type: ECM 3.0
• Horsepower: 1
• Number of Speeds: Variable
• Input Voltage: 120/230V
• Number of Phases: 1
• Frequency: 60 Hz
• Shaft Diameter: 1/2 inches
• Motor Body Diameter: 5-9/16 inches
• Keyed/Flat Shaft Length: 3-1/2 inches
• Overall Shaft Length: 3-15/16 inches
• Motor Body Length: 7-11/16 inches
• Overall Motor Length: 11-5/8 inches
• Mounting Type: Shell-band
• Frame Size: 48
• Bearing Type: Ball
• Application: Blower
• Drive Type: Direct Drive
• Replacement Module: 51-103223-01
