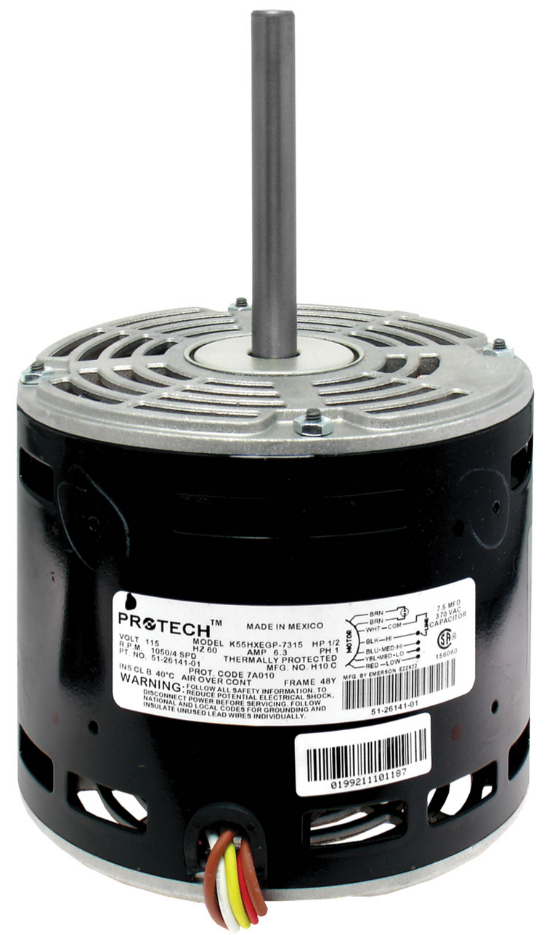

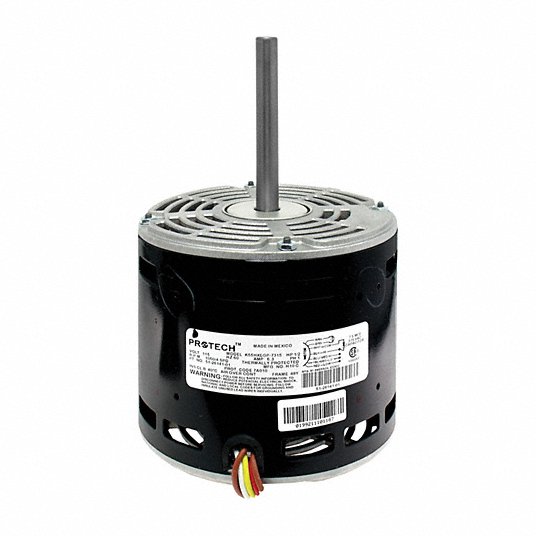

Ruud 51-102500-01 Protech 1/2 hp 120/1/60 Blower Motor

Product Description

The RUUD 51-102500-01 Protech blower motor is an OEM replacement suitable for Rheem and Weathering or Sure Comfort models, and may be used for aftermarket retrofit in other applications. This motor features shell screw and shell band mounting and a direct drive type. It operates at 120V AC and 1075 RPM.

• Shell screw, shell band mounting
• 120 Voltage alternating current
• 1/2 horse power
• Direct drive Type
• 1075 rotations per minute

Product Highlights

This Protech blower motor is a 1/2 horsepower, 120V AC motor with direct drive and 1075 RPM, designed as an OEM replacement for HVAC systems.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 51-102500-01
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Protech
• Part Number: 51-102500-01
• Item model number: 51-102500-01
• Material: copper
• Voltage: 120 Volts
• Horsepower: 0.5 Horsepower
• Item Package Quantity: 1
• Included Components: Blower Motor - 1/2 hp 120/1/60 (1075 rpm/4 speeds)
• Brand: RHEEM-RUUD
• Product Type: OEM Replacement
• Motor: AC Motor
• Compatible Brand: Rheem; Ruud
• Phase: Single
• Motor Design: Permanent Split Capacitor
• Nameplate Horsepower @ 60 Hz: 1/2 hp
• Nameplate RPM @ 60 Hz: 1,075 RPM
• Nameplate Voltage @ 60 Hz: 120V AC
• Frame Size: 48Y
• Full Load Current @ 60 Hz: 6.3 A
• Shaft Diameter: 1/2 in
• Shaft Length: 3-1/2 in
• Capacitor Required: Capacitor Not Included
• Overall Length: 4-13/16 in
• Motor Shaft Rotation: CCWSE
• Number of Shafts: 2
• Number of Speeds: 4
• Mounting Type: Belly Band
• Bearing Type: Sleeve
• Body Diameter: 5.7 in
• Drive Type: Direct Drive
• Frequency: 60 Hz
• Application: Fan/Blower
• Sub Application: Fan/Blower
• Country of Origin: Mexico (subject to change)
• Useage: Blower
• RPM: 1075
• Speeds: 4
