RUUD 51-102182-04 Blower Motor 3/4 HP 460V Replacement MPN

Product Description

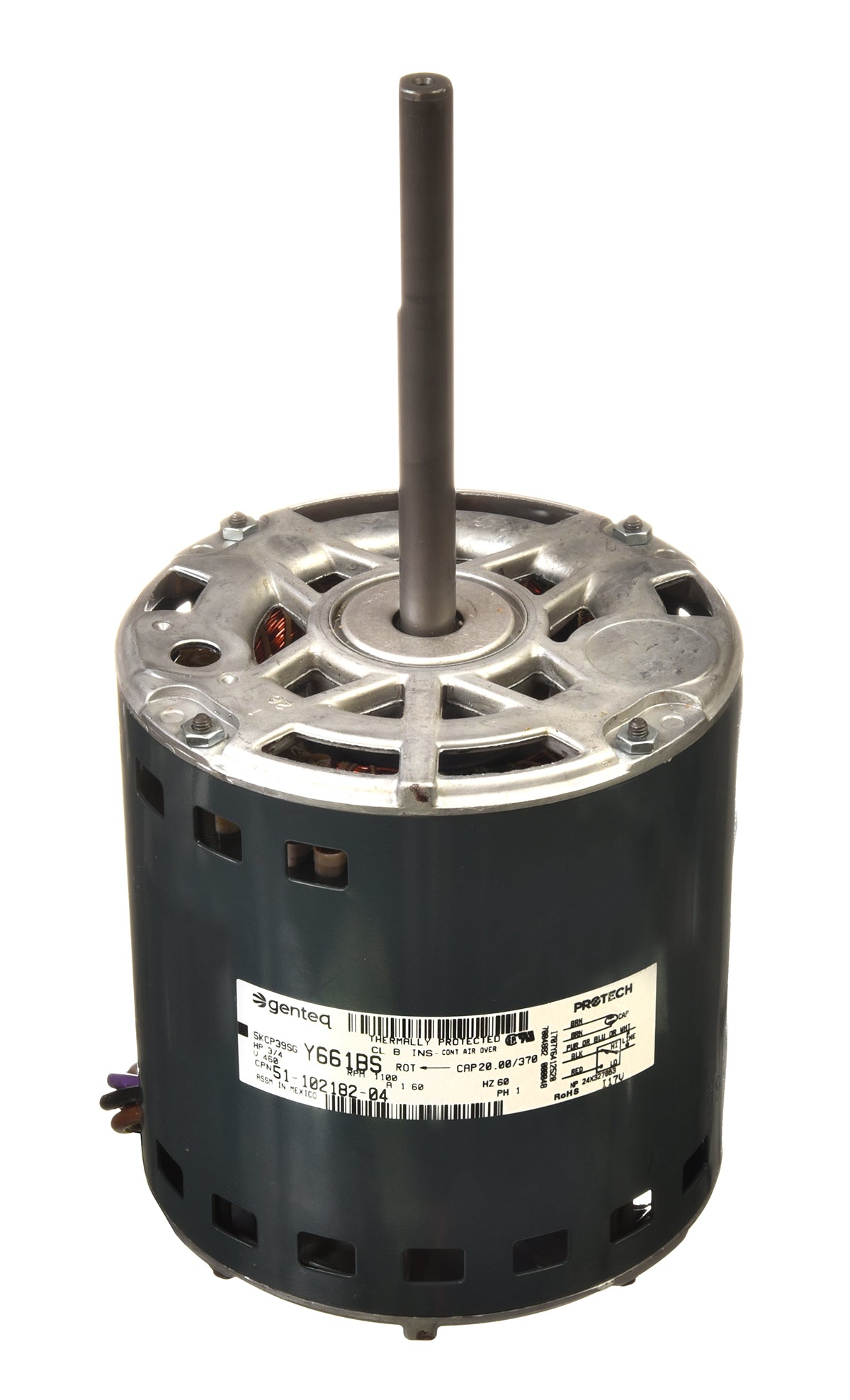

The RUUD 51-102182-04 is a blower motor suitable for HVAC applications. It operates on an input voltage of four hundred sixty volts and at a frequency of sixty hertz. This motor delivers three-fourths of a horsepower and has two speed settings. The rotation direction is counter-clockwise. This unit is designed for shell-band mounting and utilizes a sleeve bearing type. It serves as an OEM replacement for several models, including Rheem, Ruud, and Weatherking.

• Power: 3/4 HP
• Voltage: 460V
• Rotation: CCW

Product Highlights

This blower motor is built to meet the requirements of various HVAC systems. With its reliable performance and compatibility, it's an essential component for maintaining optimal air flow.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-102182-04

Technical Specifications

• Motor Application: Blower PSC
• Horse Power: 3/4
• Number of Speeds: 2
• High Speed (RPM): 1075
• Input Voltage: 460V
• Frequency: 60 Hz
• Number of Phases: 1
• Rotation Direction (OSE): CCW
• Run Capacitor: 20/370 uF/V
• FLA at 460V: 1.6 A
• LRA at 460V: 2.6 A
• Shaft Diameter: 1/2 in.
• Keyed/Flat Shaft Length: 2 in.
• Overall Shaft Length: 5 in.
• Motor Body Diameter: 5-5/8 in.
• Motor Body Length: 6 in.
• Overall Motor Length: 11 in.
• Mounting Type: Shell-band
• Frame Size: 48
• Bearing Type: Sleeve
• Drive Type: Direct Drive
