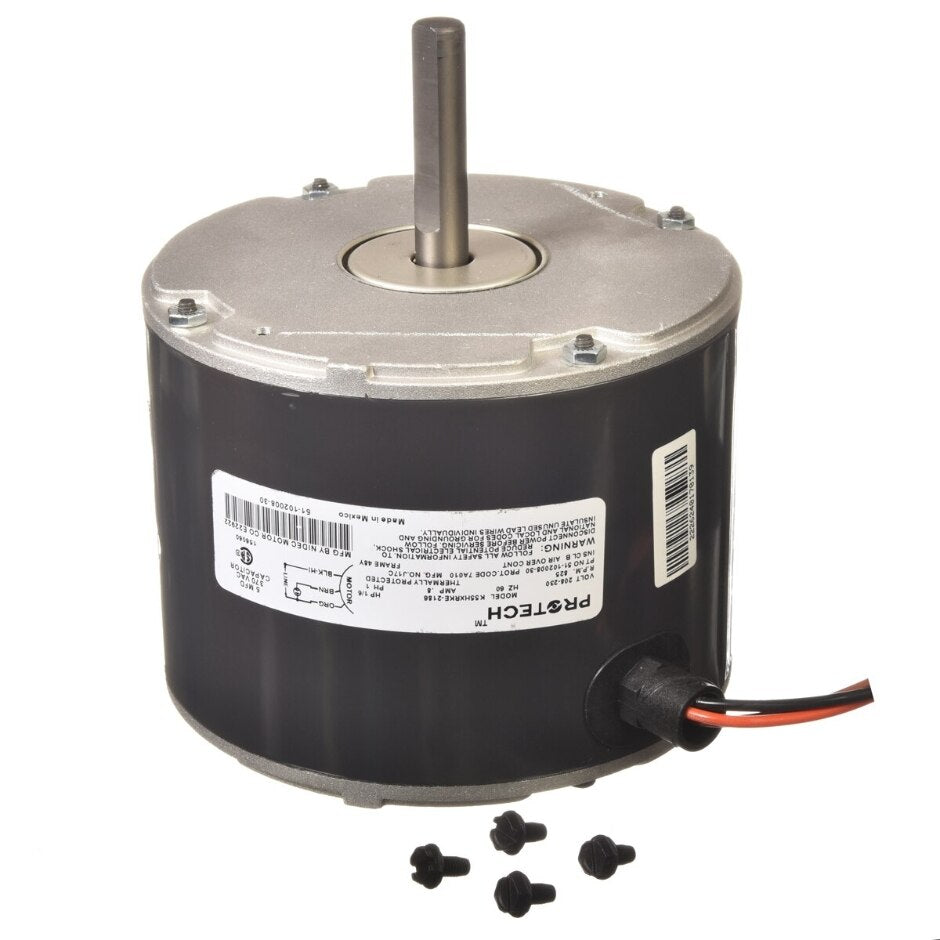

RUUD 51-102008-30 Condenser Motor Power 1/6 Horsepower

Product Description

The RUUD 51-102008-30 is a condenser motor suitable for HVAC systems. It operates on single-phase electrical supply and can support several input voltages. This motor has direct drive capability and is designed for single-speed performance. It includes ball bearings for smooth operation and features a run capacitor for enhanced efficiency.

• Application: Suitable for condenser units
• Rotation direction: Counterclockwise (CCW)
• Ball bearing type for improved durability

Product Highlights

This motor is ideal for various HVAC applications that require reliable performance under different voltage conditions.

Product Information

Standard Information

• Application: Condenser
• Rotation Direction: CCW

Technical Specifications

• Drive Type: Direct Drive
• FLA at 208V (A): 0.80
• FLA at 220V (A): 0.80
• FLA at 230V (A): 0.80
• Frame Size: 48
• Frequency (Hz): 60
• Speed: 825 RPM
• Horsepower: 1/6
• Input Voltage: 208 | 220 | 230 V
• Keyed/Flat Shaft Length (in.): 1-7/8
• LRA at 208V (A): 1.50
• LRA at 220V (A): 1.50
• LRA at 230V (A): 1.50
• Motor Body Diameter (in.): 5-5/8
• Motor Body Length (in.): 4-5/16
• Mounting: End-boss | Shell-band
• Number of Phases: 1
• Number of Speeds: 1
• Overall Motor Length (in.): 6-9/16
• Overall Shaft Length (in.): 2-1/4
• Run Capacitor (uF/V): 5/370
• Shaft Diameter (in.): 1/2
