RUUD 51-102008-19 OEM Rheem, Ruud, Sure Comfort, Weather King, Condenser Motor 1/4HP

Product Description

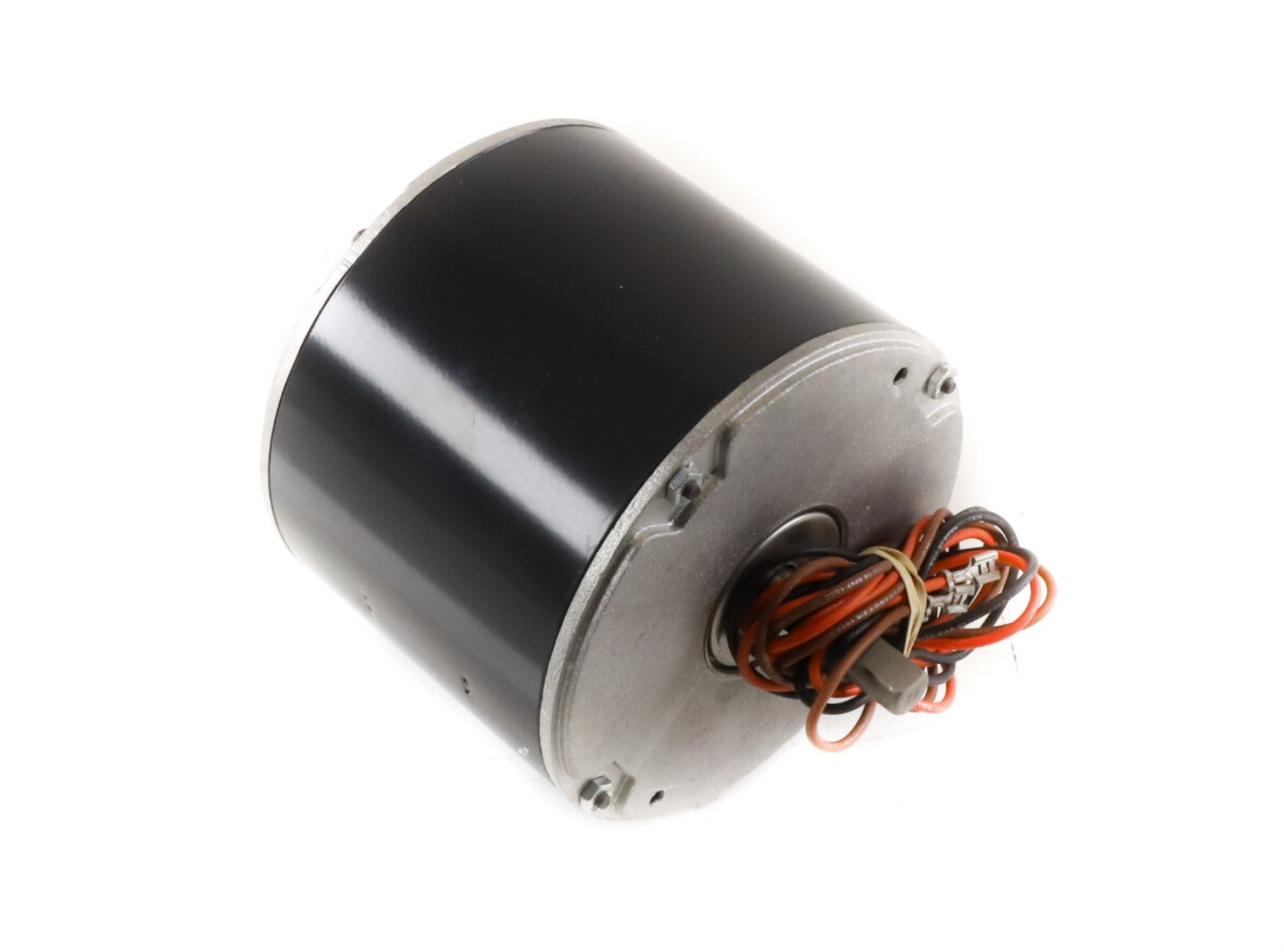

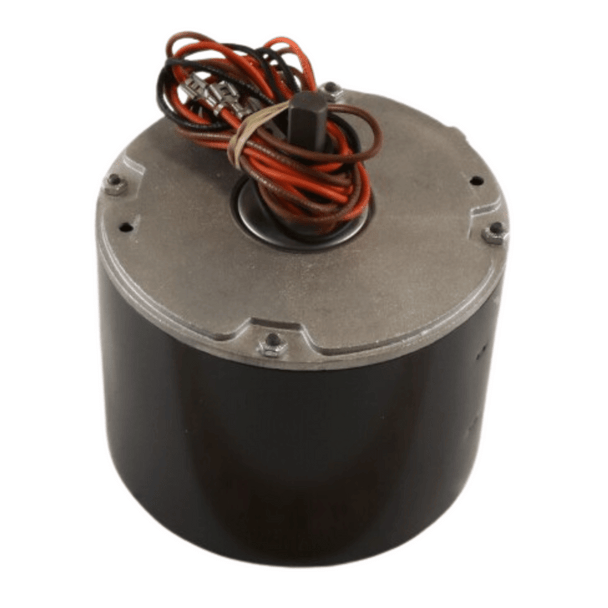

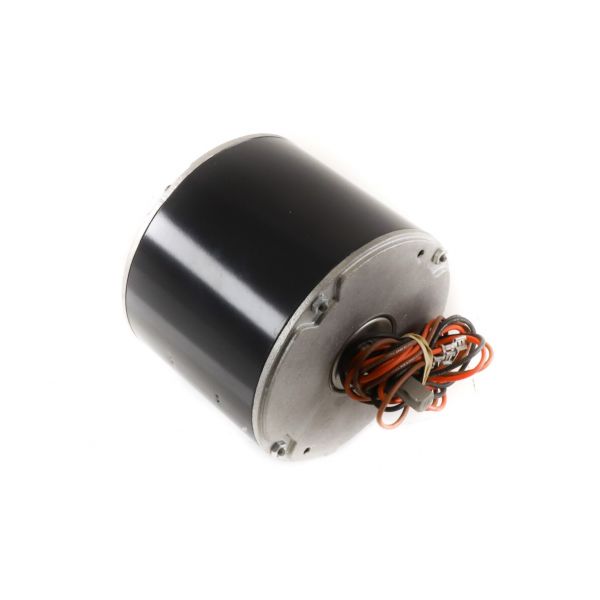

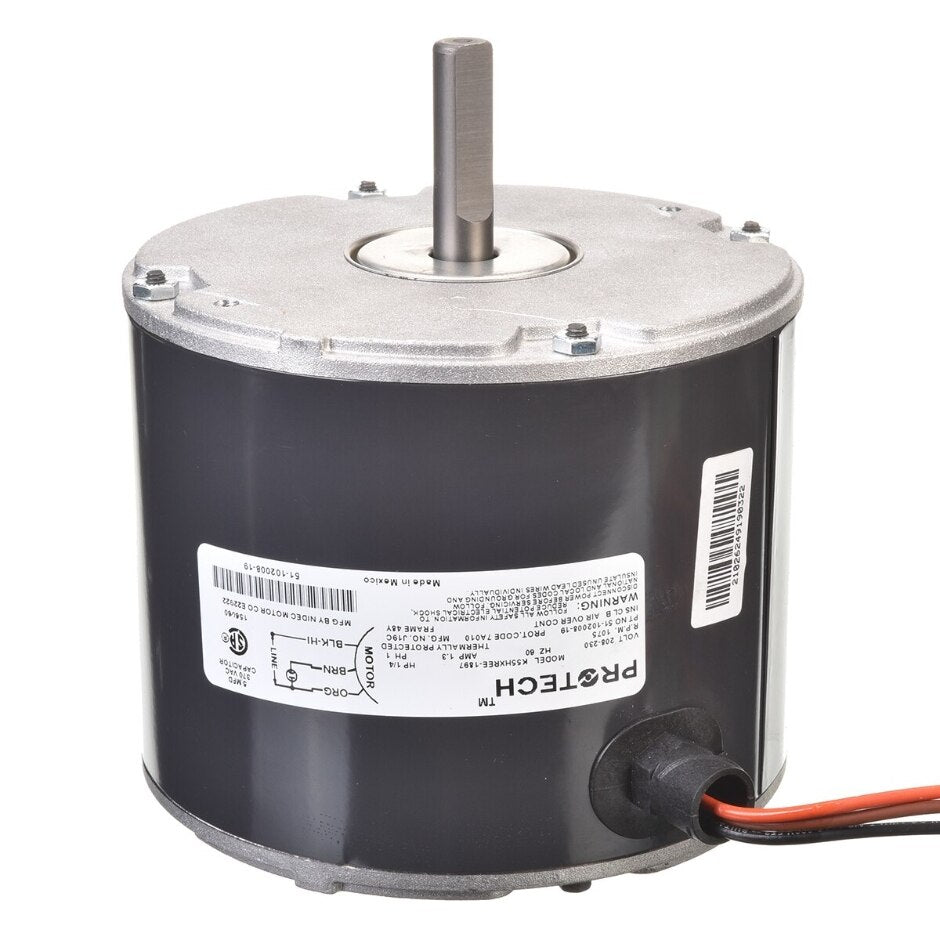

The RUUD 51-102008-19 OEM condenser motor is a replacement part that works with Rheem, Ruud, Sure Comfort, and Weather King systems. This motor has a power of one quarter horsepower and runs on 208, 220, or 230 volts, operating at a speed of 1075 RPM. It is suitable for condenser applications and features a direct drive and single-speed design for effective operation.

• Compatible with various HVAC systems.
• Efficient single-speed performance.
• Direct drive ensures reliable functionality.

Product Highlights

This motor is crucial for replacing non-working motors in HVAC systems, providing a reliable solution for cooling needs.

Product Information

Standard Information

• Application: Condenser
• Motor Type: Motor

Technical Specifications

• Horse Power: 1/4 HP
• Input Voltage: 208 | 220 | 230 V
• Frame Size: 48
• Overall Motor Length: 6-5/16 inches
• Motor Body Diameter: 5-5/8 inches
• Shaft Diameter: 1/2 inches
• Shaft Length: 1-3/4 inches
• Rotation Direction: CCW
• Speed: 1
• FLA at 208V: 1.30 A
• FLA at 220V: 1.30 A
• FLA at 230V: 1.30 A
• LRA at 208V: 2.60 A
• LRA at 220V: 2.60 A
• LRA at 230V: 2.60 A
• Run Capacitor: 5/370 uF/V
