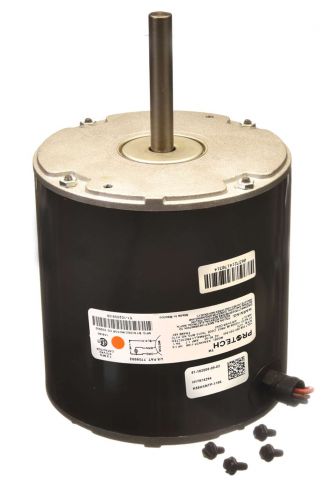

RUUD 51-102008-09 Condenser Motor 1/3 HP 208/230V Replacement MPN

Product Description

The RUUD condenser motor with MPN 51-102008-09 is essential for HVAC systems. With a capacity of one-third horsepower and a speed of one thousand seventy-five RPM, this motor efficiently circulates refrigerant. It operates on 208/230 voltage in a single-phase configuration, making it suitable for residential and commercial applications.

• Horsepower: 1/3 HP
• Speed: 1075 RPM
• Voltage: 208/230V, single-phase

Product Highlights

This motor is reliable for maintaining optimal HVAC performance.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-102008-09

Technical Specifications

• Item Number: 51-102008-09
• Application: Condenser
• Bearing Type: Ball
• Drive Type: Direct Drive
• FLA at 230V (A): 1.70
• Frame Size: 48
• Frequency (Hz): 50 | 60
• High Speed (RPM): 1075
• HP: 1/3
• Input Voltage (V): 208 | 220 | 230
• Keyed/Flat Shaft Length (in.): 2-1/4
• LRA at 230V (A): 3.20
• Motor Body Diameter (in.): 5-5/8
• Motor Body Length (in.): 5-13/16
• Mounting: End-boss | Shell-band
• No. of Phases: 1
• No. of Speeds: 1
• Overall Motor Length (in.): 8-3/4
• Overall Shaft Length (in.): 3
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 7.5/370
• Shaft Diameter (in.): 1/2
