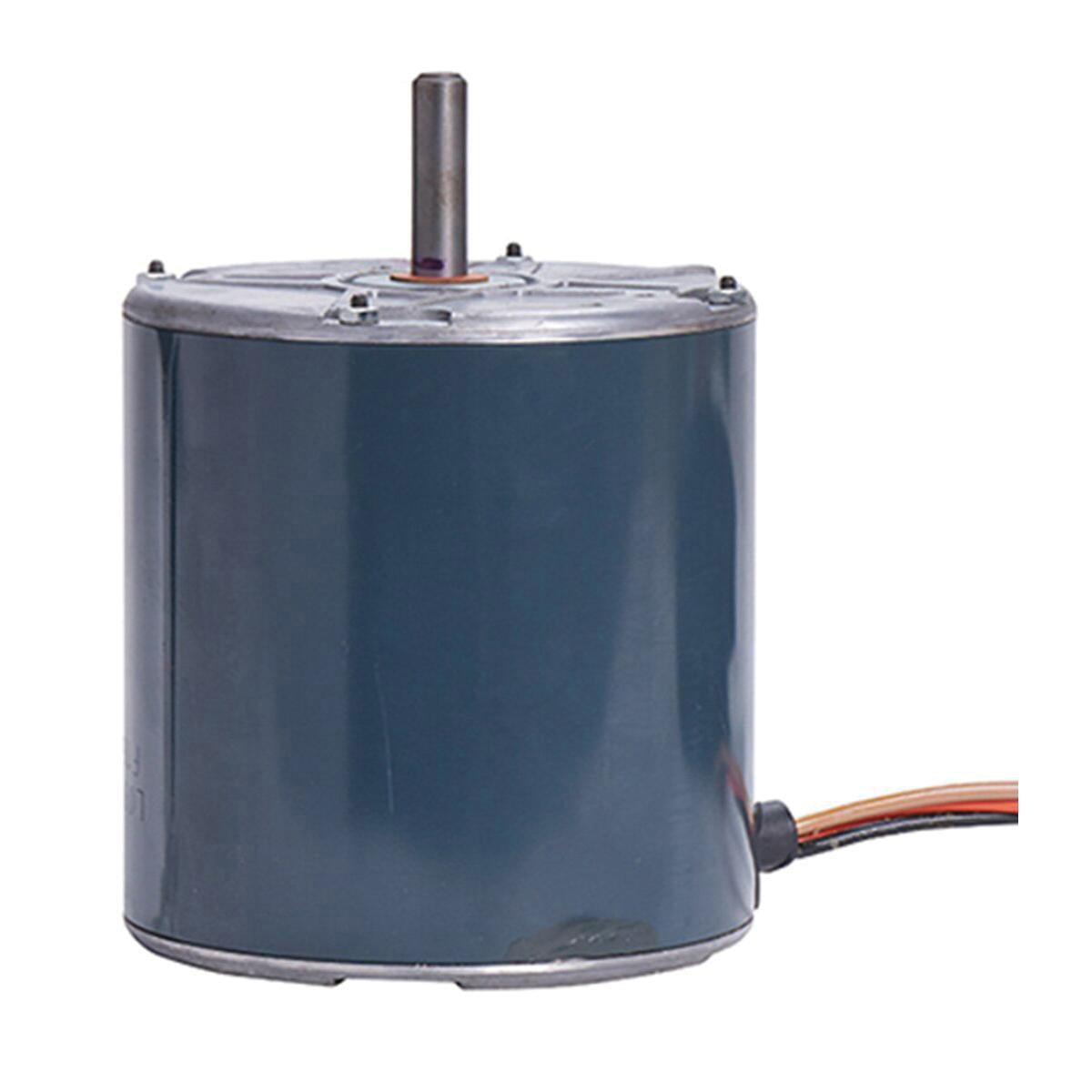

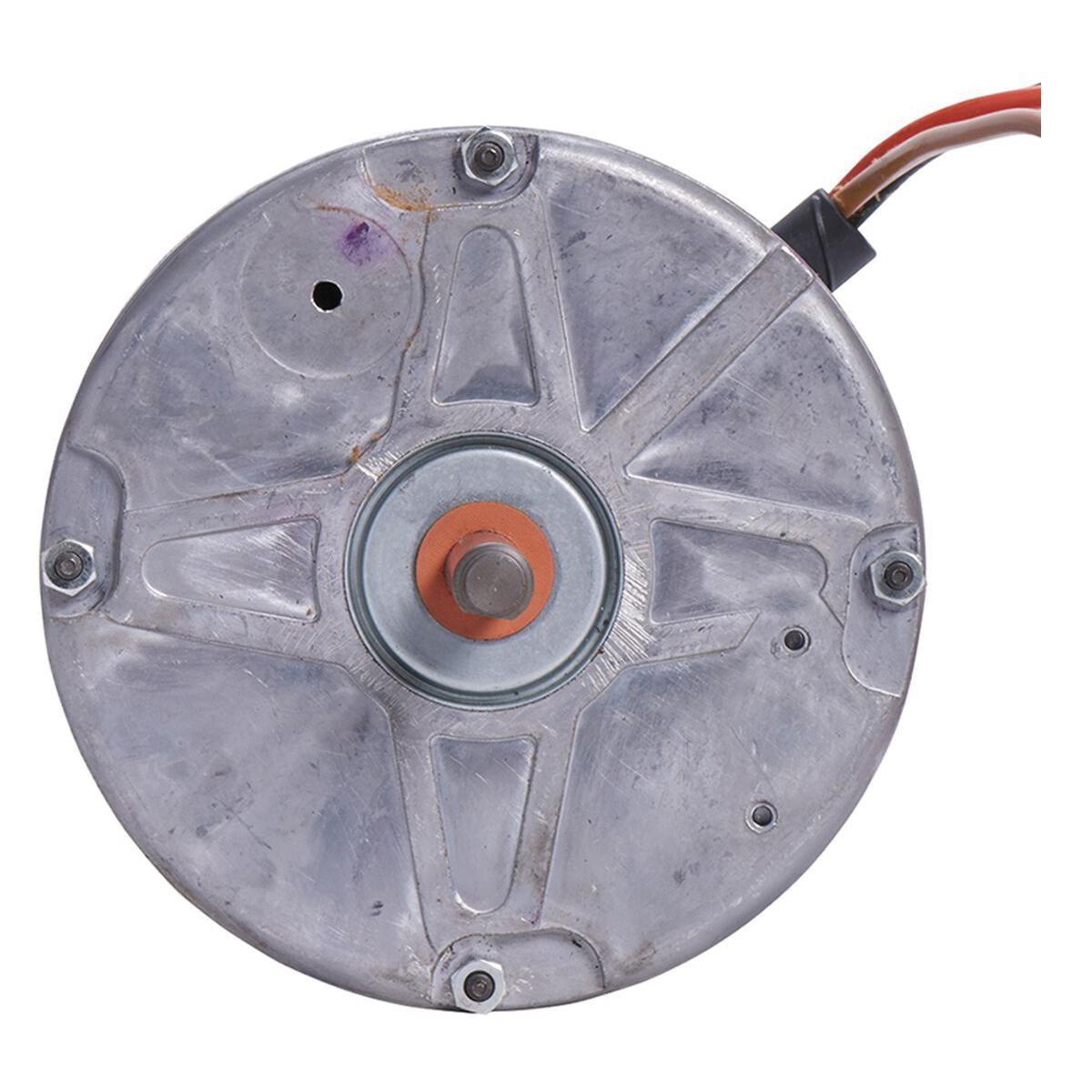

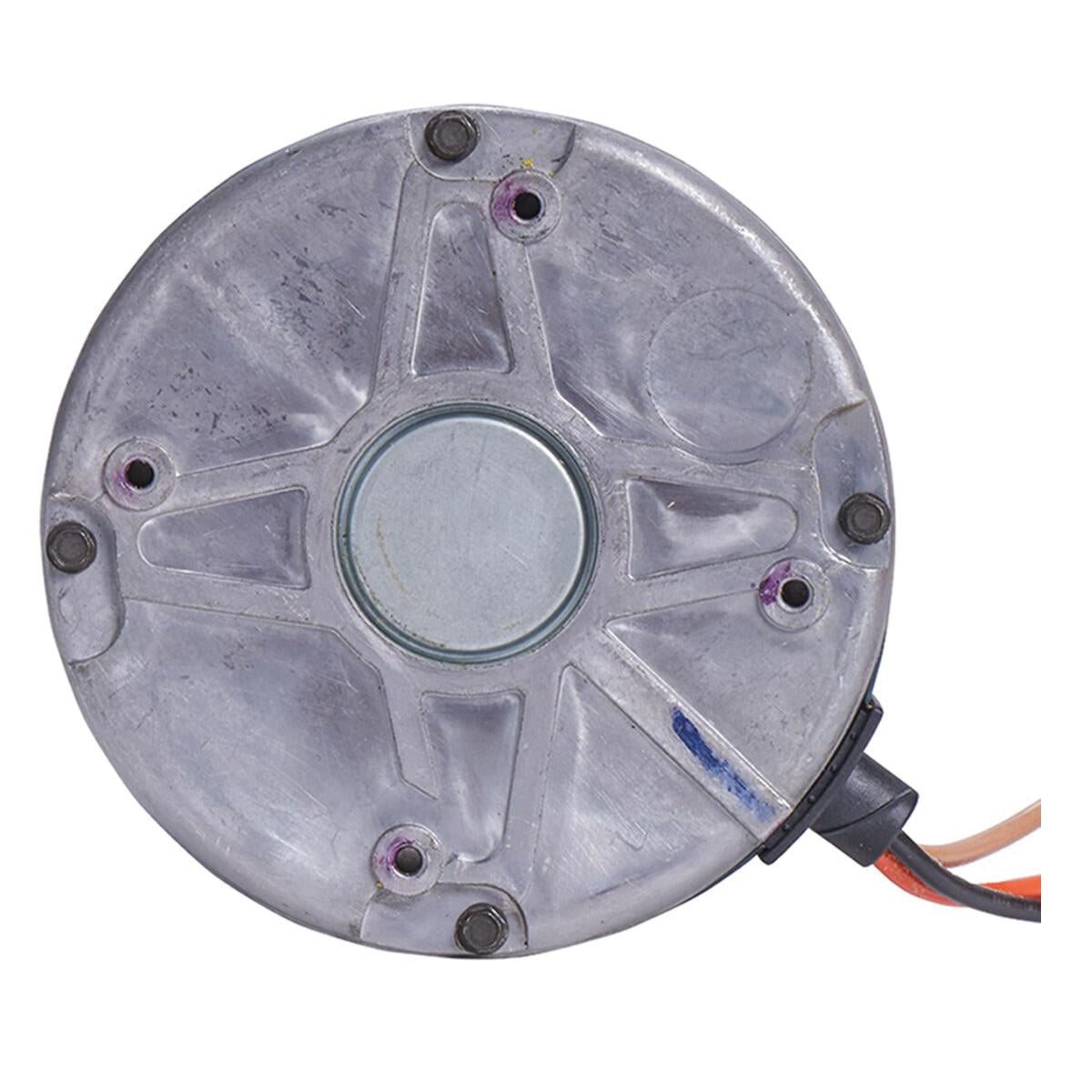

Ruud 51-101774-38 Condenser Motor 1/5 hp 380 to 415/460 V

Product Description

The Ruud 51-101774-38 is a condenser motor suitable for various applications in HVAC systems. This motor functions efficiently on voltages ranging from three hundred eighty to four hundred fifteen/ four hundred sixty volts, operating at fifty or sixty Hertz with a single phase. It has a power output of one-fifth horsepower and runs at a speed of eight hundred twenty-five revolutions per minute.

• Power Rating: 1/5 hp
• Speed: 825 rpm
• Voltage Range: 380 to 415/460 V

Product Highlights

The Ruud condenser motor is ideal for direct drive systems, ensuring reliability and performance in cooling applications.

Product Information

Standard Information

• Brand: Ruud
• MPN: 51-101774-38

Technical Specifications

• Horsepower: 1/5 hp
• Input Voltage: 380 to 415/460 V
• Frequency: 50/60 Hz
• Phase: 1
• Speed: 825 rpm
• Frame Size: 48
• Shaft Size: 1/2 in Dia x 1-3/4 in L
• Bearing Type: Ball
• Mounting Type: Shell Band
• Overall Depth: 7-3/4 in
• Overall Width: 5-5/8 in
• Motor Body Length: 6 in
• Rotation: Counter-Clockwise
• Current: 0.6 A
