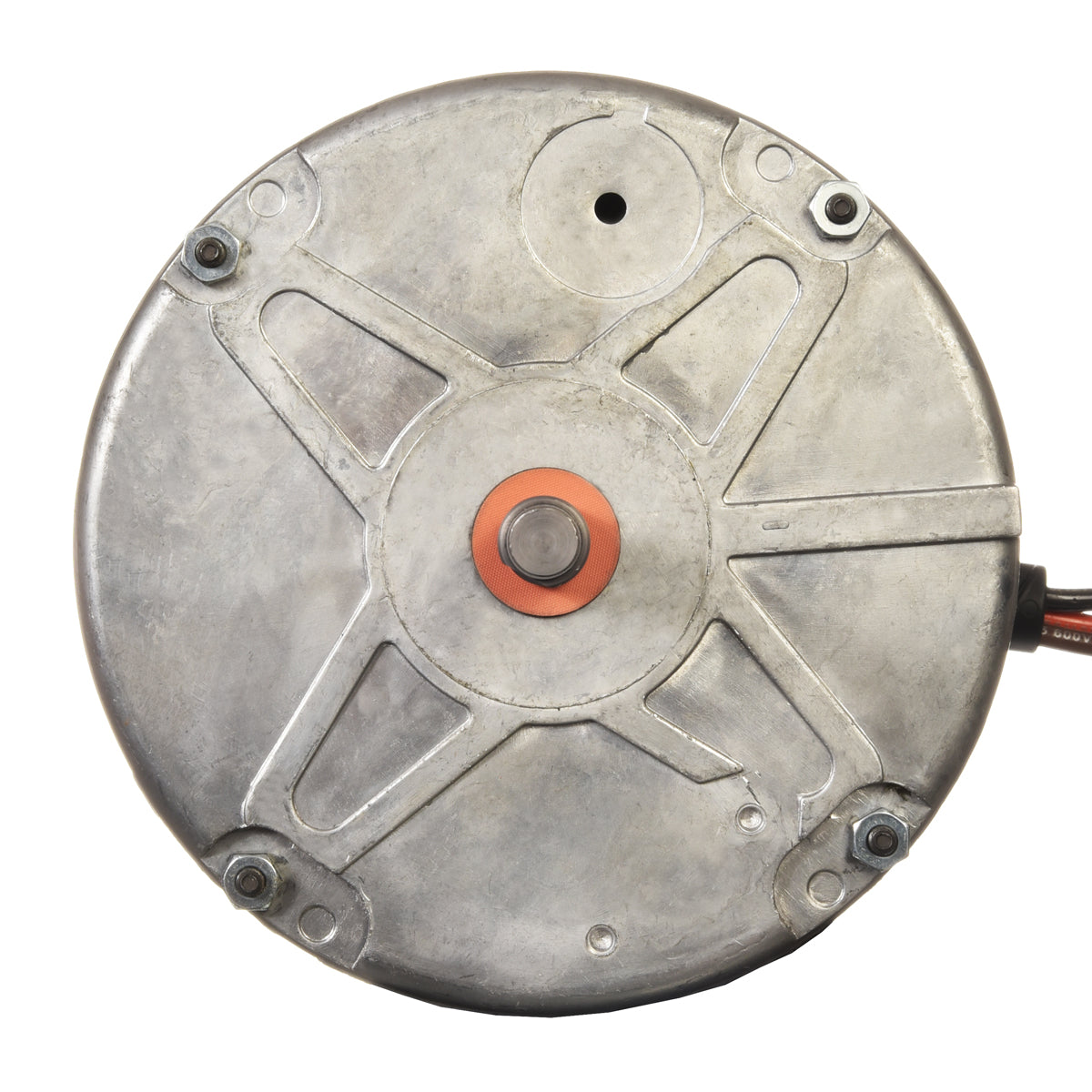

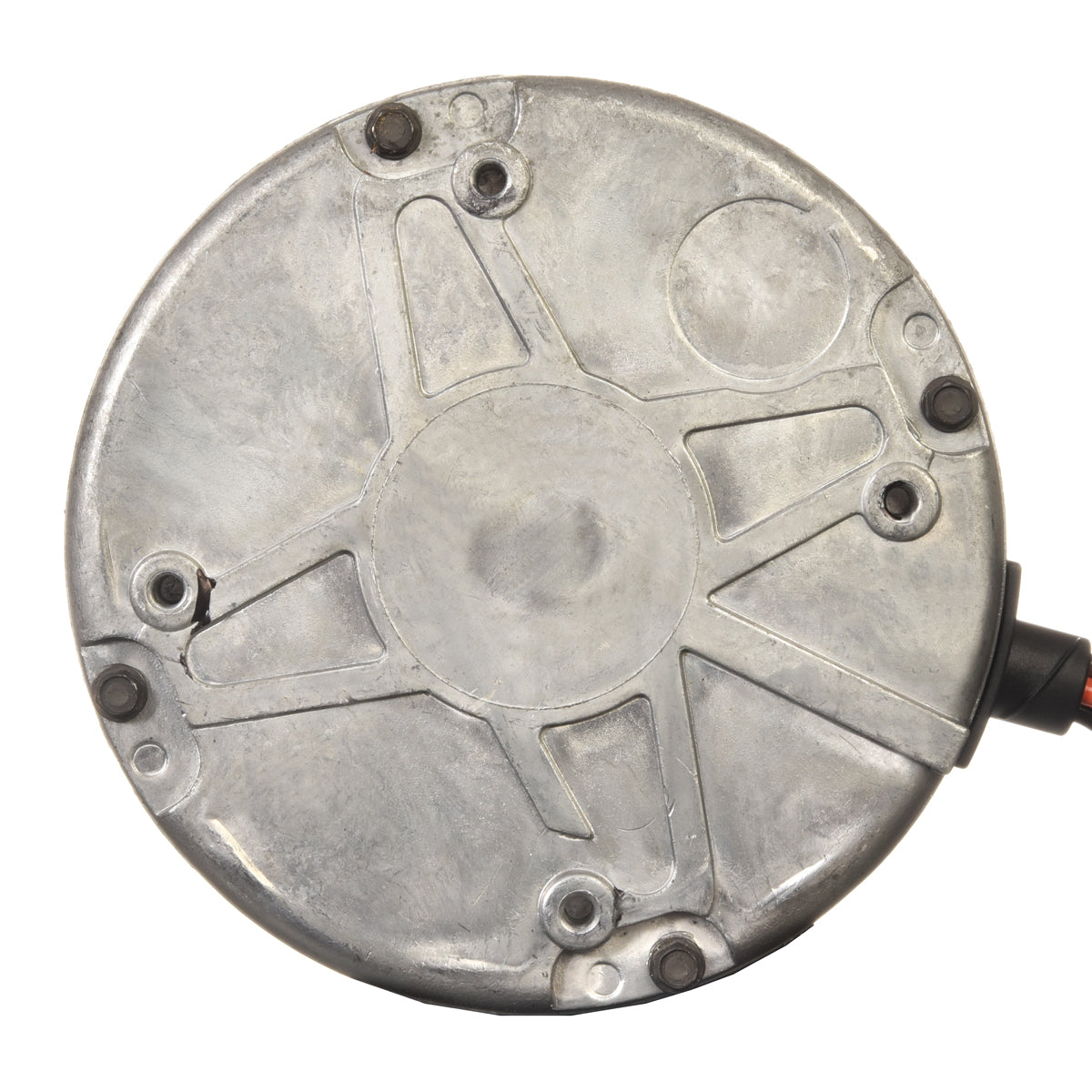

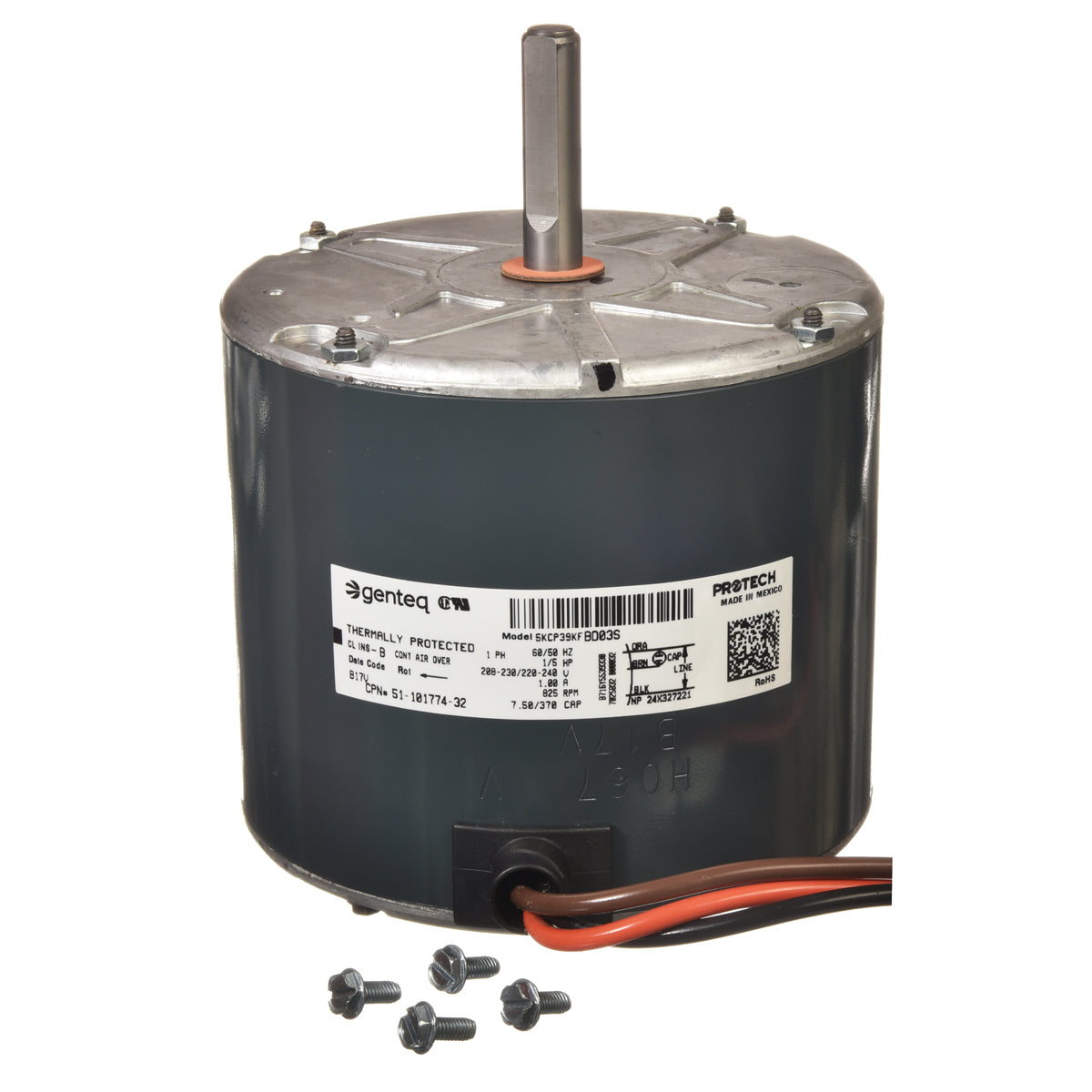

RUUD 51-101774-31 Condenser Motor 1/5 HP 825 RPM

Product Description

The RUUD 51-101774-31 is a condenser motor used as an OEM replacement for Rheem and Ruud units. This PSC type motor operates at 825 RPM with a horsepower rating of 1/5. Ideal for condenser applications, it can also serve as an aftermarket retrofit for various other uses.

• Motor Type: Condenser Motor
• Designed for single speed operation
• High speed of 825 RPM

Product Highlights

This motor is suitable for use in various HVAC systems ensuring reliable performance.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-101774-31

Technical Specifications

• Motor Type: Condenser Motors
• Horse Power: 1/5
• Number of Speeds: 1
• High Speed (RPM): 825
• Input Voltage: 208-230/1/50-60
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 7.5/370
• FLA at 230V (A): 1
• LRA at 230V (A): 1.2
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 1-1/2
• Overall Shaft Length (in.): 2
• Motor Body Length (in.): 4-15/16
• Overall Motor Length (in.): 6-15/16
• Mounting Type: Shell-band/End-boss
• Frame Size: 48
• Bearing Type: Ball
