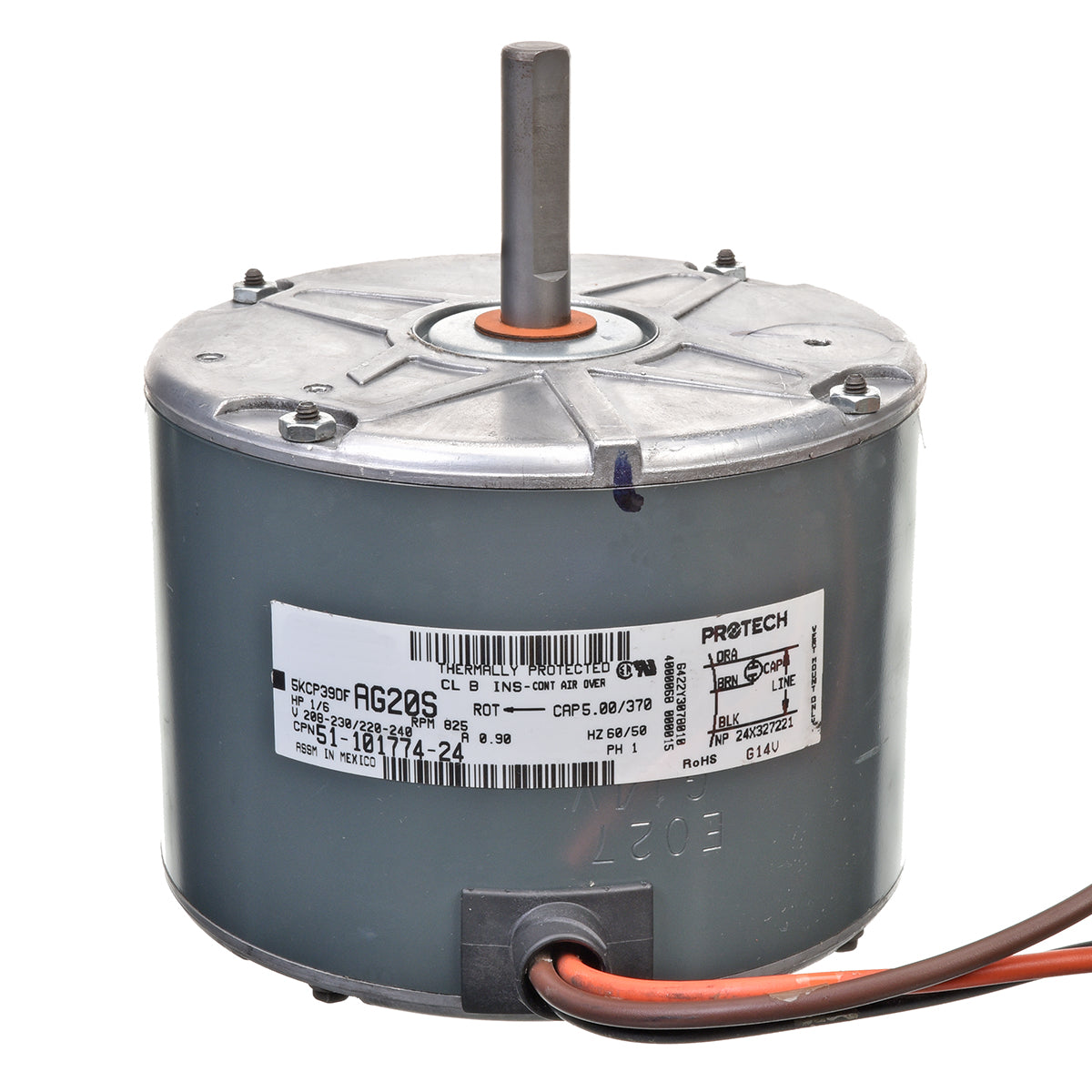

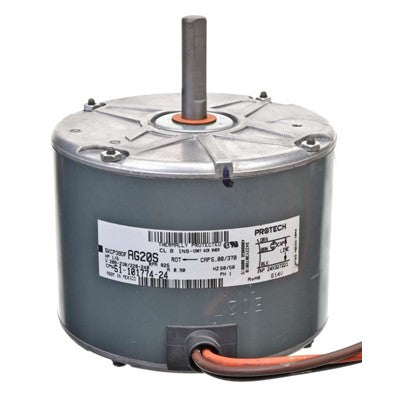

RUUD 51-101774-24 Condenser Fan Motor 1/6 HP

Product Description

The RUUD 51-101774-24 is a condenser fan motor designed for reliable performance as an OEM replacement in Rheem, Ruud, and Weatherking models. This motor may also be used in various aftermarket retrofit applications. Operating at a voltage of two hundred eight to two hundred thirty volts with a frequency of fifty to sixty hertz, it provides one sixth horsepower. The motor features a single speed, running at eight hundred twenty-five RPM with a counter-clockwise rotation.

• OEM replacement for Rheem, Ruud, and Weatherking models.
• Suitable for various aftermarket applications.
• Designed for condenser PSC applications.

Product Highlights

This motor is suitable for various condensing unit needs and ensures efficient cooling system operation.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-101774-24

Technical Specifications

• Motor Application: Condenser PSC
• Horse Power: 1/6
• Number of Speeds: 1
• High Speed (RPM): 825
• Input Voltage: 208-230/1/50-60
• Rotation Direction: CCW
• Run Capacitor: 5/370
• FLA at 230V: 0.9
• LRA at 230V: 1.2
• Shaft Diameter: 1/2
• Motor Body Diameter: 5-5/8
• Keyed/Flat Shaft Length: 1-1/2
• Overall Shaft Length: 2
• Motor Body Length: 4-3/16
• Overall Motor Length: 6-3/16
• Mounting Type: Shell-band/End-boss
• Frame Size: 48
• Bearing Type: Sleeve
