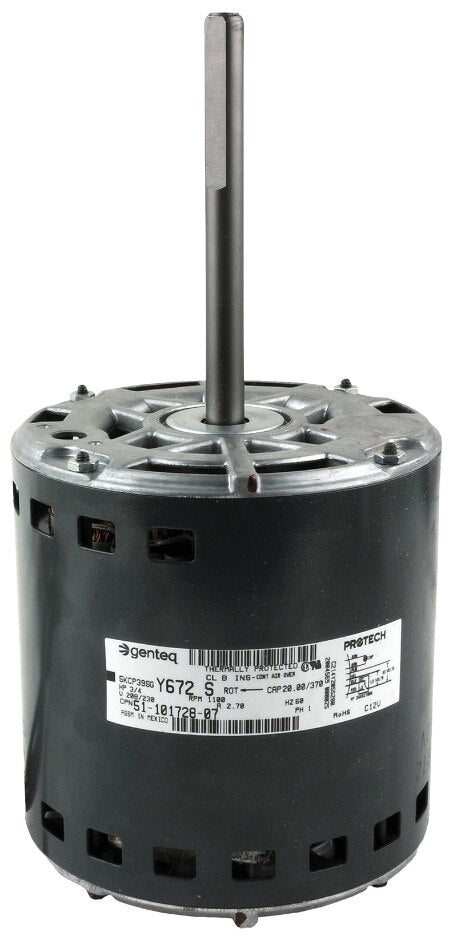

Ruud 51-101728-07 Blower Motor 3/4HP 208-230V

Product Description

The Ruud 51-101728-07 blower motor is suitable for HVAC systems. This motor operates at three-fourths horsepower and is designed for a voltage range of two hundred eight to two hundred thirty volts. The motor runs at a frequency of sixty hertz, featuring two speeds with a high speed of one thousand seventy-five RPM.

• 3/4 HP motor functioning at 208-230V
• High speed performance of 1075 RPM
• Specifically built for direct drive blower applications

Product Highlights

This motor serves well in various blower applications, ensuring reliable performance with its direct drive design.

Product Information

Standard Information

• MPN: 51-101728-07
• Application: Blower

Technical Specifications

• Bearing Type: Sleeve
• Drive Type: Direct Drive
• FLA at 208V (A): 2.70
• FLA at 230V (A): 2.70
• Frame Size: 48
• High Speed (RPM): 1075
• Horsepower: 3/4
• Input Voltage: 208 | 230 V
• Keyed/Flat Shaft Length (in.): 2
• LRA at 208V (A): 5.70
• LRA at 230V (A): 5.70
• Motor Body Diameter (in.): 5-39/64
• Motor Body Length (in.): 6
• Mounting Type: Shell-band
• Number of Phases: 1
• Number of Speeds: 2
• Overall Motor Length (in.): 11
• Overall Shaft Length (in.): 5
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 20/370
• Shaft Diameter (in.): 1/2
