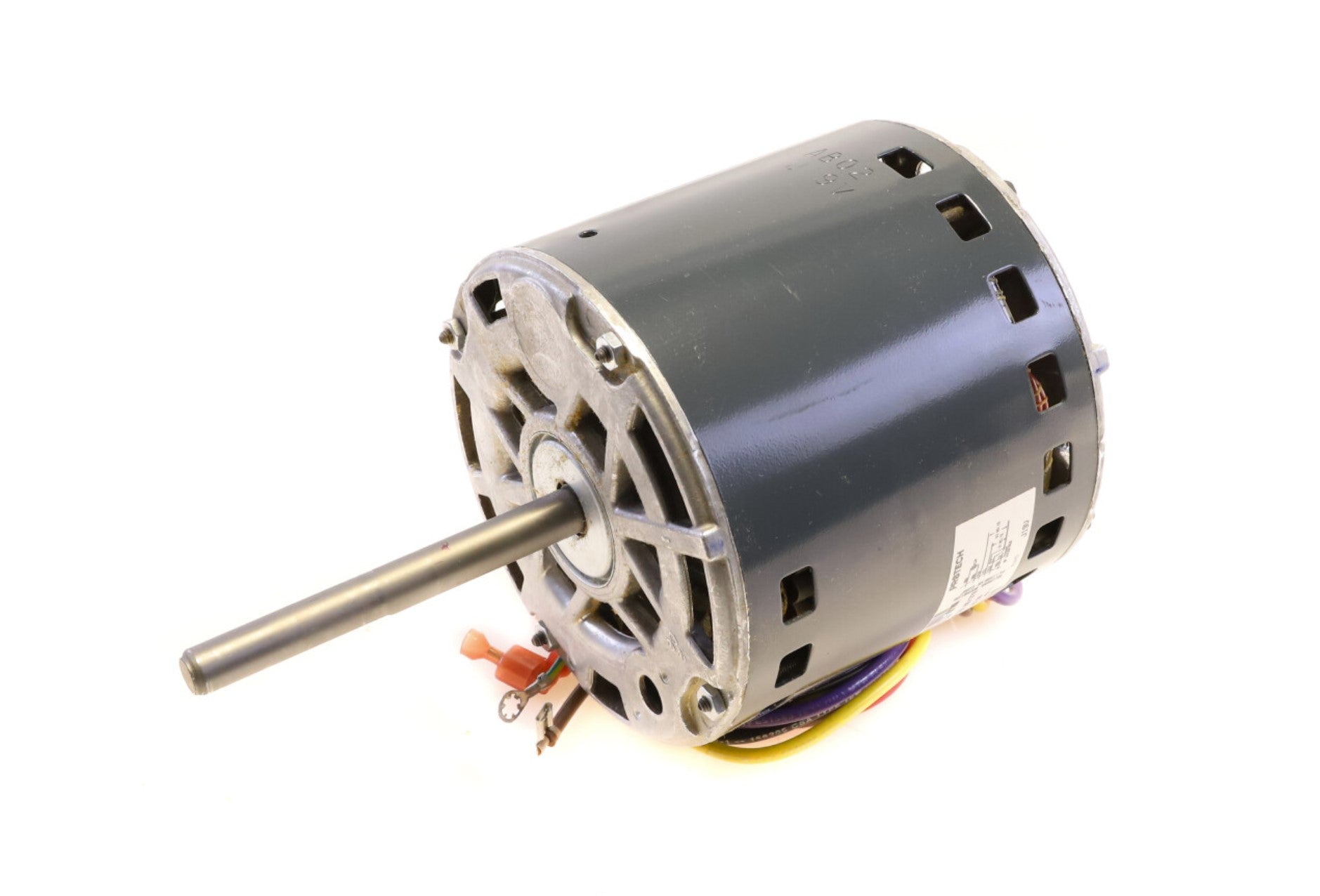

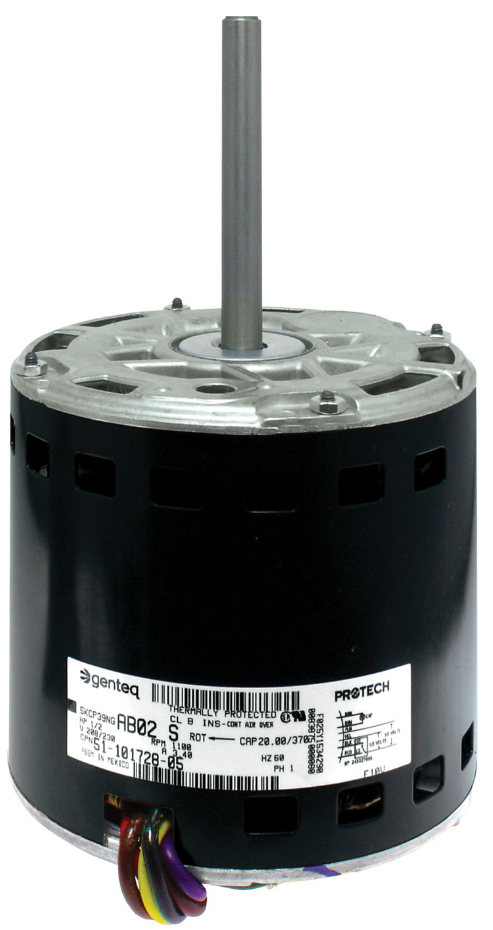

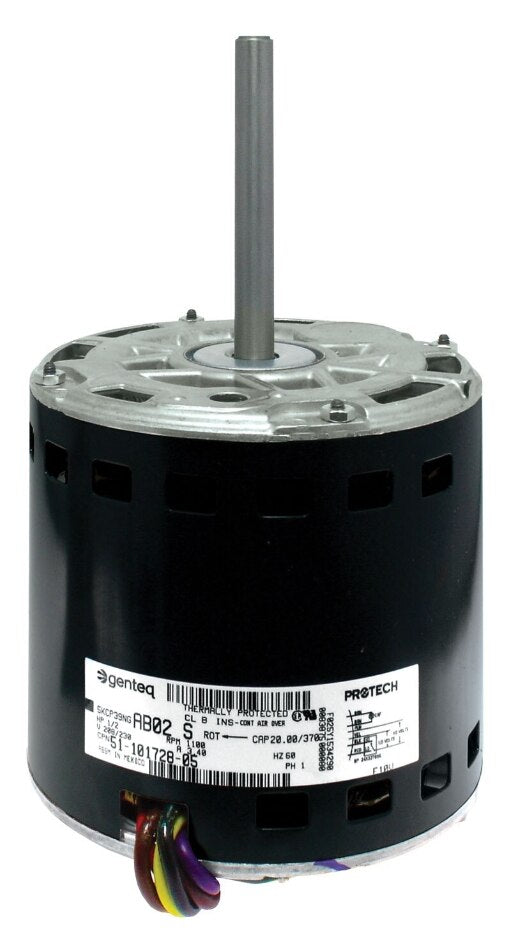

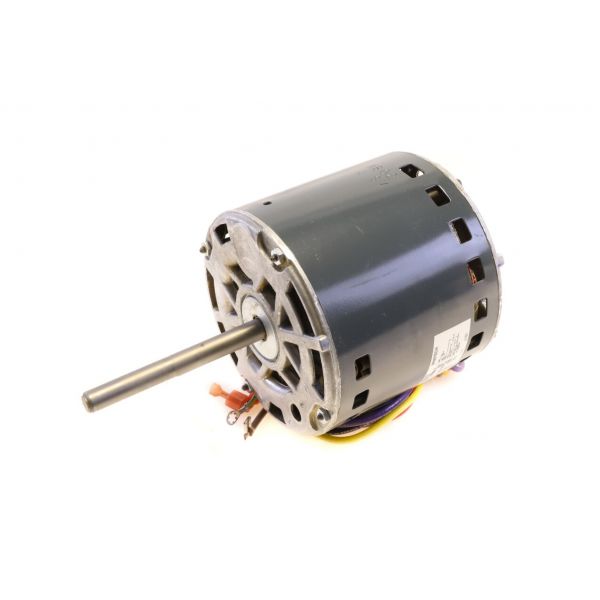

RUUD 51-101728-05 Blower Motor 1/2 HP 208-230V 1 Phase 51-101728-05

Product Description

The RUUD 51-101728-05 is a blower motor used in HVAC systems. It operates on 208/230V single-phase power and outputs 1/2 horsepower. This model features two speeds and a direct drive system. It rotates counter-clockwise (CCW) and reaches a maximum speed of 1075 RPM. This blower motor is ideal for air handling units and furnaces where air circulation is required.

• Horsepower: 1/2 HP
• Input Voltage: 208/230V Single Phase
• Rotation: CCW

Product Highlights

The RUUD 51-101728-05 blower motor is reliable and efficient for various HVAC applications.

Product Information

Standard Information

• Manufacturer Part Number: 51-101728-05
• Application: Blower

Technical Specifications

• Bearing Type: Sleeve
• Drive Type: Direct Drive
• Full Load Amperage (230V): 3.40 A
• Frame Size: 48
• Frequency: 60 Hz
• High Speed: 1075 RPM
• Shaft Length (Keyed/Flat): 2 in.
• Locked Rotor Amperage (230V): 7.90 A
• Motor Body Diameter: 5-5/8 in.
• Motor Body Length: 5-1/4 in.
• Mounting Type: Shell-band
• Number of Phases: 1
• Number of Speeds: 2
• Overall Motor Length: 9-1/2 in.
• Overall Shaft Length: 4-1/4 in.
• Run Capacitor: 20/370 uF/V
• Shaft Diameter: 1/2 in.
• Height (Approximate): 7.05 in.
• Length (Approximate): 14.65 in.
• Weight (Approximate): 16.60 lbs
