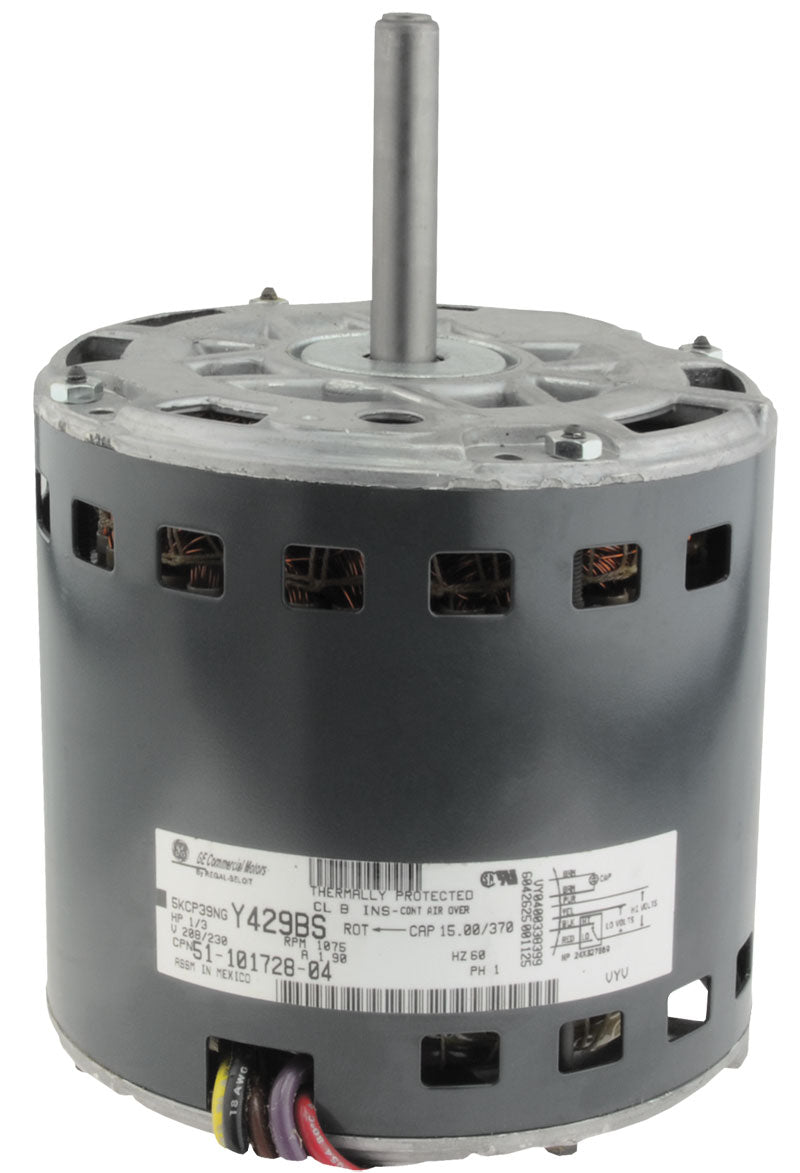

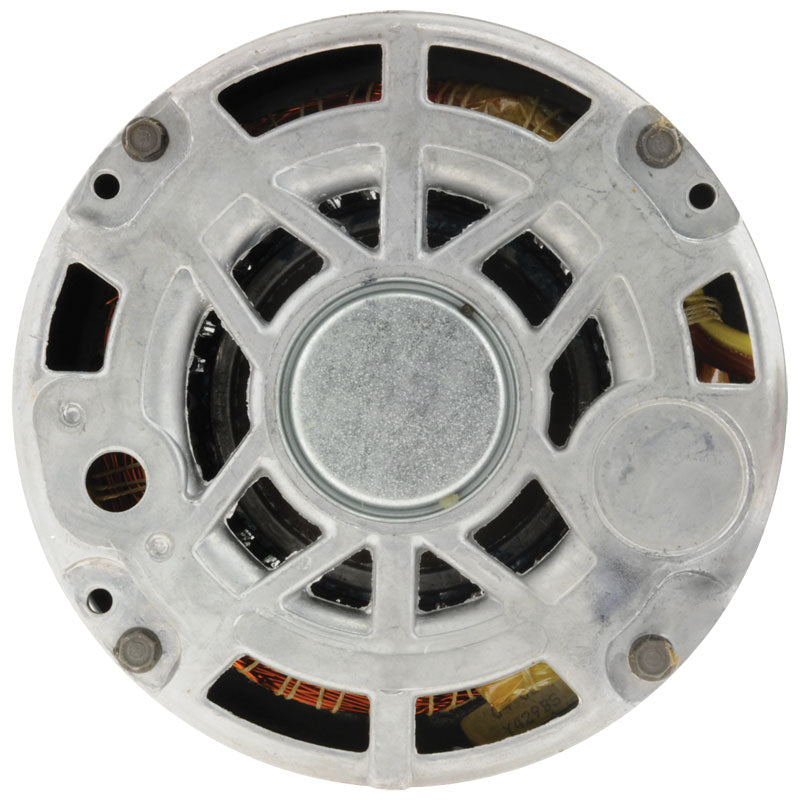

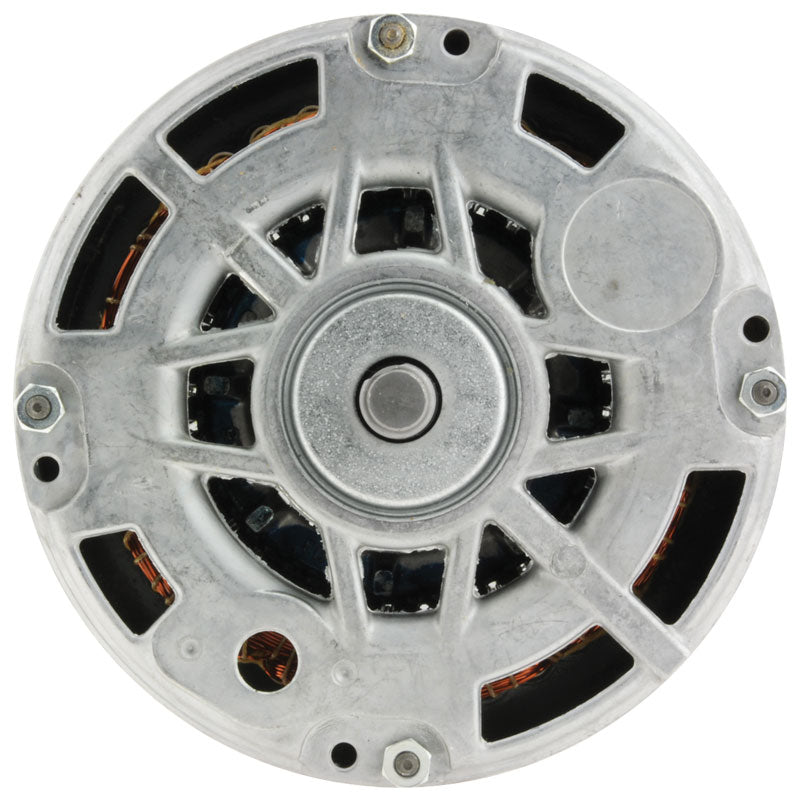

RUUD 51-101728-04 Blower Motor 1/3 Horsepower PSC

Product Description

The RUUD blower motor 51-101728-04 is designed for use in Rheem RH1P series air handlers. It is also suitable for aftermarket retrofit applications. This motor provides reliable performance with a power of one-third horsepower and features a two-speed operation with counter-clockwise rotation. It runs on 208 to 230 VAC power at a frequency of sixty Hertz.

• Motor Application: Blower PSC
• Rotation Direction: CCW
• Mounting: Shell-band

Product Highlights

This blower motor is ideal for HVAC installations requiring a dependable component for air handling systems.

Product Information

Standard Information

• Brand: Rheem-Ruud
• Motor Application: Blower PSC

Technical Specifications

• Horse Power: 1/3 hp
• Number of Speeds: 2
• High Speed (RPM): 1075 rpm
• Input Voltage: 208 to 230 VAC
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Rotation Type: CCW
• Run Capacitor (uF/V): 15/370
• Output Current: 1.9 A
• LRA at 230V (A): 3.5
• Shaft Diameter: 1/2 in
• Keyed/Flat Shaft Length: 1-1/2 in
• Overall Shaft Length: 2-1/4 in
• Shaft Size: 1/2 in Dia x 2-1/4 in L
• Motor Body Diameter: 5-5/8 in
• Motor Body Length: 5-1/4 in
• Overall Motor Length: 7-1/2 in
• Mounting Type: Shell-Band
• Frame Size: 48
• Bearing Type: Sleeve
• Drive Type: Direct
• Dimensions: 5-5/8 in Dia x 7-1/2 in L
• Suitable For Use With: Rheem RH1P Series Air Handlers
