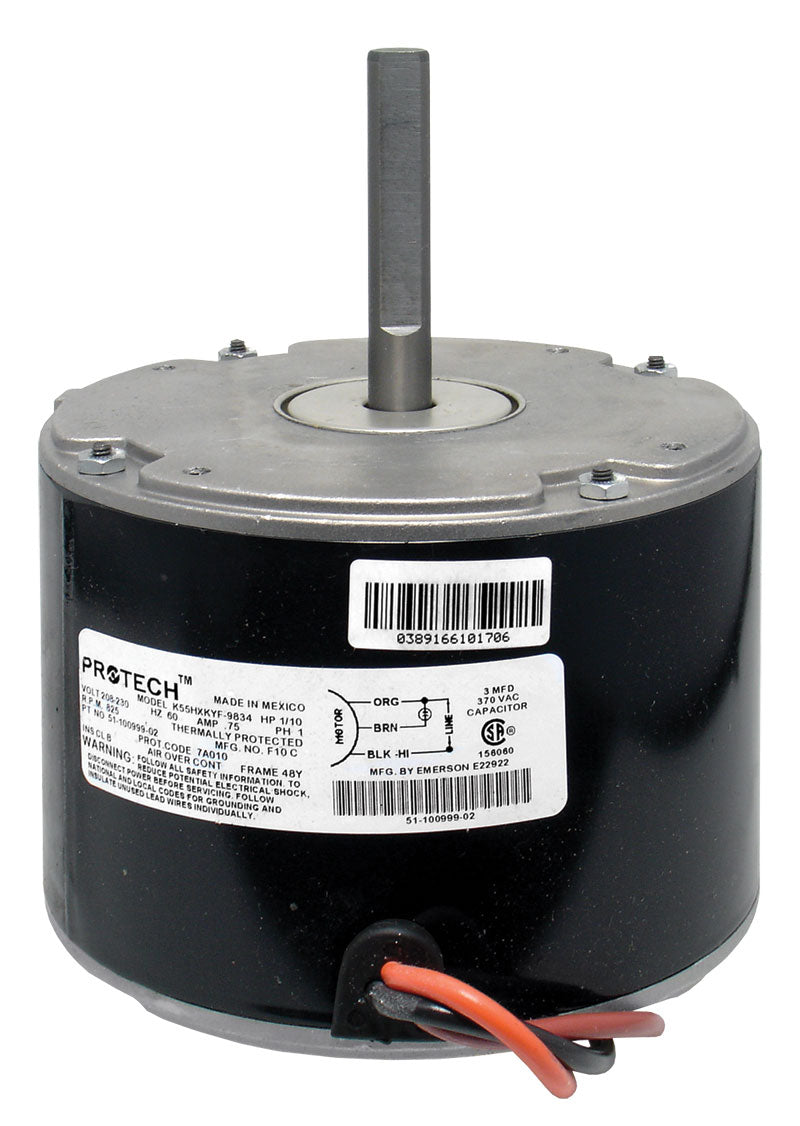

RUUD 51-100999-02 Condenser Motor 1/10 HP 825 RPM

Product Description

The RUUD 51-100999-02 is a condenser motor with a power of 1/10 horsepower and an operating speed of 825 RPM. It is suitable for condenser PSC motor applications and operates at a voltage of 208-230V on a frequency of 60Hz. This motor features a counterclockwise (CCW) rotation direction and requires a run capacitor rated at 3 microfarads and 370 volts. The design includes shell-band and end-boss mounting, as well as a sleeve bearing type for reliable performance.

• Horsepower: 1/10 HP
• Speed: 825 RPM
• Voltage: 208-230V

Product Highlights

This motor is designed for efficient operation in various HVAC systems, providing reliable performance in condenser applications.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-100999-02

Technical Specifications

• Application: Motor Condenser PSC
• Horse Power: 1/10
• Speeds: 1
• High Speed (RPM): 825
• Input Voltage: 208-230/1/60
• Rotation Direction: CCW
• Run Capacitor (uF/V): 3/370
• FLA at 230V (A): 0.75
• LRA at 230V (A): 1.19
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 2-3/16
• Overall Shaft Length (in.): 2-15/16
• Motor Body Length (in.): 4-1/16
• Overall Motor Length (in.): 7

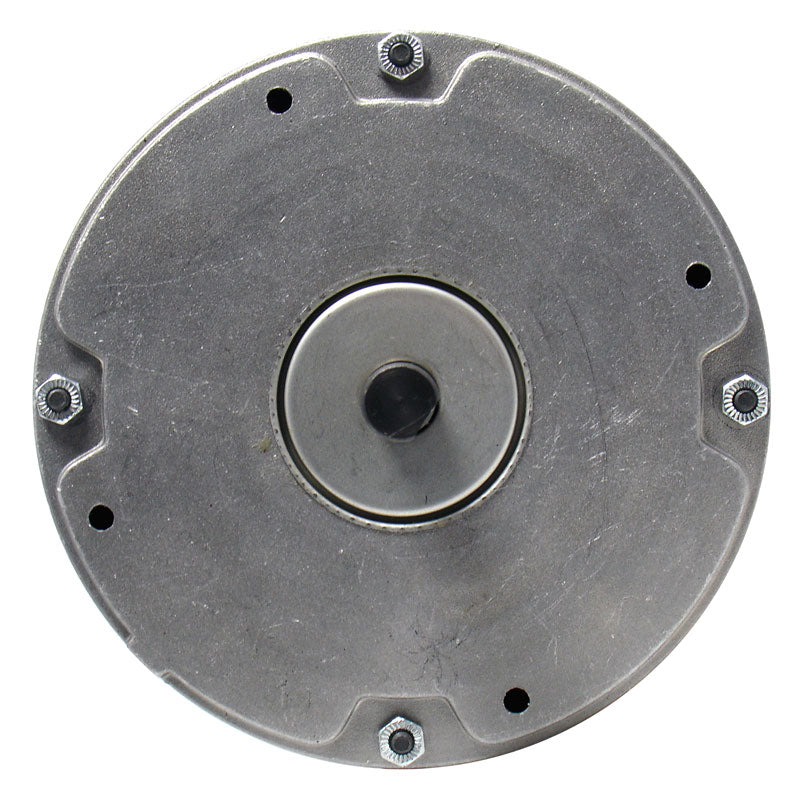

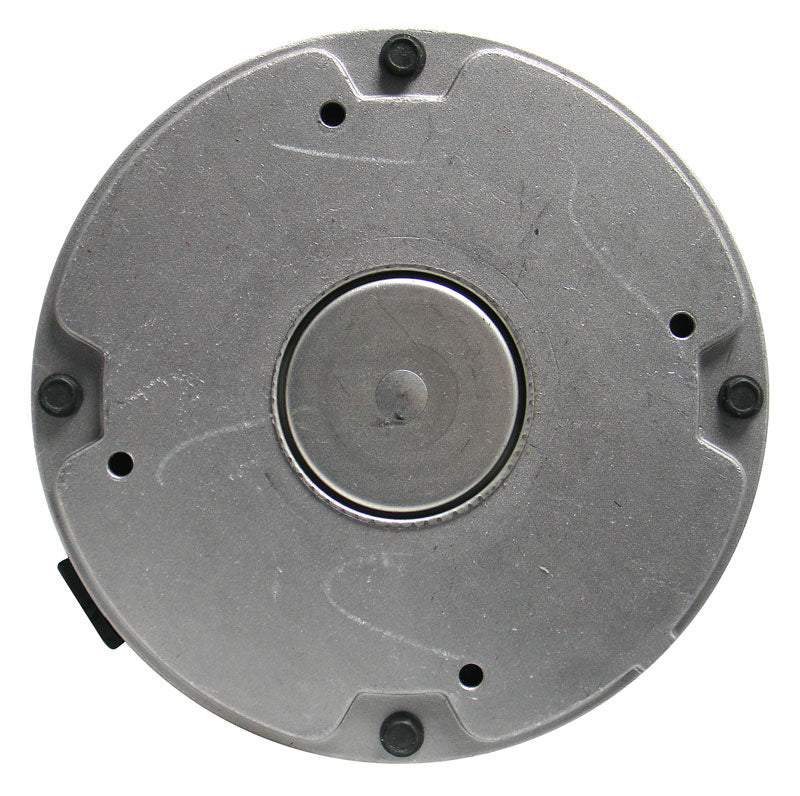

• Mounting: Shell-band/End-boss
• Frame Size: 48
• Bearing Type: Sleeve
