RUUD 51-100344-01 Blower Motor 1/6 HP 208/230V 51-100344-01

Product Description

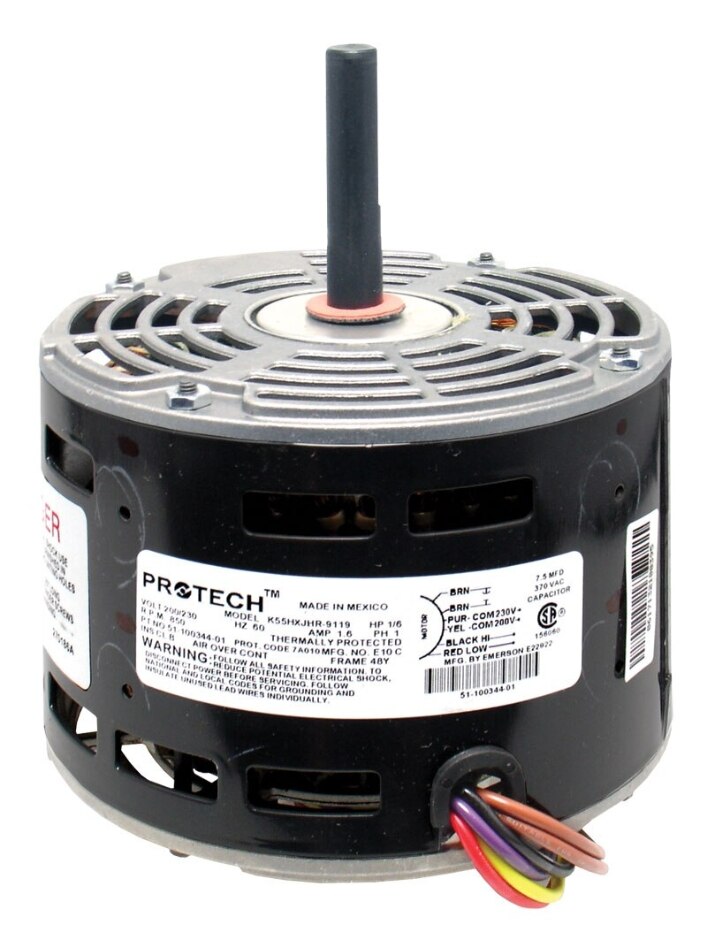

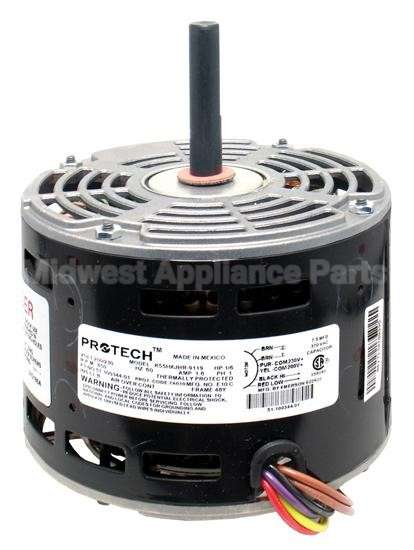

The RUUD 51-100344-01 is a blower motor suitable for HVAC systems. It operates on 208/230 volts and provides 1/6 horsepower with a speed of 825 RPM. This motor features a two-speed function and is designed to replace Rheem, Ruud, and WeatherKing models. The rotation is counter-clockwise when viewed from the shaft end.

• Operates on 208/230 VAC.
• Delivers 1/6 horsepower at 825 RPM.
• Features two-speed functionality.

Product Highlights

Designed for efficient air circulation, this motor supports various HVAC applications.

Product Information

Standard Information

• Brand: RUUD
• MPN: 51-100344-01

Technical Specifications

• Application: Blower
• Horsepower: 1/6
• Input Voltage: 208 | 230 VAC
• Frequency: 60 Hz
• Number of Phases: 1
• Number of Speeds: 2
• Full Load Amps: 1.60
• High Speed (RPM): 825
• Rotation: Counter Clockwise (CCW)
• Bearing Type: Sleeve
• Frame Size: 48
• Shaft Diameter: 0.5 inches
• Shaft Length: 2-5/8 inches
• Motor Body Diameter: 5-5/8 inches
• Motor Body Length: 4-1/16 inches
• Overall Motor Length: 6-11/16 inches
• Mounting: Shell-band | Shell-screw
• Run Capacitor: 7.5/370
• LRA at 230V: 2.40
• Keyed/Flat Shaft Length: 1-1/2 inches
