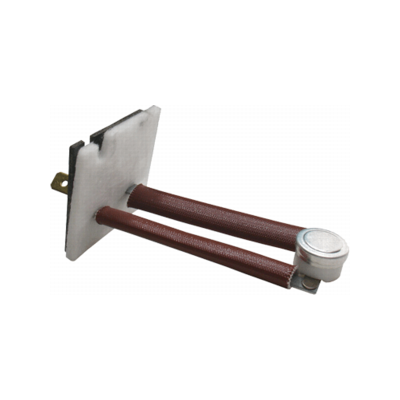

Ruud 47-25349-02 Therm-O-Disc Temperature Limit Control Switch 90° Strap Angle

Product Description

The RUUD 47-25349-02 is a Therm-O-Disc temperature limit control switch featuring a 90° board mount strap angle and auto reset. It has a maximum rating of 120/230V and a maximum current rating of 15/10A. The switch is normally closed with an enclosed disc face and is a SPST switch type.

• Temperature Switch
• 170°F Open 150°F Close 90° Brd Auto 36T
• Board mount 90° strap angle

Product Highlights

Temperature limit control switch with 120/230V max rating, 15/10A max current rating, and 90° board mount strap angle.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-25349-02

Technical Specifications

• Amperage: 15/10A
• Close: 150 deg. F
• Nominal Difference: 20 deg. F
• Open: 170 deg. F
• Poles: 1-Pole
• Series-Brand: Therm-O-Disc
• Switching: SPST
• Tolerance Close: +/-7 deg. F
• Tolerance Open: +/-5 deg. F
• Voltage: 120/230VAC
