Ruud 47-25349-01k Limit Switch

Product Description

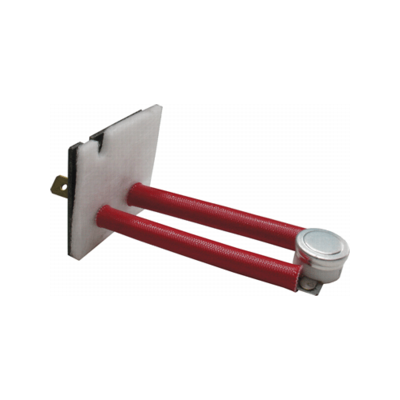

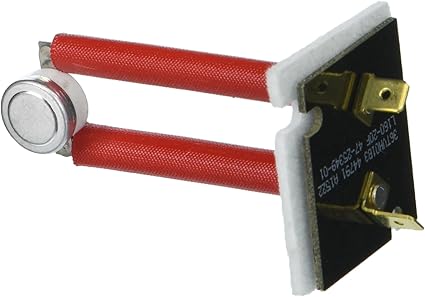

The Ruud 47-25349-01k is a limit switch for temperature control. This device features a single pole, single throw (SPST) mechanism with normally closed contacts. It resets automatically after a temperature change and includes a board mount with a 90-degree strap angle. The switch operates to open at a specific temperature and close as the temperature drops.

• SPST switch with normally closed contacts
• Automatically resets after temperature change
• Board mount compatible with a 90-degree strap angle

Product Highlights

This product is suitable for various applications, providing effective temperature management in HVAC systems.

Product Information

Standard Information

• Brand: Ruud
• Operating Voltage: 120 Volts

Technical Specifications

• Mounting Type: Board Mount
• Contact Type: Normally Closed
• Circuit Type: 1-way
• Cut-out Temperature: 160 °F
• Cut-in Temperature: 140 °F
• Amperage: 15/10 A
• Dimensions: 5.3 inches x 2.1 inches x 3.1 inches
• Material: Brass, Plastic, Copper
