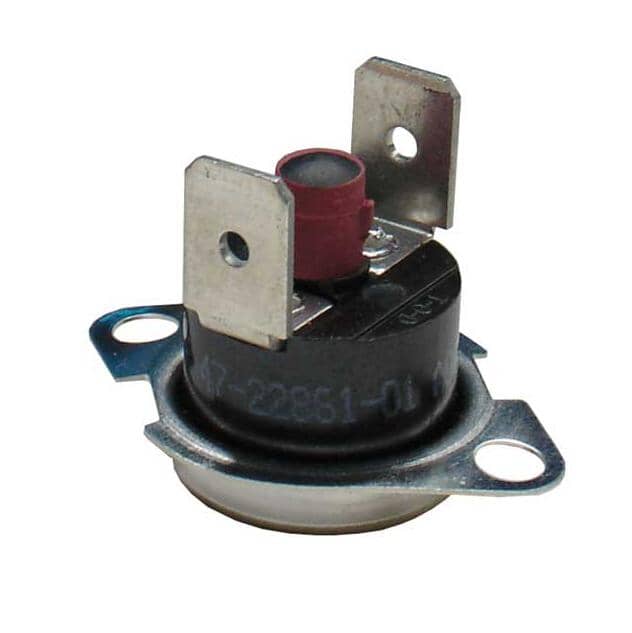

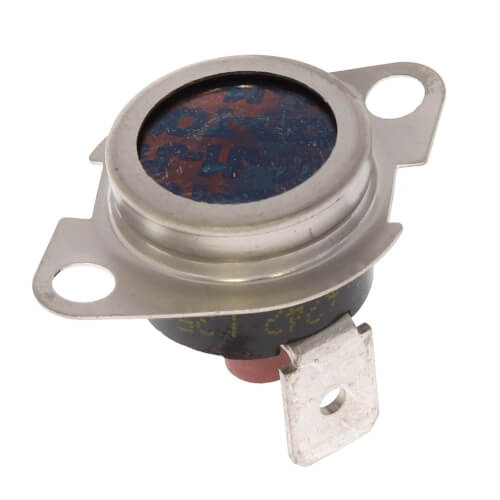

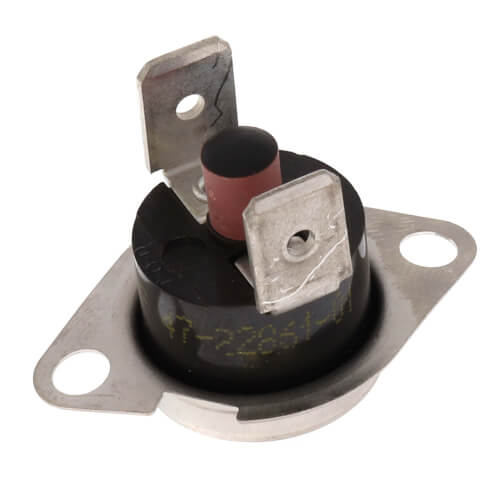

Ruud 47-22861-01 Limit Control Exposed

Product Description

The Ruud 47-22861-01 is an OEM limit control exposed. This temperature limit control switch features a manual reset, exposed disc face, and SPST switching. With a maximum voltage rating of 120/230VAC and a maximum current rating of 15/10A, it is designed for HVAC equipment. It has a 350°F open temperature.

• Genuine OEM Replacement Part
• Temperature Switch
• Normally Closed

Product Highlights

The Ruud 47-22861-01 limit control switch is designed for HVAC systems, ensuring reliable temperature regulation with its manual reset and precise switching capabilities.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-22861-01

Technical Specifications

• Manufacturer: Ruud
• Manufacturer #: 47-22861-01
• Parts Town #: RUD47-22861-01
• Units: Each
• Position: Normally Closed
• Action: SPST
• Amperage: 15/10A
• Notes: 5/32" Maximum Mounting Insertion Depth
• Open: 350 deg. F
• Poles: 1-Pole
• Series-Brand: Therm-O-Disc
• Switching: SPST
• Tolerance Open: +/-16 deg. F
• Voltage: 120/230VAC
• Manufacturer Part Number: 47-22861-01
