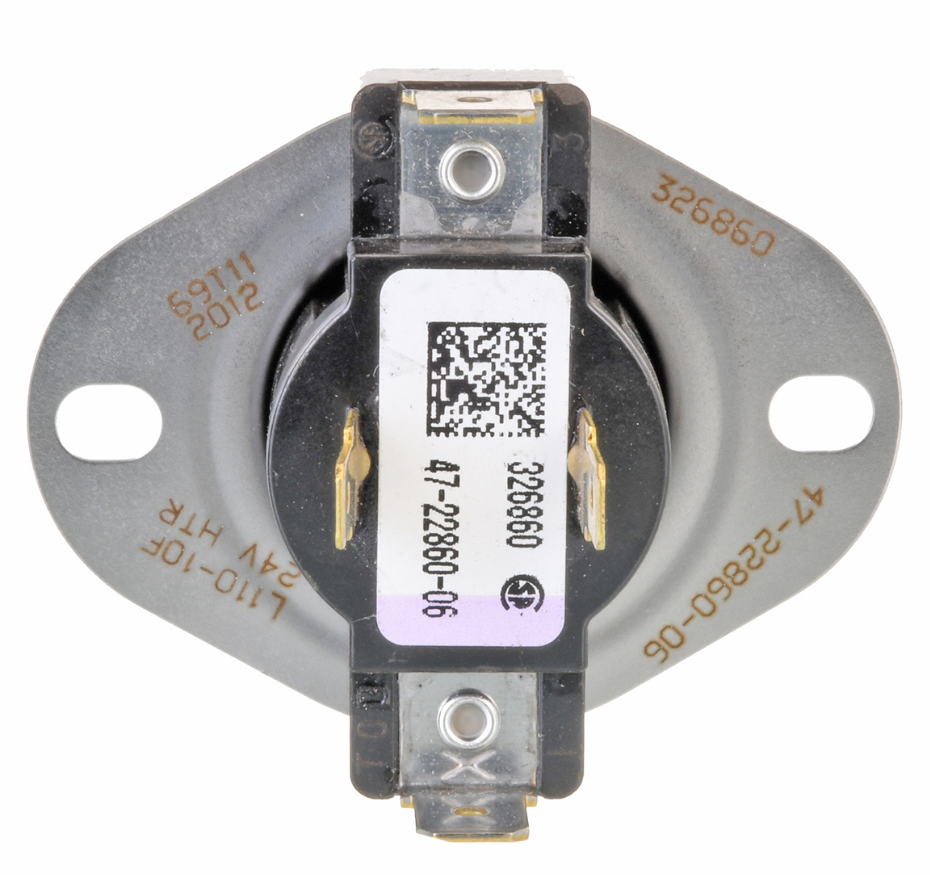

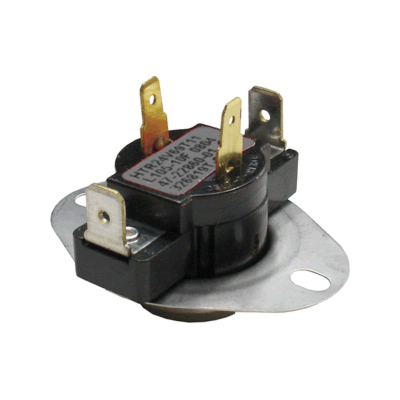

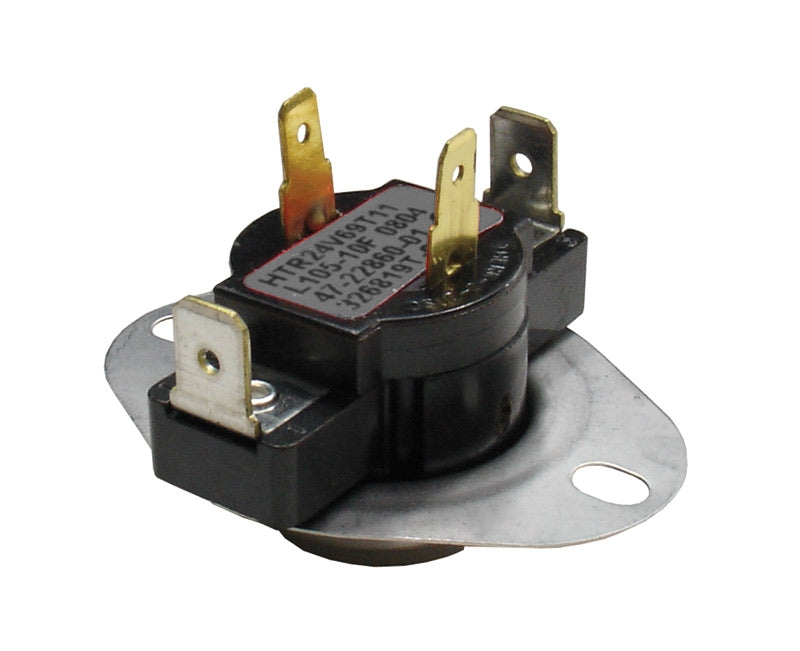

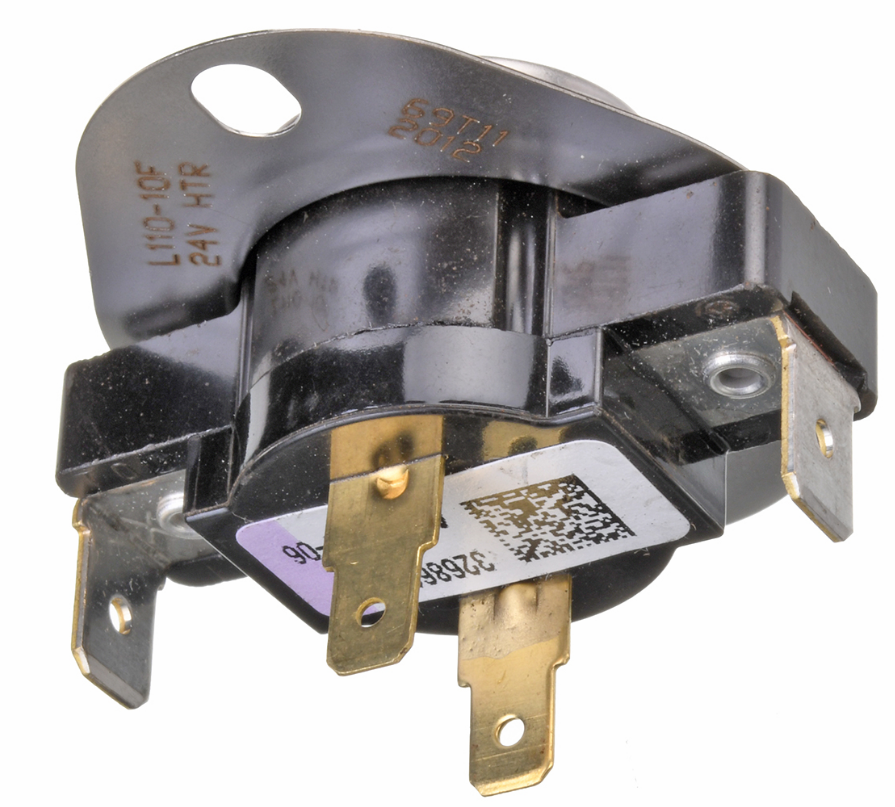

RUUD 47-22860-06 SPST Flanged Airstream Limit Control Switch

Product Description

The RUUD 47-22860-06 is a single pole, single throw (SPST) temperature limit switch designed for controlling airstream applications. This flanged limit control switch accommodates manual and auto reset functions. It ensures effective operation with a normally closed design and features three sixteenth inch quick connect terminals.

• Maximum voltage: 230V
• Maximum current: 25A

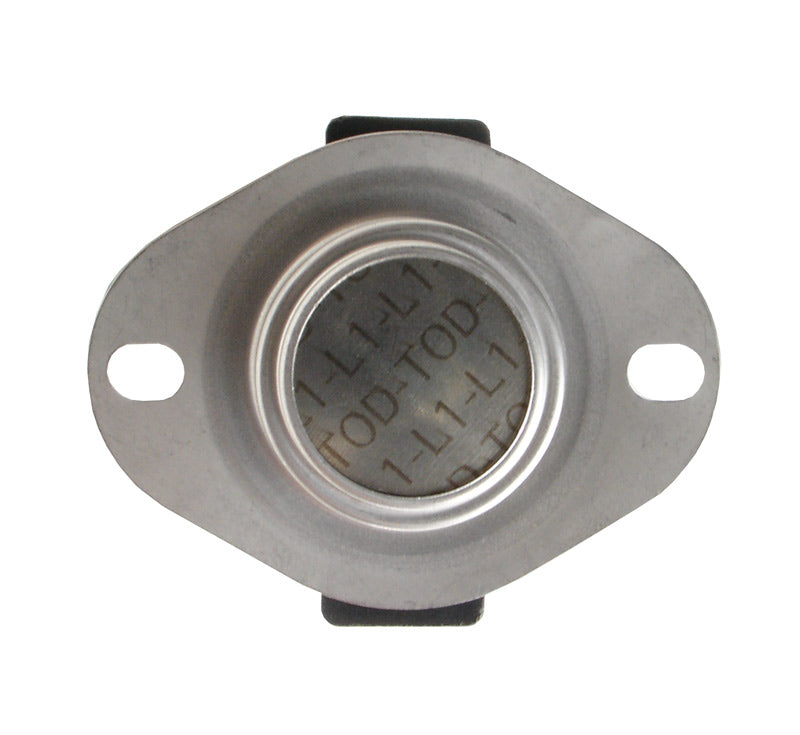

• Exposed disc face design

Product Highlights

The RUUD 47-22860-06 operates efficiently in various HVAC setups, providing reliable temperature management.

Product Information

Standard Information

• Brand: RUUD
• MPN: 47-22860-06

Technical Specifications

• Switch Type: Temperature Limit Switch
• Switching: SPST
• Reset Type: Auto Reset, Manual Reset
• Open Temperature: 110 degrees F
• Close Temperature: 100 degrees F
• Temperature Difference: 10 degrees F
• Open Temperature Tolerance: +10 degrees F/-0 degrees F
• Close Temperature Tolerance: +10 degrees F/-0 degrees F
• Poles: 1-Pole
• Series-Brand: Therm-O-Disc
• Color Code: Purple
• Mounting Type: Flanged
• Height: 1.35 inches
• Length: 3.85 inches
• Weight: 0.11 pounds
• Width: 3.50 inches
