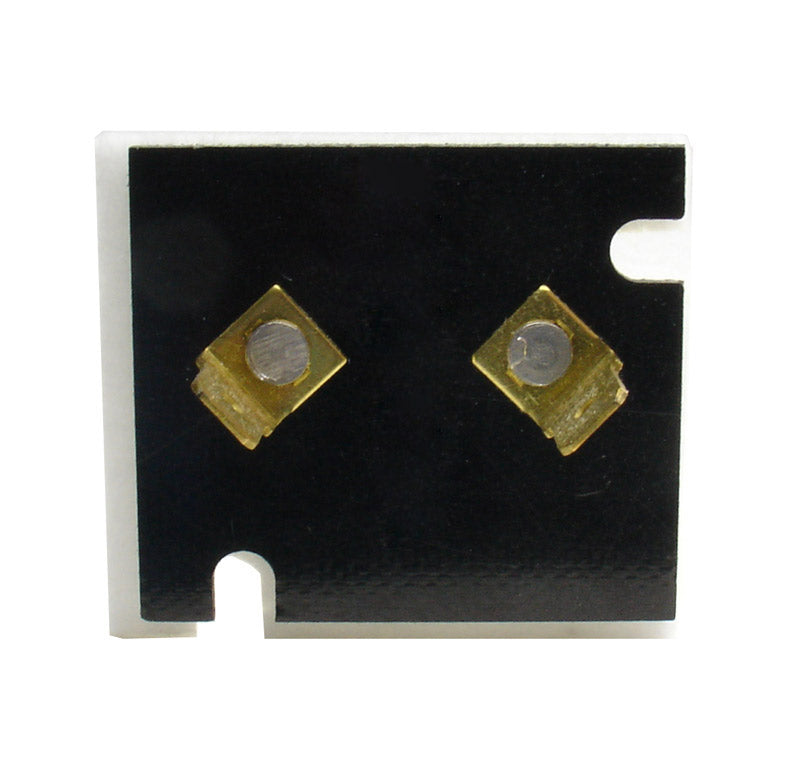

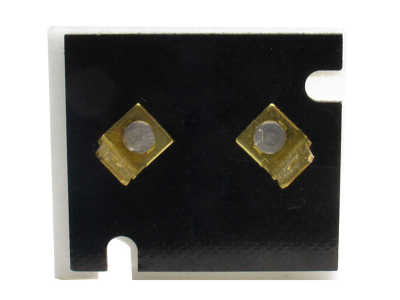

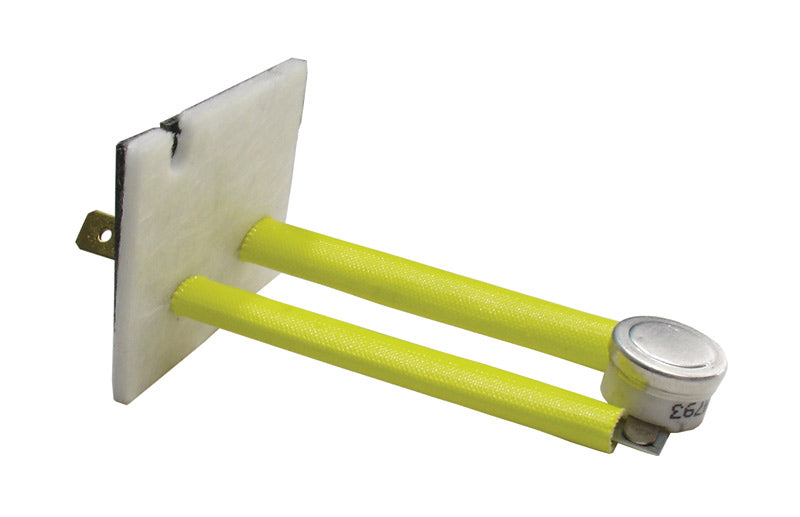

Ruud 47-104990-04 limit switch - auto reset (board mount)

Product Description

The RUUD 47-104990-04 limit switch is a SPST, auto reset, normally closed, 1-pole switch designed for gas furnaces. It is used on R801CA075417MSA/MXA/R801CA075421MSA/MXA/R801CA100521MSA/MXA/R801CA125524MSA/MXA gas furnaces. This general purpose limit switch has a 120/230 Volt AC voltage rating and a 15/10 Amp current rating.

• Auto Reset
• Board Mount
• 150 degrees F Fixed Open Temperature

Product Highlights

The RUUD 47-104990-04 is a board mounted, auto reset limit switch for temperature control in gas furnaces.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-104990-04

Technical Specifications

• Type: Limit Switch, SPST, Auto Reset, Normally Closed, 1-Pole
• Used On: R801CA075417MSA/MXA/R801CA075421MSA/MXA/R801CA100521MSA/MXA/R801CA125524MSA/MXA Gas Furnace
• Voltage Rating: 120/230 Volt AC
• Current Rating: 15/10 Amp
• Temperature Rating: 150 Deg F (Open), 130 Deg F (Close), +/-5 Deg F (Tolerance Open), +/-7 Deg F (Tolerance Close), 20 Deg F (Nominal Difference)
• Disc Face Type: Enclosed
• Mounting Type: Board
• Mounting Strap Angle: 90 Degree
• Mounting Board Dimension: 1-9/16 Inch x 1-3/4 Inch
• Connection: 3/16 Inch Quick Connect
• Application: General Purpose
• Fixed Open Temperature: 150 degrees F
• Fixed Close Temperature: 130 degrees F
• Switch Type: SPST Normally Closed Switch
• Reset Type: Auto Reset
• High Limit: 150
• Low Limit: 130
