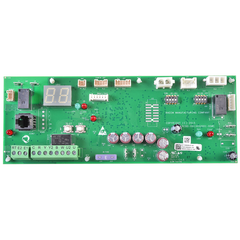

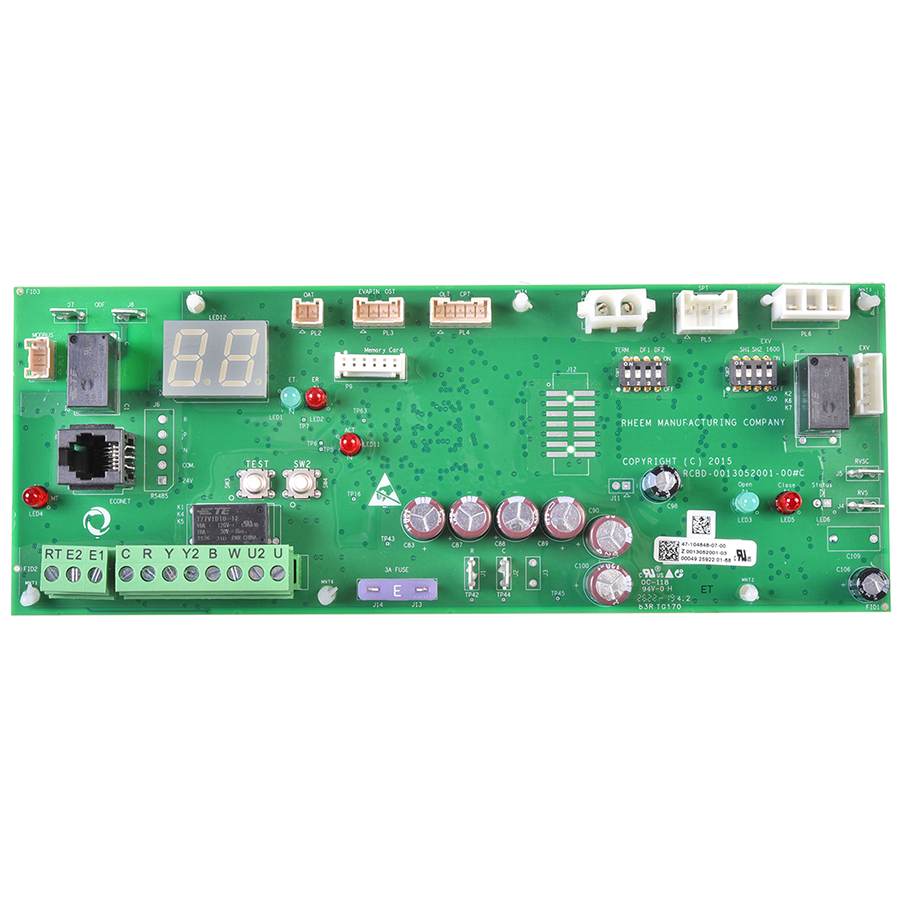

Ruud 47-104848-07 Variable Speed Control Board

Product Description

The RUUD 47-104848-07 is a variable speed control board designed to manage motor speed and system operation in compatible RUUD heating and cooling equipment. This board serves as the central logic component that coordinates blower motor output, staging, and system signaling. Licensed HVAC technicians install this board as a direct replacement when the original fails due to component damage, fault codes, or loss of motor communication. Its variable speed functionality allows the system to modulate airflow across multiple stages rather than operating at a fixed speed, which is central to the comfort and efficiency design of variable speed equipment.

This control board is applicable to variable speed residential HVAC systems where the original board has failed or requires replacement. It is suited for systems that rely on ECM blower motor control and multi-stage operation. HVAC service technicians working on RUUD-branded equipment will find this board relevant when diagnosing control failures, fault-code lockouts, or unresponsive blower operation in variable speed configurations.

Key Features

• Variable speed control logic for modulating blower motor output
• OEM-style replacement board for RUUD variable speed systems
• Supports ECM motor communication and multi-stage system operation
• Direct swap design reduces diagnostic and installation time

Compatibility

Designed as an OEM-style replacement for RUUD variable speed HVAC systems requiring control board replacement.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the unit at the disconnect box and verify zero voltage before handling the board. Transfer all wiring connections carefully, referencing the existing board layout or the unit wiring diagram located inside the equipment cabinet. Do not power the system on until all connections are seated and the cabinet panels are secured.

Technical Specifications

• Item Type: Control Board
• Application: Variable Speed

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-104848-07
