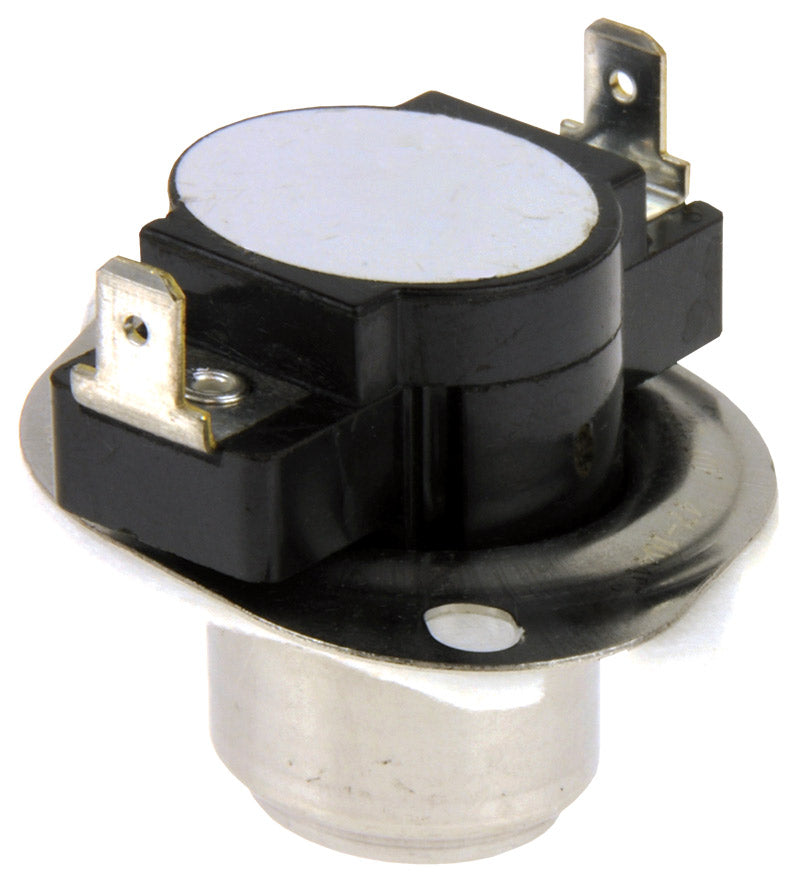

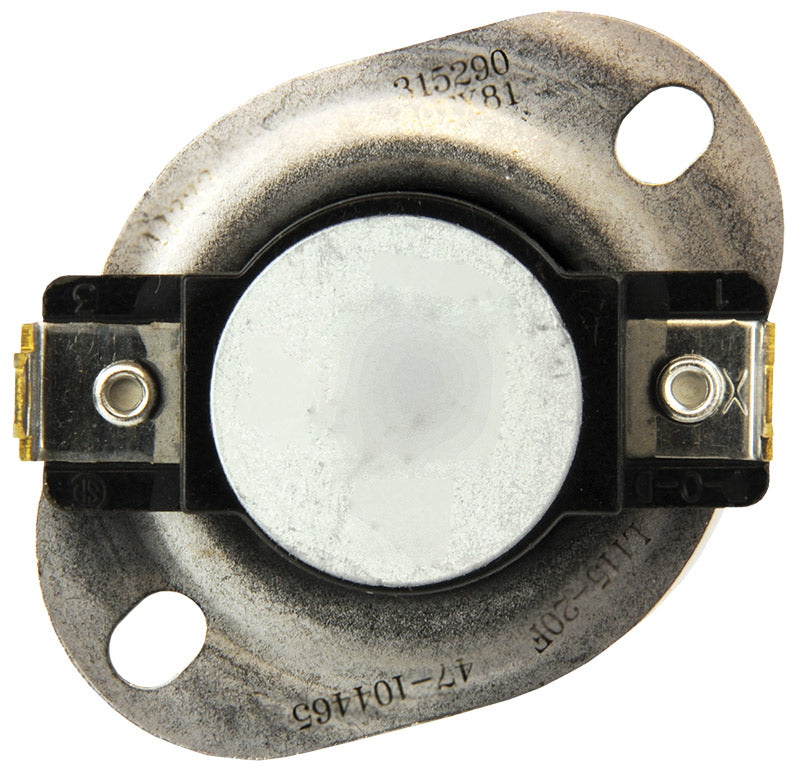

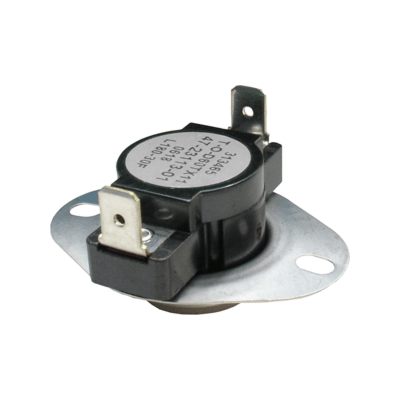

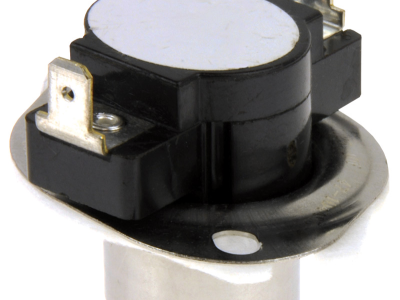

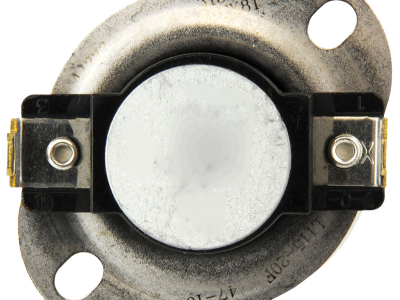

Ruud 47-104465-01 Flanged Airstream Mount Temperature Limit Switch 95 Degrees to 115 Degrees with Auto Reset

Product Description

The Ruud 47-104465-01 is a flanged airstream mount temperature limit switch with an auto reset. This switch controls temperature with a fixed close temperature of 95 degrees F and a fixed open temperature of 115 degrees F. It features SPST switching and is designed for general purpose limit switch applications. Maximum voltage: 230VAC and Maximum current: 25A.

• Flanged airstream mount
• Auto reset functionality
• SPST normally closed switch

Product Highlights

The Ruud 47-104465-01 is a temperature limit switch with flanged mounting, auto reset, and SPST switching.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-104465-01

Technical Specifications

• High Limit: 115
• Low Limit: 95
• Type: Flanged
• Approximate Height (inches): 1.30
• Approximate Length (inches): 7.10
• Approximate Width (inches): 5.85
• Fixed Close Temperature: 95 degrees F
• Fixed Open Temperature: 115 degrees F
• Switch Type: SPST Normally Closed Switch
• Reset Type: Auto Reset
• Application: General Purpose Limit Switch
• Amperage: 25A
• Nominal Difference: 20 deg. F
• Notes: 25/32" Maximum Mounting Insertion Depth
• Open: 115 deg. F
• Poles: 1-Pole
• Switching: SPST
• Tolerance Close: +/-5 deg. F
• Tolerance Open: +/-5 deg. F
• Voltage: 230VAC
