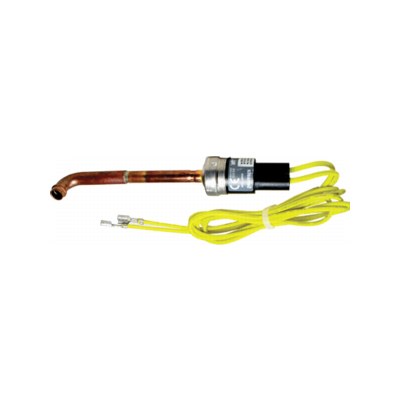

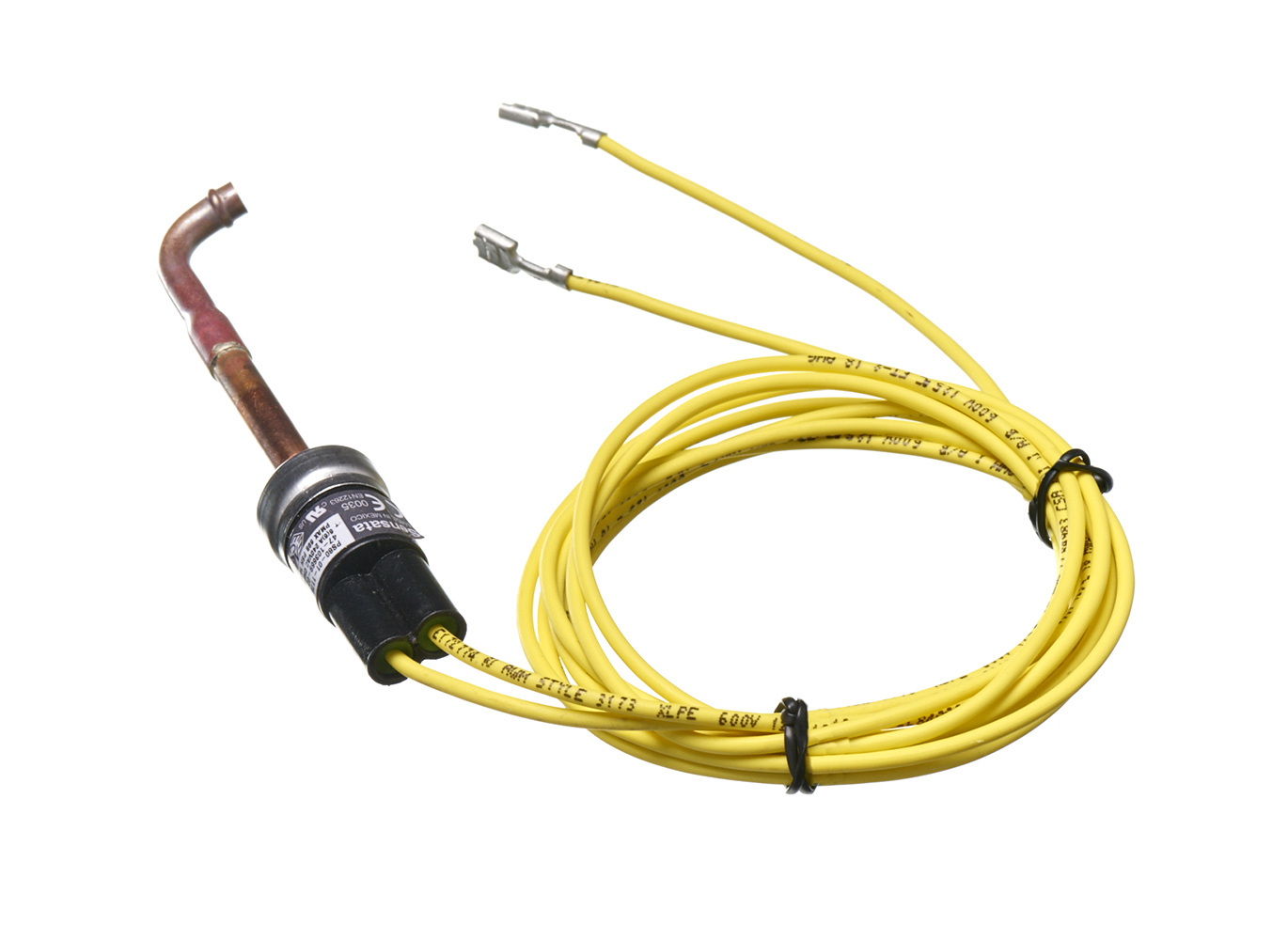

Ruud 47-103669-02 Pressure Control High 610psig Open 420psig Close Auto 90

Product Description

The Ruud 47-103669-02 is a high-pressure control designed with an auto-reset feature. It opens at 610psig and closes at 420psig with a 90-degree configuration. Features a sweat fitting and is without a cap tube. Commonly used in HVAC systems for pressure regulation and safety.

• High-pressure control with auto-reset
• Opens at 610 psig and closes at 420 psig
• Features a sweat fitting for connection

Product Highlights

High-pressure control with auto-reset functionality, ideal for HVAC systems requiring precise pressure management.

Product Information

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-103669-02

Technical Specifications

• Close: 420 psig
• Connection Ends: Sweat
• Connection Sizes: 1/4"
• Open: 610 psig
• Tolerance Close: +/-15 psig
• Tolerance Open: +/-10 psig
• High Limit: 610
• Low Limit: 420
• Type: Pressure Control
• Approximate Height (inches): 2.15
• Approximate Length (inches): 5.60
• Approximate Width (inches): 3.10
