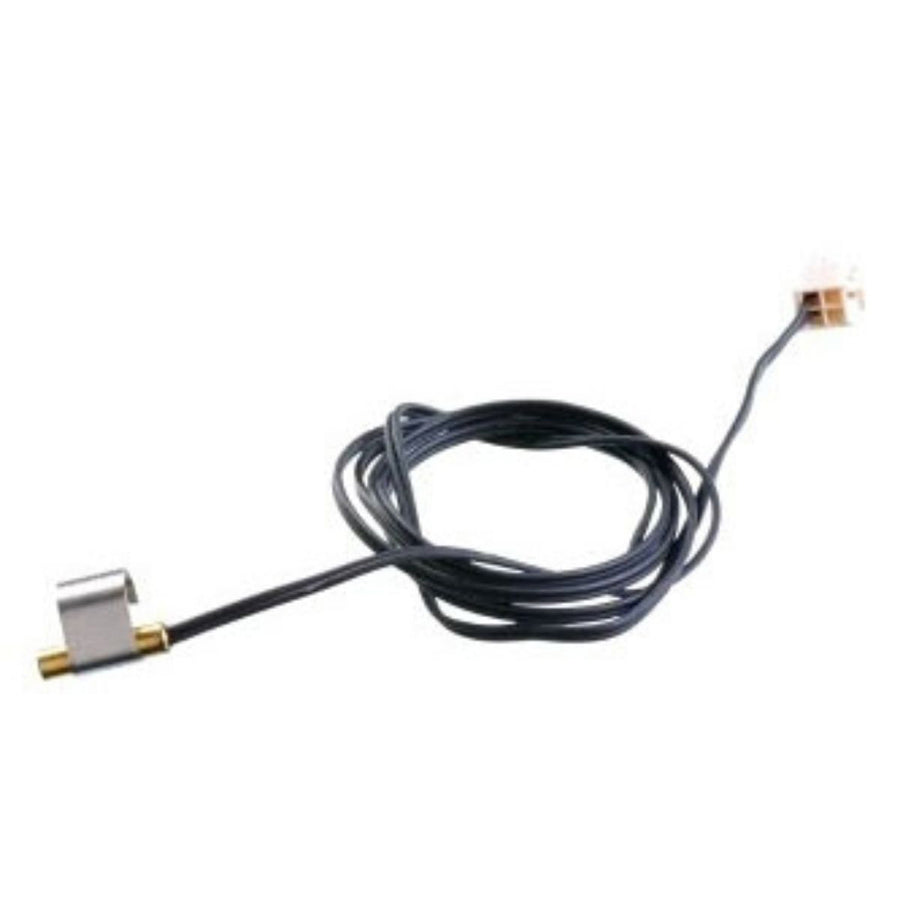

Ruud 47-102710-18 Discharge Line Thermistor RA20 RP17 RP20

Product Description

The RUUD 47-102710-18 is a discharge line thermistor sensor designed for use in residential air conditioner and heat pump systems. This sensor monitors refrigerant discharge line temperature, providing critical data to the system control board to protect the compressor and maintain efficient operation. Weighing just 0.07 pounds and measuring 3.1 inches in length, it is a compact, direct-replacement component. Installation is typically performed by a licensed HVAC technician as part of a diagnostic service call or scheduled maintenance procedure.

This discharge sensor is used on RUUD RA20, RP17, and RP20 series air conditioner and heat pump units. It is suited for residential split-system applications where accurate discharge temperature monitoring is required for system protection and performance. The sensor interfaces directly with the unit control board and is a common replacement item when fault codes indicate a discharge temperature sensor failure.

Key Features

• Direct OEM replacement discharge line thermistor for RUUD RA20, RP17, and RP20 units
• Monitors discharge line temperature to protect compressor from overtemperature conditions
• Compact form factor at 3.1 inches length and 0.07 pounds for easy handling during service
• Designed for residential split-system air conditioner and heat pump applications

Compatibility

Compatible with RUUD RA20, RP17, and RP20 series air conditioner and heat pump units as stated by the manufacturer.

Installation Notes

Installation should be performed by a licensed HVAC technician. Before replacing the sensor, disconnect power to the unit at the disconnect box and confirm the system is de-energized. Route and secure the sensor lead away from moving components and high-heat surfaces. Verify the connector seats fully and that no fault codes remain active after restoring power.

Technical Specifications

• Item Type: Discharge Line Thermistor Sensor
• Length: 3.1 inches
• Width: 2.55 inches
• Height: 2.1 inches
• Weight: 0.07 pounds

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 47-102710-18
