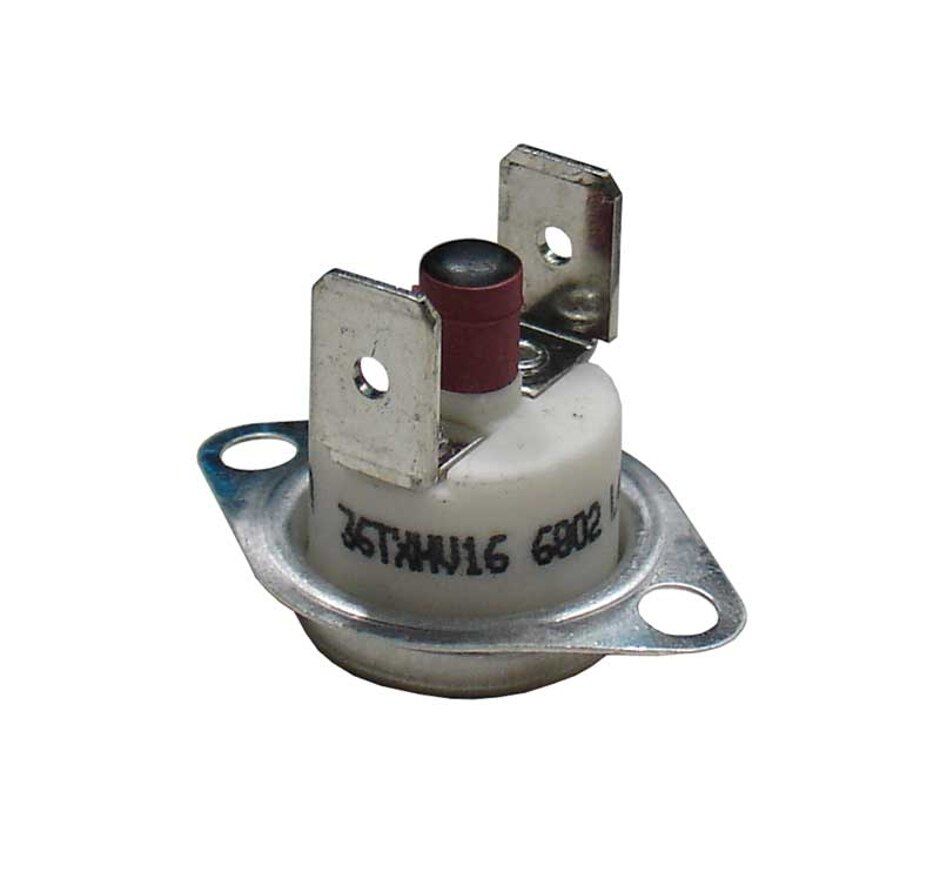

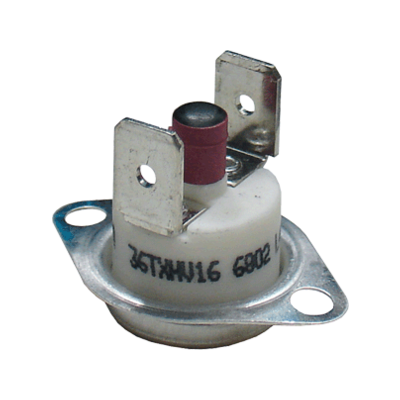

RUUD 47-100241-01k Therm-O-Disc Limit Switch

Product Description

The RUUD 47-100241-01k is a Therm-O-Disc temperature limit control switch for various applications. This switch is designed with a small flanged airstream and includes a manual reset feature. It operates as a single-pole, single-throw (SPST) switch and is normally closed. The enclosed disc face enhances its durability. It is suitable for systems with a maximum voltage of one hundred twenty or two hundred thirty VAC and a maximum current rating of fifteen or ten amps.

• Manual reset feature for reliable operation.
• SPST switching configuration.
• Normally closed for improved safety.

Product Highlights

Ideal for HVAC systems needing dependable temperature regulation.

Product Information

Standard Information

• Brand: RUUD
• Part Number: 47-100241-01k

Technical Specifications

• Switching Type: SPST
• Poles: 1-Pole
• Open Temperature: Four hundred degrees Fahrenheit
• Temperature Tolerance: +/- twenty degrees Fahrenheit
• Voltage: 120/230 VAC
• Current: 15/10 A
• Mounting Depth: Five thirty-seconds maximum insertion depth
