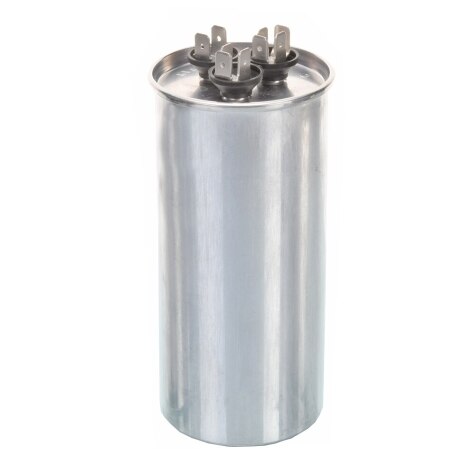

Ruud 43-TL70074-R Dual Round Capacitor 70/7.5 Mfd 440V

Product Description

The RUUD 43-TL70074-R is a dual round run capacitor rated at 70/7.5 microfarads (MFD) and 440 volts, designed for use in residential and light commercial HVAC systems. This capacitor serves two circuits simultaneously, providing starting and running support for both the compressor and the condenser fan motor in a single round housing. Licensed HVAC technicians install this part during routine maintenance calls or when a failed capacitor is confirmed through capacitance testing. Its dual-rating design eliminates the need for two separate capacitors in most split-system applications.

This capacitor is a fit for split-system air conditioners and heat pumps where the original equipment calls for a 70/7.5 MFD, 440-volt dual round capacitor. It is commonly installed in condensing units during seasonal tune-ups or emergency service calls when the compressor fails to start, the condenser fan runs slowly, or the unit trips a breaker. The round form factor is the standard configuration for most residential condensing unit cabinets.

Key Features

• Dual-rated at 70 MFD and 7.5 MFD in a single round housing
• 440-volt rating suitable for standard residential and light commercial condensing units
• Replaces two separate capacitors with one component, simplifying the repair
• Round form factor fits the standard mounting clips found in most condensing unit cabinets
• Supports both compressor and condenser fan motor circuits simultaneously

Compatibility

Designed as an OEM-style replacement dual round capacitor for residential and light commercial split-system air conditioners and heat pumps requiring a 70/7.5 MFD, 440-volt dual round capacitor.

Installation Notes

Installation must be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before handling capacitors, and verify the capacitor has fully discharged before making any contact, as capacitors can retain a dangerous charge even after power is removed. Confirm that the MFD ratings and voltage rating of the replacement match the original equipment specifications exactly before installing. Follow all applicable local electrical codes and manufacturer guidelines during replacement.

Technical Specifications

• Capacitance: 70/7.5 MFD
• Voltage Rating: 440 volts
• Configuration: Dual Round

Standard Information

• Brand: RUUD
• Manufacturer Part Number: 43-TL70074-R
