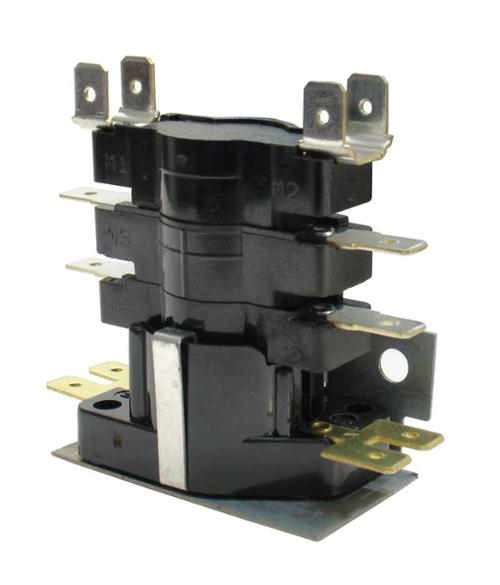

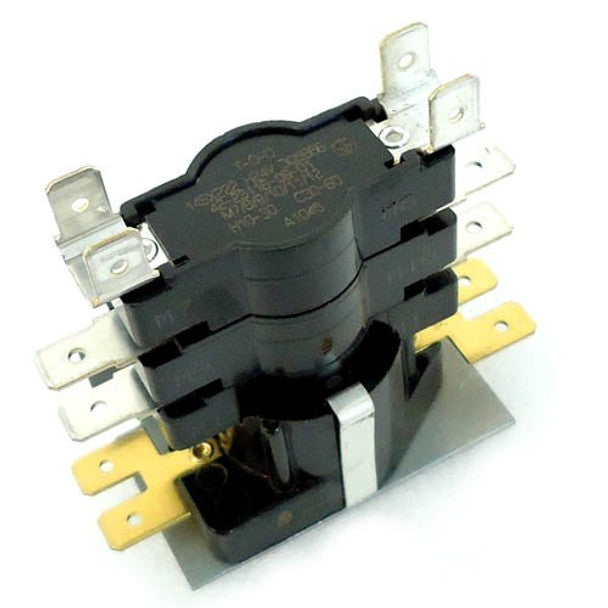

RUUD 42-23116-07 Sequencing Relay 24V 3-Pole TPST-NO

Product Description

The RUUD 42-23116-07 is a sequencing relay used for controlling operational sequences effectively. This relay features a three-pole, TPST-NO contact configuration and is built for reliable performance in various applications.

• Three-pole, TPST-NO contact configuration
• Operates on 24V AC with a maximum current of 0.55A
• Designed for installation with angle brackets and quick connects

Product Highlights

It is suitable for HVAC systems requiring precise control of heating sequences. The relay is easily installed, making it ideal for trade professionals in HVAC and electrical fields.

Product Information

Standard Information

• Manufacturer Part Number: 42-23116-07
• Brand: RUUD

Technical Specifications

• Mounting Type: Angle Bracket w/Two Mounting Holes
• Heater Voltage: 24V AC
• Heater Wattage / Power Consumption: 24VAC / 0.2A steady state / 0.55A maximum
• Contact Configuration: TPST - NO
• Number of Poles: 3
• On Timing - Pole 1: 10-30 seconds
• Off Timing - Pole 1: 90-150 seconds
• Connections: 1/4 in. Quick Connects
