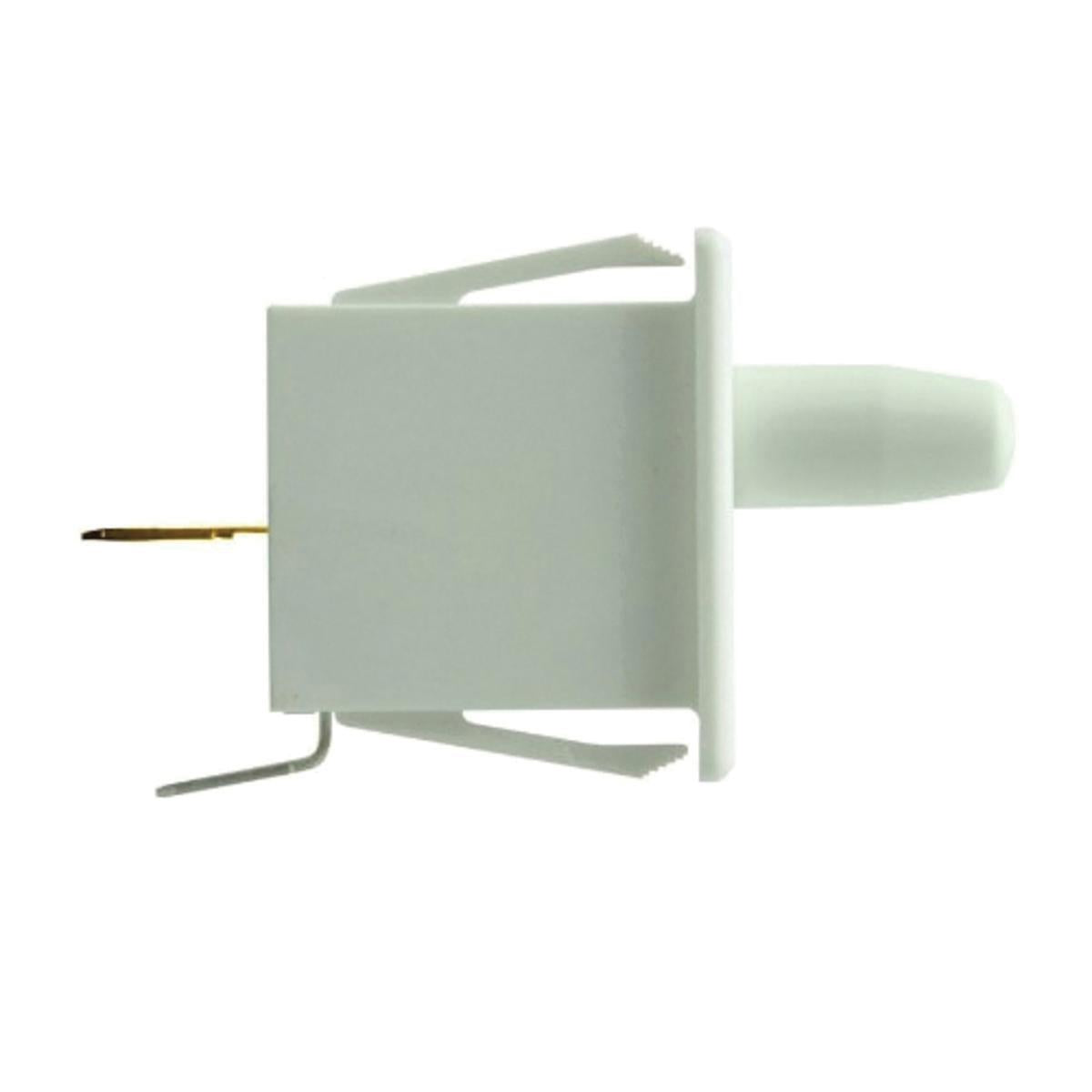

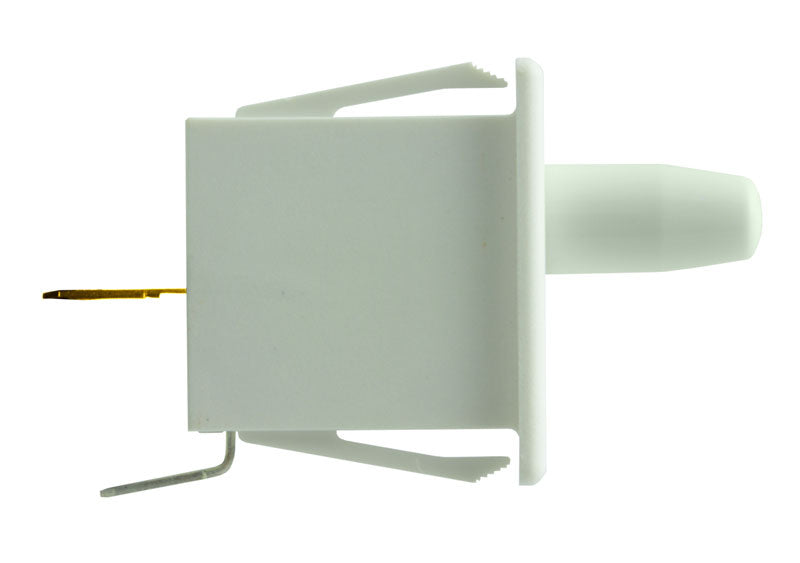

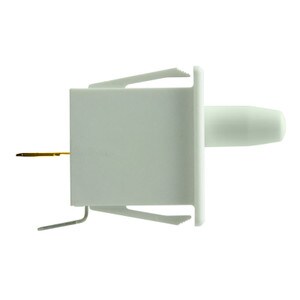

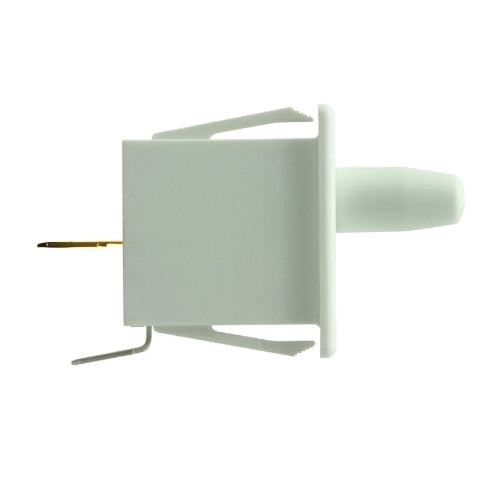

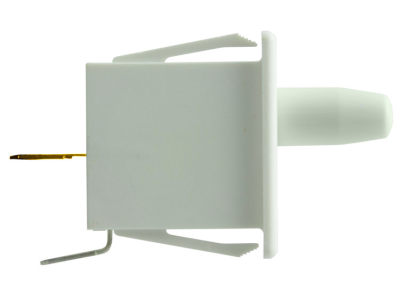

RUUD 42-21268-04 Door Switch

Product Description

The RUUD 42-21268-04 is a door switch suitable for various appliances such as air conditioners and refrigerators. It is a single pole, single throw, normally open (SPST-NO) switch. When activated by a push button, it provides a reliable connection through a 1/4 inch quick connect. This switch is designed to meet specific mounting requirements and has defined positions for reset, operating, and overtravel.

• Contact configuration: NO SPST
• Voltage rating: 120/230 V
• Current rating: 14 A

Product Highlights

This door switch is an essential component for ensuring proper functionality in various home appliances. It’s efficient for activating systems when doors are opened or closed.

Product Information

Standard Information

• Brand: RUUD
• MPN: 42-21268-04

Technical Specifications

• Contact Configuration: NO SPST
• Suitable for Use With: Air Conditioners, Refrigerators
• Voltage Rating: 120/230 V
• Amperage Rating: 14 A
• Actuation Type: Push Button
• Mounting Hole Size: 17/32 Inch Width x 1-1/8 Inch Height
• Reset Position Size: 3/4 Inch Length
• Operating Position Size: 17/32 to 21/32 Inch Length
• Overtravel Position Size: 7/32 Inch Length
• Electrical Connection: 1/4 Inch Quick Connect
• Approximate Height: 1.10 inches
• Approximate Length: 3.95 inches
• Approximate Weight: 0.04 pounds
• Approximate Width: 3.15 inches
