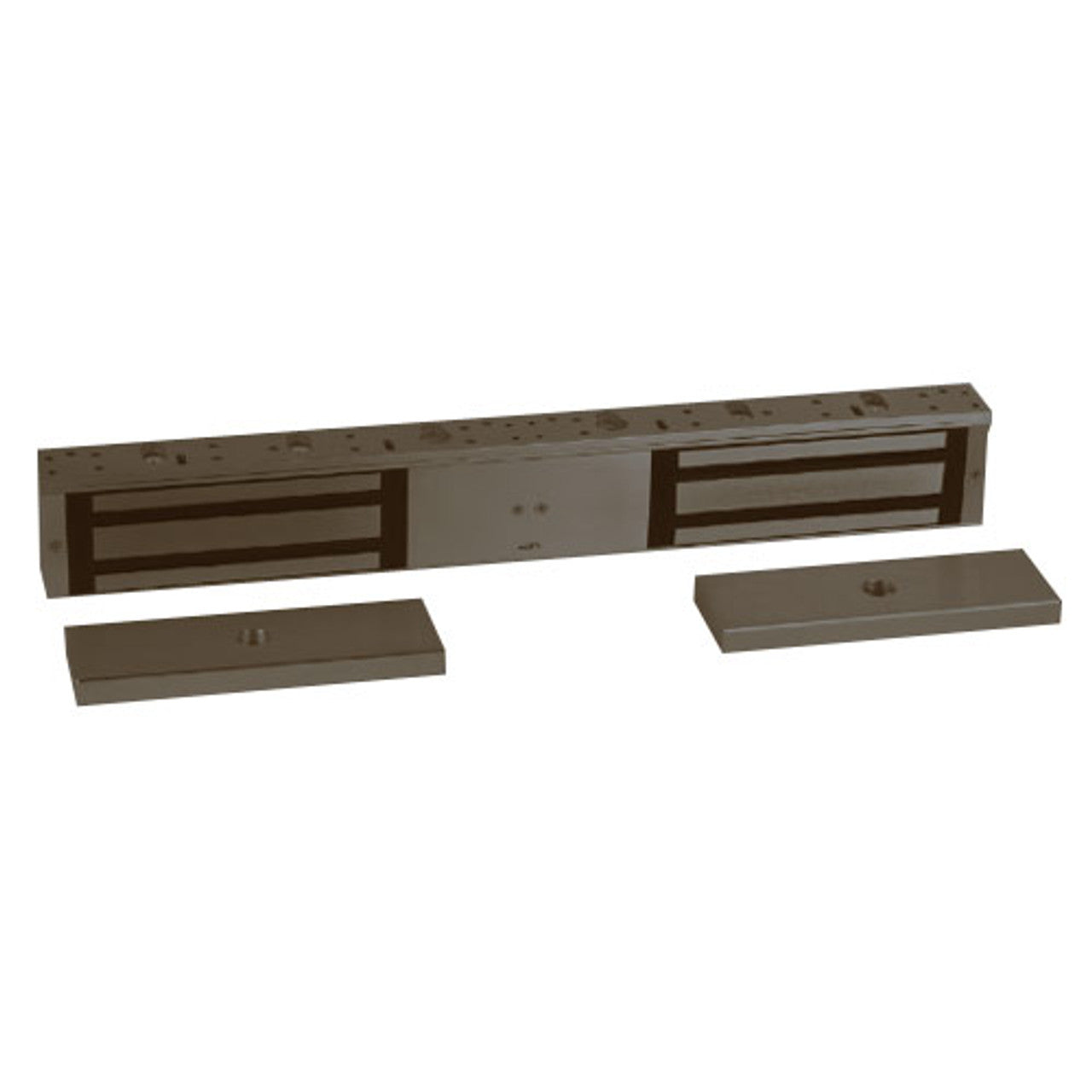

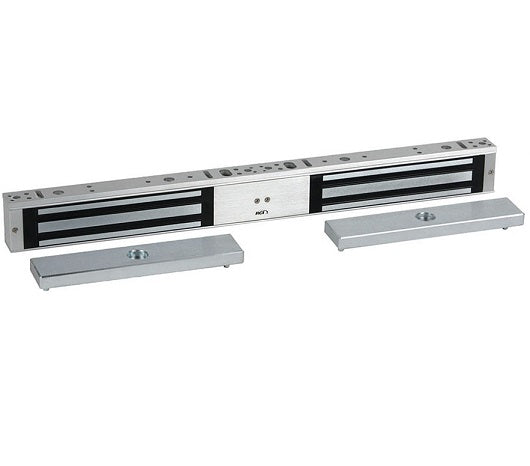

Rutherford Controls 8372-40 RCI Surface MiniMag for Double Outswinging Doors 12/24VDC

Product Description

The Rutherford Controls 8372-40 RCI Surface MiniMag is suitable for use on double outswinging doors, providing a secure locking solution. This electromagnetic lock is simple to install and compatible with most automatic door operators. Its design accommodates narrow-style aluminum doors and supports interior traffic management.

• Field selectable voltage of twelve or twenty-four volts DC.
• Includes MOV surge protection for enhanced durability.
• Designed for low energy consumption.

Product Highlights

This MiniMag is ideal for ensuring effective door security while maintaining code compliance for various entry types.

Product Information

Standard Information

• Brand: Rutherford Controls
• MPN: 8372-40

Technical Specifications

• Voltage: 12/24V DC
• Holding Force: Up to 750 lbs at each point
• Housing Dimensions: 1 inches depth x 1-7/8 inches width x 9-3/8 inches length
• Finish: Brushed anodized dark bronze
• Model Number: 8372
• Power Requirements: 24VDC / 12VDC
• Status Monitor: Optional
• UPC Code: 785943360908
• Manufacturer Warranty: Lifetime
• Alternate Codes: 142083, 8372-40, 837240
• Armature Depth: 1/2 inches
• Armature Height: 1-1/2 inches
• Armature Width: 7-1/4 inches
• Certifications: CAN/ULC-S104, CSFM California State Fire Marshal, UL 10C
• Current Draw: 0.26A at 24VDC, 0.52A at 12VDC
• Door Application: Maglocks
• Door Swing: Out Swing
• Fail Safe/Fail Secure: FS - Fail Safe
• Lock Body Depth: 1 inches
• Lock Body Height: 1-7/8 inches
• Maglock Type: Double Maglock
• Mounting: Surface
• Series: 8370
• Voltage Type: Field selectable, VDC - Direct
