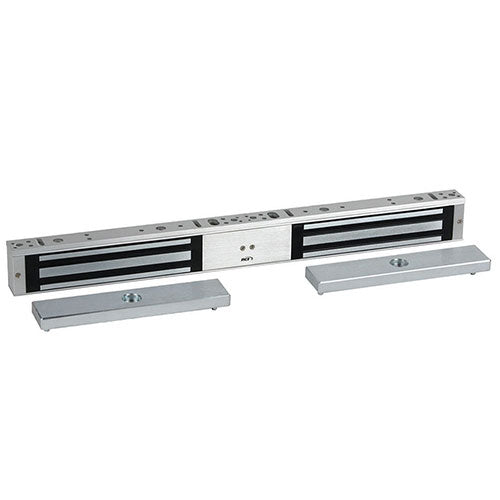

Rutherford Controls 8372-28 MiniMag Electromagnetic Lock for Double Doors

Product Description

The Rutherford Controls 8372-28 MiniMag electromagnetic lock is suitable for double outswinging doors without mullions. This lock is a solution for traffic control on narrow-style interior or perimeter doors, working seamlessly with many automatic door operators. Its width of 1-7/8 inches makes it compliant with code for undersized openings.

• Stabilizing 4 bolt mounting for secure installation
• Keyhole mounting simplifies the setup process
• Includes surge protection for reliable performance

Product Highlights

This lock provides a robust holding force and is energy efficient, making it an ideal choice for modern installations.

Product Information

Standard Information

• Brand: RCI
• Manufacturer: Rutherford Controls

Technical Specifications

• Finishes: US28 (628) Anodized Aluminum
• Energy: 520mA, Field-Selectable 12/24VDC
• Mode: Fail-safe
• Holding Force: Up to 750 lbs. per leaf
• Monitoring: Optional Door Status Sensor (DSS) / Security Condition Sensor (SCS) Available
• Fire Rating: Fire-Rated CAN/ULC S104, UL 10C 1-Hour
• Warranty: Limited Lifetime Warranty
• Part Number: 8372-28
• Style: Modern
• Finish: Brushed Anodized
• Material: Aluminum
• Shape: Rectangular
• Power Source: DC
• Item Package Quantity: 1
• Number Of Pieces: 1
• Temperature Range: 14/140 Degrees Fahrenheit
• Special Features: Energy Efficient
• Batteries Included?: No
