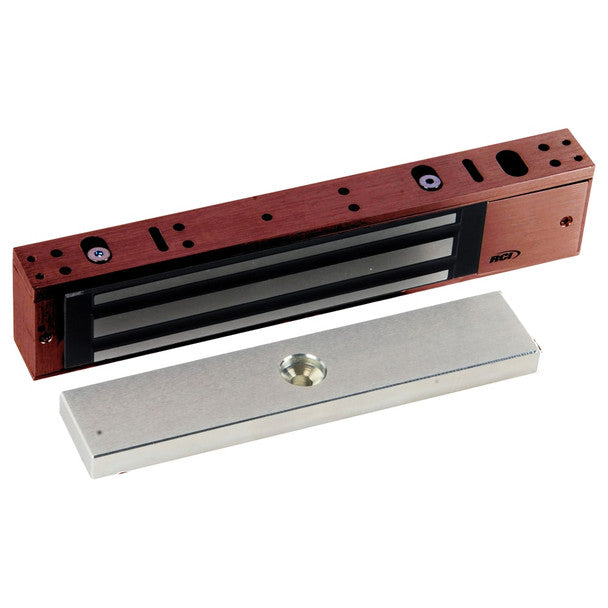

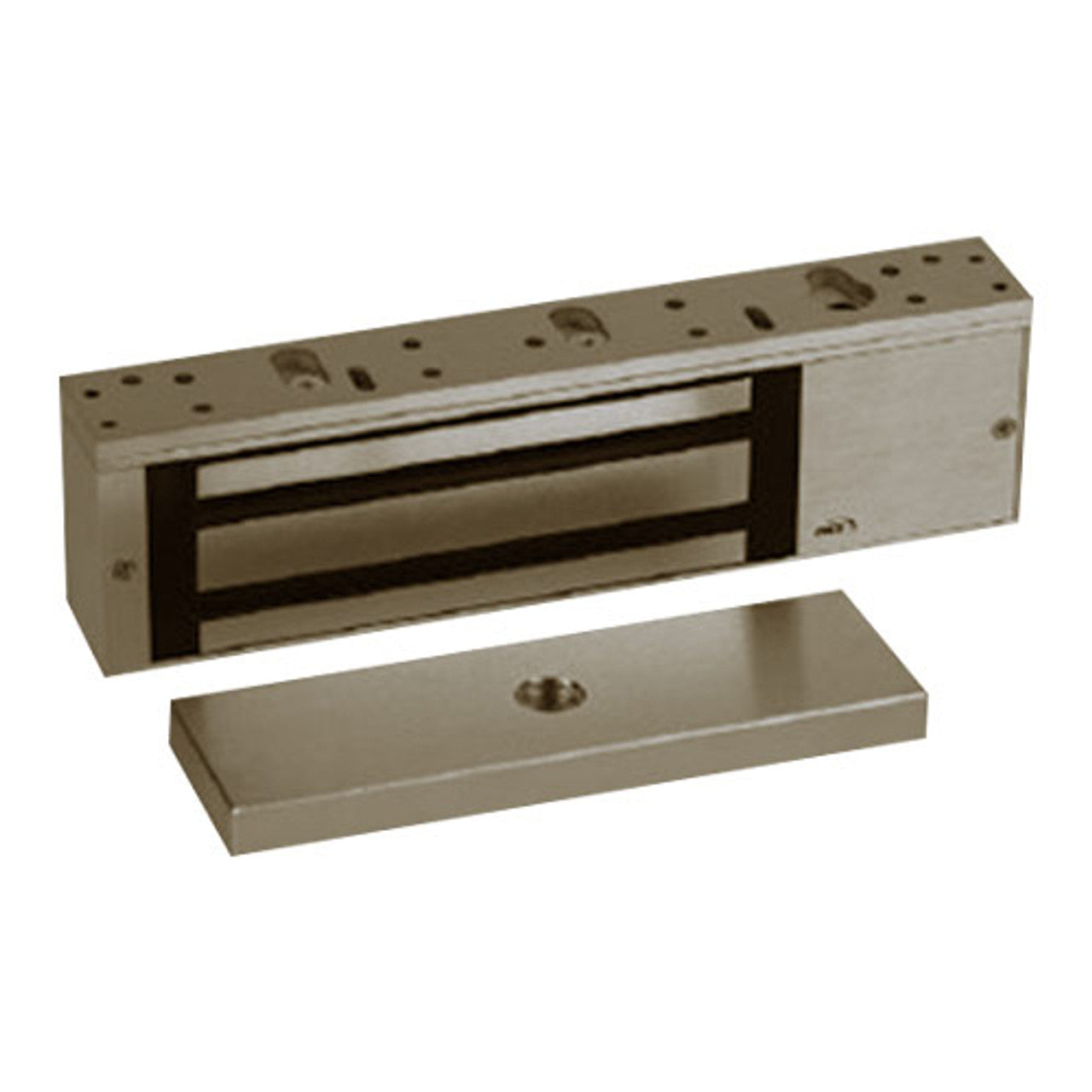

RUTHERFORD CONTROLS 8371-40 MiniMag 12/24VDC

Product Description

The RUTHERFORD CONTROLS 8371-40 is a surface minimag designed for single outswinging interior doors. This model features a low-profile design and allows for easy installation. It supports field-selectable voltage options of twelve or twenty-four volts direct current. The minimag offers substantial holding power, providing up to seven hundred fifty pounds of force. It is also UL listed for use as an auxiliary lock on fire doors with a one-hour rating.

• Surface minimag for single outswinging interior doors
• Field-selectable voltage: 12/24VDC
• Holding force: up to 750 lbs

Product Highlights

This minimag is ideal for interior applications where robust security is required.

Product Information

Standard Information

• Voltage: 12/24V DC
• Surge Protection: MOV surge protection

Technical Specifications

• Energy Consumption: Low energy consumption
• Residual Magnetism: No residual magnetism
• Armature Nut: Hardened steel armature nut
• Housing Dimensions: 1 inches deep x 1-7/8 inches wide x 9-3/8 inches long
• Holding Force: 750 lbs
• Mounting: Adjustable keyhole mounting
• Certification: cULus Listed
