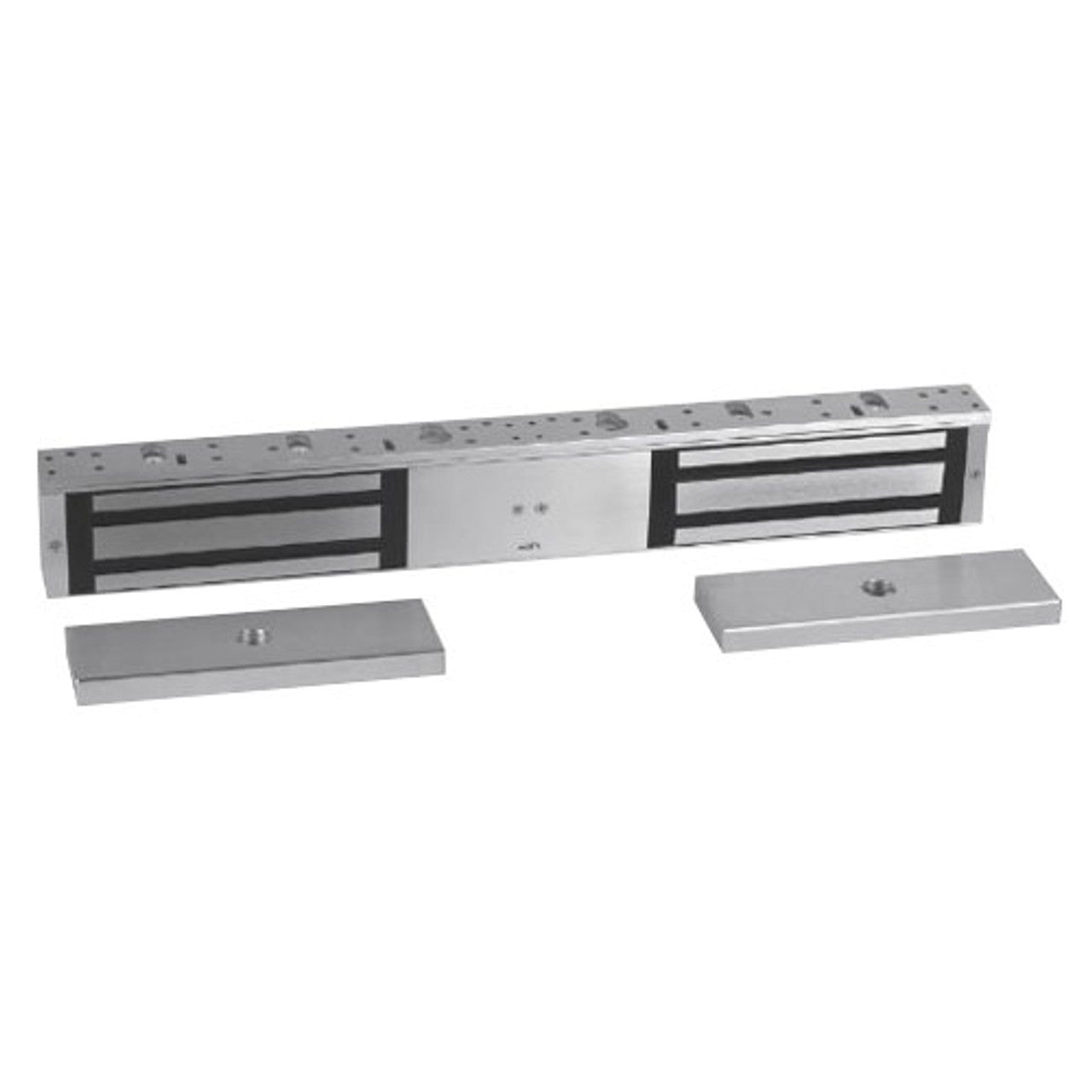

Rutherford Controls 8320-28 MultiMag Electromagnetic Lock Double Doors 12/24 VDC

Product Description

The Rutherford Controls 8320-28 MultiMag electromagnetic lock is made for double doors and enhances security with its simple installation. It is effective for both interior and perimeter doors. The keyhole mounting design allows for quick setup and the removable cavity cover provides easy access to the wiring. It operates on 12/24 VDC with auto-sensing capability.

• Keyhole mounting for easy installation.
• Built-in time delay with adjustable relock, programmable from 0 to 110 seconds.
• Convenient plug-in wiring terminals.

Product Highlights

This electromagnetic lock is designed for doors that require high security. It offers a holding force of up to 1200 lbs. and features a fail-safe mode for reliable performance.

Product Information

Standard Information

• Brand: RCI
• Manufacturer: Rutherford Controls

Technical Specifications

• Finishes: US28 (628) Anodized Aluminum
• Energy: 230mA, Auto-Sensing 12-24VDC
• Holding Force: Up to 1200 lbs.
• Fire Rating: CAN/ULC S104, UL 10C 1-1/2-Hours
• Warranty: Limited Lifetime Warranty
• Material: Aluminum
• Dimensions: Armature: 5/8 D x 2 3/8 W x 7 7/16 L inches, Lock: 1 5/8 D x 2 7/8 W x 21 L inches
• Temperature Range: 14 to 140 Degrees Fahrenheit
• Operating Temperature: -10 to 60 C (-14 to 140 F)
• Certification: UL listed
