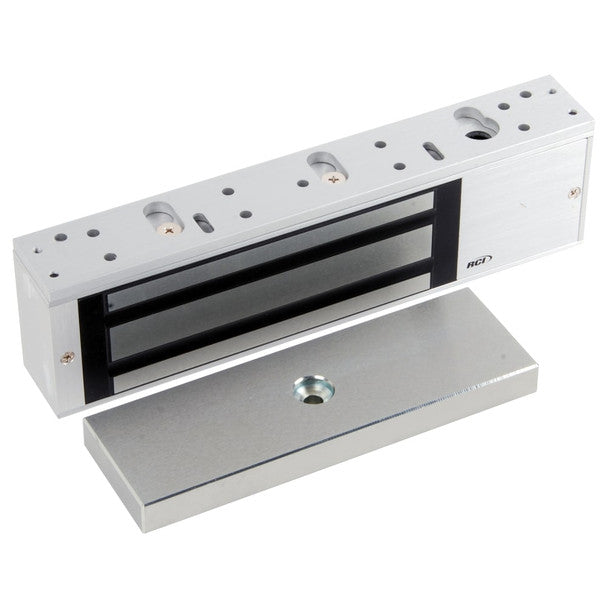

Rutherford Controls 8310-28 MultiMag Single Electromagnetic Lock 12/24 VDC (Pack of 1)

Product Description

The Rutherford Controls 8310-28 MultiMag electromagnetic lock offers robust security solutions for various entry points. This lock operates on field-selectable voltage of twelve or twenty-four VDC, providing flexibility in installation. It features an adjustable time delay, allowing for instant unlock and delayed relock for up to one hundred ten seconds. This electromagnetic lock is ideal for both single outswinging and inswinging doors. Its design includes an adjustable mounting bracket and a removable cavity cover for quick wiring access.

• Built-in time delay (instant release with adjustable relock, programmable from zero to one hundred ten seconds)
• Field selectable voltage - 12/24VDC
• 1500 pounds holding force

Product Highlights

Product Information

Standard Information

• Manufacturer: Rutherford Controls
• Part Number: 8310-28

Technical Specifications

• Finish: Brushed Anodized
• Material: Aluminum
• Shape: Rectangular
• Power Source: DC
• Installation Method: Screw-In
• Item Package Quantity: 1
• Special Features: Energy Efficient
• Batteries Required: No
• Housing Dimensions: 1-5/8 inches D x 2 -7/8 inches W x 10-1/2 inches L
• Armature Plate Dimensions: 5/8 inches D x 2-3/8 inches W x 7-7/16 inches L
• Voltage: Field selectable 12/24 VDC Tolerance ±10%
• Power/Current Requirements: Max 0.28A at 12 VDC or 24 VDC
• Certification: cULus Listed, MEA, CSFM
• Holding Force: One-point locking (up to 1500 pounds)
