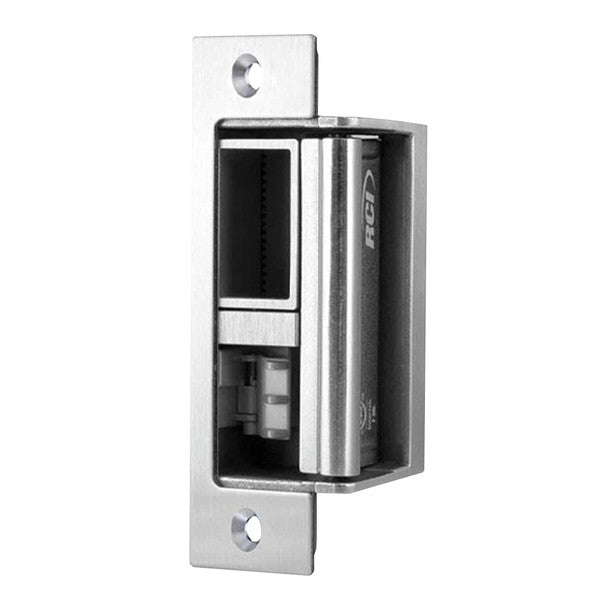

Rutherford Controls 2364-32D Electric Strike 12/24VDC 1-1/4 inchesW x 4-7/8 inchesH

Product Description

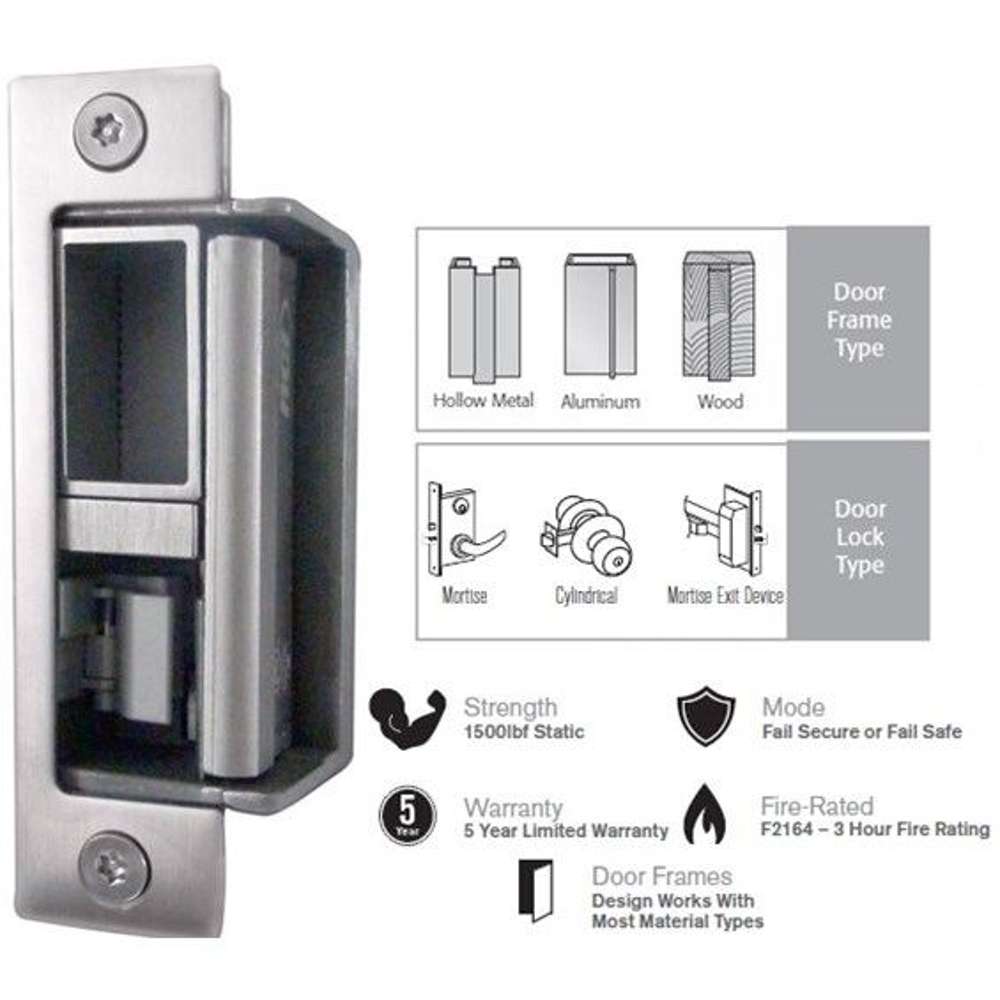

The RUTHERFORD CONTROLS 2364-32D is an electric strike designed for versatile access control applications. This unit features an adjustable deadbolt keeper and deadlatch ramp, accommodating various mortise locks and latch projections from 1/2" to 3/4". It operates on field-selectable 12/24VDC, offering 1,500lbf static strength and 70ft-lb dynamic strength. The strike supports both fail-secure and fail-safe modes, making it suitable for commercial and institutional environments requiring reliable electronic locking.

• Up to 1500lbf holding force for enhanced security.
• Adjustable deadbolt keeper and deadlatch ramp for compatibility with various locks.
• Field-selectable 12/24VDC operation.

Product Highlights

Heavy-duty electric strike with adjustable features, offering fail-safe/fail-secure operation for diverse access control needs.

Product Information

Standard Information

• Brand: RUTHERFORD CONTROLS
• Manufacturer Part Number: 2364-32D
• Country of Origin: Canada

Technical Specifications

• Input Voltage: 12/24VDC
• Holding Force: 1500lbf Static, 70ft-lb Dynamic
• Tested Cycles: Over 2 Million
• Operation Mode: Fail-Secure & Fail-Safe
• Fire Rating: Optional 3-Hour (F model)
• Latch Monitor: Accessory Available
• Faceplate Dimensions: 1-1/4"W x 4-7/8"H
• Insert Depth: 1-3/4"D
• Finish: Brushed Stainless Steel
• UL 294 Listing: Access Control Unit Accessory (6th Edition)
• UL 1034 Listing: Burglary-resistant
• UL 10C Listing: 3-hour fire-rating
• CAN/ULC S104 Listing: 3-hour fire-rating
• CSFM Listing: 3776-2275:0502 (F model)
• ANSI/BHMA Standard: A156.31, Grade 1
• Type: Electric Strike
• Keeper Type: Adjustable Deadbolt Keeper
