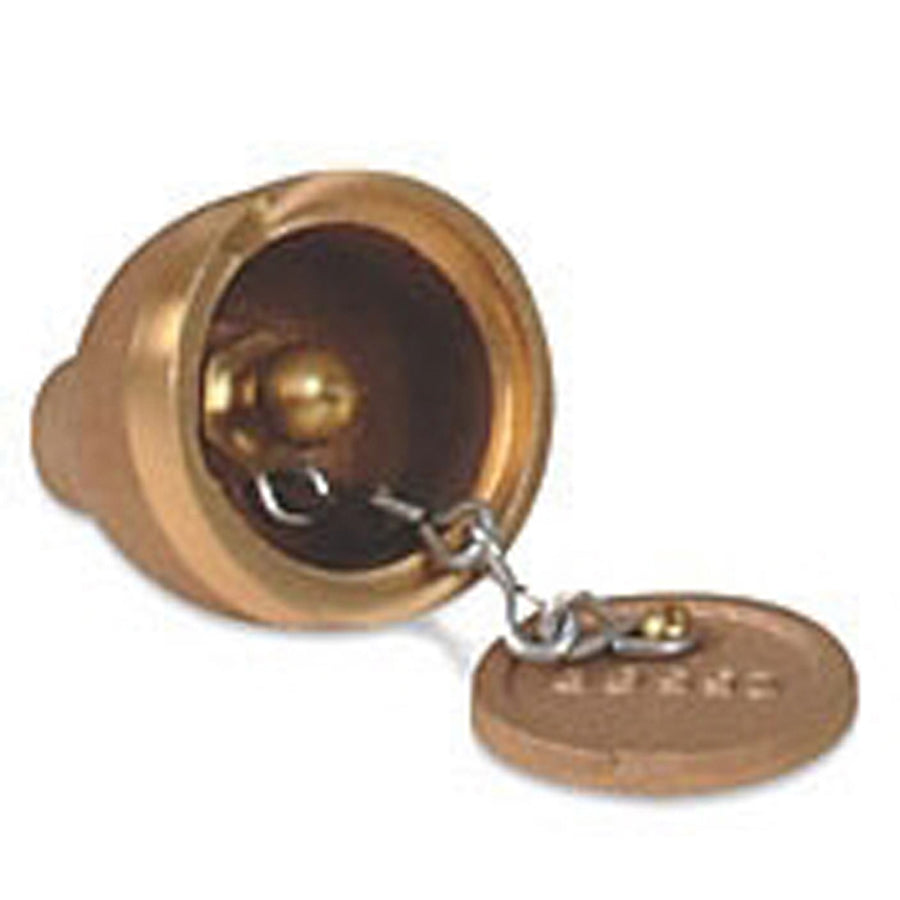

Russellstoll GC-1 Ceramic Ground Cup Gsul System

Product Description

The RUSSELLSTOLL GC-1 is a ceramic capacitor ground cup designed for use in GSUL Safe Ground Indicator systems. It serves as a high-voltage, high-current capacitor component within grounding indicator circuits, providing reliable electrical performance in demanding environments. The GC-1 features a wide tuning range and low losses, making it well-suited for systems that require precise ground indication. Self-healing capacitor construction helps maintain performance after minor dielectric stress events. Licensed electricians and electrical contractors handle installation of this type of grounding system component.

The GC-1 is intended for use within GSUL Safe Ground Indicator systems in industrial and commercial electrical applications. Its ceramic construction and high-altitude operation capability make it suitable for installations across a range of elevations and environmental conditions. The self-healing design and wide tuning range support consistent operation in variable electrical environments where grounding integrity must be continuously monitored.

Key Features

• High voltage rating for demanding grounding indicator circuit applications
• High current rating supports robust system performance
• Wide tuning range provides flexibility in GSUL system configuration
• Low-loss ceramic construction minimizes energy dissipation
• Self-healing capacitor design maintains performance after minor dielectric events
• Rated for high-altitude operation

Compatibility

Designed for use with the GSUL Safe Ground Indicator System as a direct replacement or service component ground cup capacitor.

Installation Notes

Installation of this ground cup capacitor should be performed by a licensed electrician familiar with grounding indicator systems. De-energize and lock out the circuit before removing or installing any capacitor component. Follow applicable NEC requirements for grounding and bonding when servicing GSUL system components. Inspect mounting hardware and connections for integrity before returning the system to service.

Technical Specifications

• Item Type: Ground Cup
• Height: 1.0 inches
• Length: 1.0 inches
• Width: 1.0 inches
• Weight: 1.0 pounds
• Material: Ceramic

Standard Information

• Brand: RUSSELLSTOLL
• Manufacturer Part Number: GC-1
