Trane A801X060BM4TA 80 Percent Afue Single Stage Gas Furnace 60000 Btu/h Upflow Horizontal

Product Description

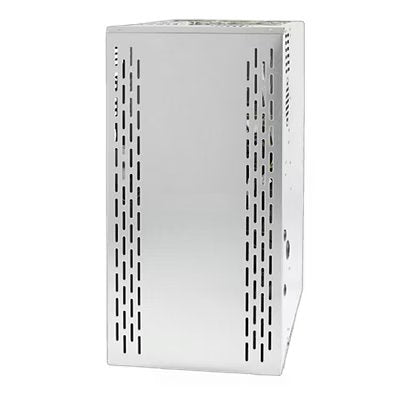

The Trane A801X060BM4TA is an 80 percent AFUE single-stage induced draft gas furnace designed for upflow and horizontal installations in residential forced-air heating systems. Rated at 60,000 BTU/h nominal heating input, this furnace delivers 48,700 BTU/h capacity output per ICS ratings, with a temperature rise range of 30 to 60 degrees F. The unit fits a 17.5-inch wide cabinet, making it suitable for closet, utility room, and alcove installations where space is a consideration. Licensed HVAC technicians handle installation and commissioning of this equipment.

The A801X060BM4TA is suited for residential applications requiring a standard-efficiency single-stage heating solution. Its upflow and horizontal airflow configuration supports a range of duct layout orientations, giving installers flexibility when retrofitting existing systems or setting up new construction. The 80 percent AFUE rating meets minimum efficiency standards in most U.S. climate zones, and the induced draft combustion design supports proper venting through B-vent or scheduled PVC vent systems where approved by local code.

Key Features

• 80 percent AFUE rating for standard-efficiency gas heating
• 60,000 BTU/h nominal heating input with 48,700 BTU/h ICS output capacity
• Single-stage heating operation for straightforward thermostat control
• Upflow and horizontal airflow configuration for installation flexibility
• 17.5-inch cabinet width suitable for space-constrained installations
• Induced draft combustion system for controlled flue gas management

Compatibility

Designed as an OEM-style replacement or direct-install furnace for residential gas heating systems requiring an 80 percent AFUE single-stage upflow or horizontal unit in a 17.5-inch cabinet form factor.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer instructions. Shut off gas supply and disconnect electrical power at the breaker before beginning any service or installation work. Venting must comply with the International Fuel Gas Code (IFGC) and local authority having jurisdiction requirements for induced draft appliances. Do not alter the factory flue or gas train configuration without consulting the manufacturer documentation.

Technical Specifications

• Heating Input: 60,000 BTU/h
• Heating Capacity (ICS): 48,700 BTU/h
• AFUE: 80 percent
• Heating Stages: Single Stage
• Airflow Configuration: Upflow / Horizontal
• Cabinet Width: 17.5 inches
• Temperature Rise Range: 30 to 60 degrees F
• Combustion System: Induced Draft

Standard Information

• Brand: Trane
• Manufacturer Part Number: A801X060BM4TA
